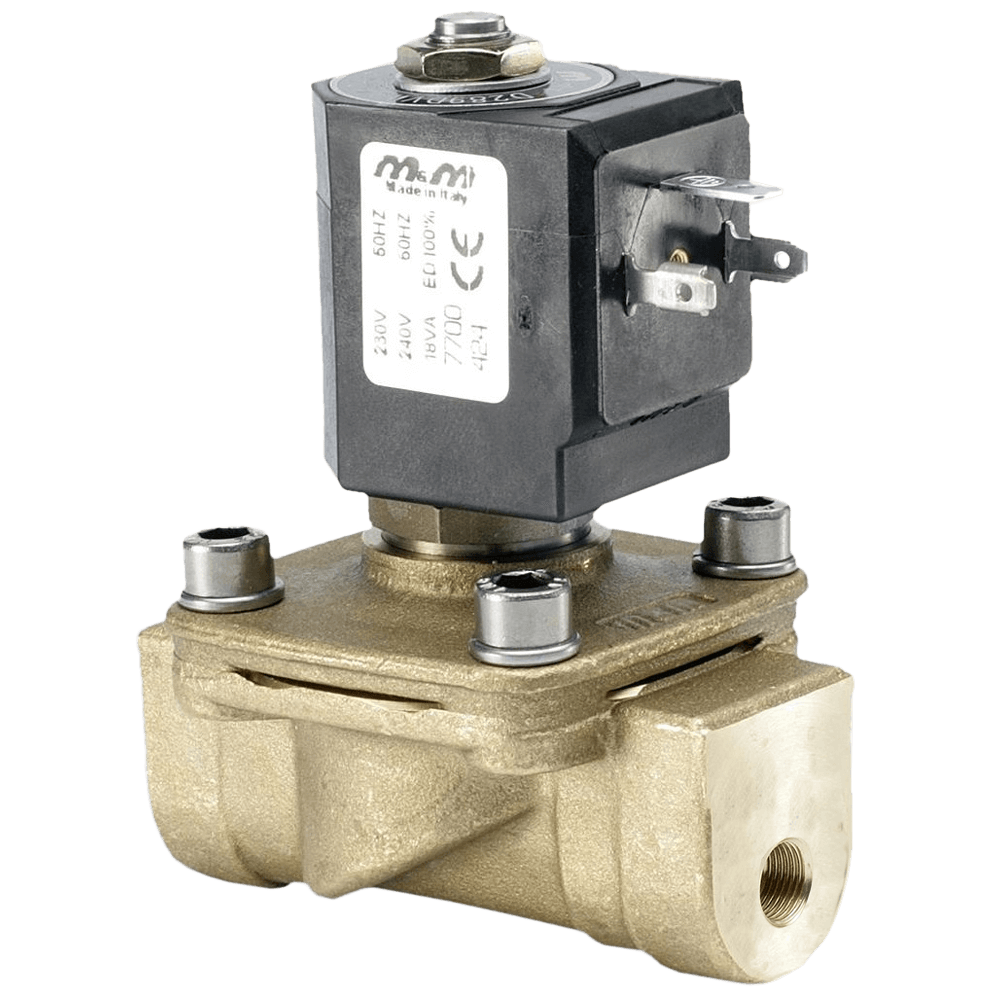

D187-D188-D189-D190-D192-D293 2/2-Way Operated Valve

Brand: M&M International
Media: Water, Oil, Air
Media Temperature: -10° to 90° C (14° to 194° F)
Ambient temperature: -10° to 50° C (14° to 122° F)
Body Material: Brass (CW617N EN 12165)
Operator Material: Stainless Steel
Operator Seal Material: FKM
Main Seal and Diaphragm Material: NBR
Protection Class: IP 65 (with Connector and Gasket)
show more
Media: Water, Oil, Air
Media Temperature: -10° to 90° C (14° to 194° F)
Ambient temperature: -10° to 50° C (14° to 122° F)
Body Material: Brass (CW617N EN 12165)
Operator Material: Stainless Steel
Operator Seal Material: FKM
Main Seal and Diaphragm Material: NBR
Protection Class: IP 65 (with Connector and Gasket)

Specifications

Ambient Temperature Range

  • -10° to 50° C (14° to 122° F)

Approvals & Certifications

  • CE

BSP Connection

  • G 1" Female
  • G 1/2" Female
  • G 1/4" Female
  • G 3/4" Female
  • G 3/8" Female

Enclosure, Body Material

  • Brass (CW617N EN 12165)

Environmental Protection

  • IP65 (with Connector & Gasket)

Flow Rate

  • 50 to 140 L/minute (Kvs)

Materials of Construction

  • Operator: Stainless Steel

Media

  • Air
  • Oil
  • Water

Power Requirement

  • Coil: 110-240 Vac, 50/60 Hz
  • Coil: 12-230 Vdc
  • Coil: 24 Vac, 50/60 Hz

Process Temperature

  • -10° to 90° C (14° to 194° F)

Seat / Seal Material

  • Main Seal Material: NBR
  • Operator Seal Material: FKM
  • Seal: EPDM
