1600 Series Pilot-Operated

Brand: Midland-ACS
A range of 3/2 and 5/2 pilot operated spool valves in stainless steel for use on gases.
Features
  • Specifically Designed for Severe Environments
  • 3/2 and 5/2 Versions
  • Ambient Temperature Range -20° to 180º C (-4° to 356º F)
  • 316L Stainless Steel Construction
  • Designed for Actuator Control
show more
A range of 3/2 and 5/2 pilot operated spool valves in stainless steel for use on gases.
Features
  • Specifically Designed for Severe Environments
  • 3/2 and 5/2 Versions
  • Ambient Temperature Range -20° to 180º C (-4° to 356º F)
  • 316L Stainless Steel Construction
  • Designed for Actuator Control

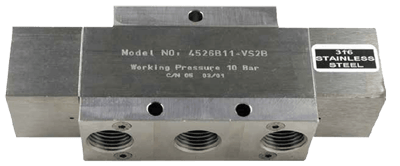

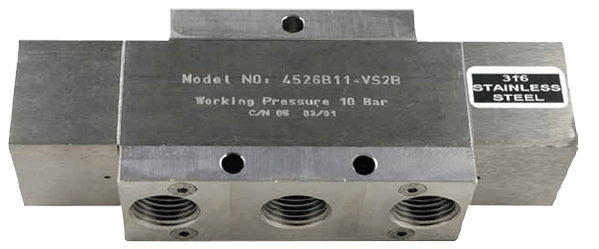

4526B33-VS2B7D
MIDLANDS 1600 Spool Valve, 5/2 Range, Hazardous Area, SST, ATEX, UL Listed CSA Approval View More
  • Specifically Designed for Severe Environments
  • Minimum Working Pressure: 3 Bar (43.5 psi)
  • Maximum Working Pressure: 12 Bar (174 psi)
  • 5/2 Range
  • Ambient Temperature Range -20° to 180º C (-4° to 356º F)
  • 3.5 CV
  • 316L Stainless Steel Construction
  • Designed for Actuator Control
  • 24 VDC
  • Type of Protection: Exd IIC T4
    • Approved Area - Zones 1 and 2
    • Degree of Protection - IP67 (NEMA Equivalent 6)
    • Cable Entry - M20 x 1.5
    • Power Consumption AC/DC - 5 W. 22.4 VA (110 VAC) 23.4 VA (120 VAC)
    • Max Admissable Surface Temp - 135° C (275° F)
    • Max Ambient Temp - 80° C (176° F)
    • Max Fluid Temp - 80° C (176° F)
    • Solenoid Weight - 1.62 kg
    • Approved Standard - ATEX, CSA, UL, EICEX & EAC
5 - 7 weeks

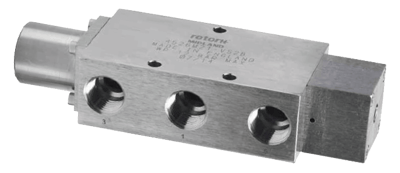

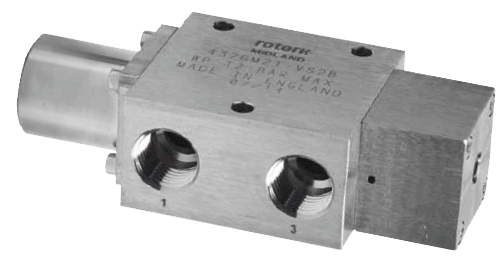

4526M21-ES2B
MIDLANDS 1600 Spool Valve, 3/2 Range, Hazardous Area, SST, ATEX, UL Listed CSA Approval View More
  • Specifically Designed for Severe Environments
  • Minimum Working Pressure: 3 Bar (43.5 psi)
  • Maximum Working Pressure: 12 Bar (174 psi)
  • 3/2 Range
  • Ambient Temperature Range -20° to 180º C (-4° to 356º F)
  • 3.5 CV
  • 316L Stainless Steel Construction
  • Designed for Actuator Control
  • 24 VDC
  • Type of Protection: Exd IIC T4
    • Approved Area - Zones 1 and 2
    • Degree of Protection - IP67 (NEMA Equivalent 6)
    • Cable Entry - M20 x 1.5
    • Power Consumption AC/DC - 5 W. 22.4 VA (110 VAC) 23.4 VA (120 VAC)
    • Max Admissable Surface Temp - 135° C (275° F)
    • Max Ambient Temp - 80° C (176° F)
    • Max Fluid Temp - 80° C (176° F)
    • Solenoid Weight - 1.62 kg
    • Approved Standard - ATEX, CSA, UL, EICEX & EAC
6 - 8 weeks

Specifications

Brand

Ambient Temperature Range

  • -20° to 180° C (-4 to 356° F)

Approvals & Certifications

  • ATEX
  • CE
  • CSA
  • EAC
  • IECEx
  • UL

Enclosure, Body Material

  • 316L Stainless Steel

Flow Capacity

  • 5/2 Valves, 3/2 Valves - 123 scfm (210 m³/hour)

Media

  • Air
  • Gases - Filtered Lubricated or Non-Lubricated
  • Inert Gas
  • Sweet Natural Gas

NACE & NIST

  • NACE

NPT Connection

  • 1/2" NPT Female Line Port
  • 1/8" NPT Female Pilot Ports

Seat / Seal Material

  • Fluoroelastomer

Spring Material

  • 316 Stainless Steel - Spool

Supply Pressure - Maximum

  • psi: 174 (bar: 12, kPa: 1,200)
