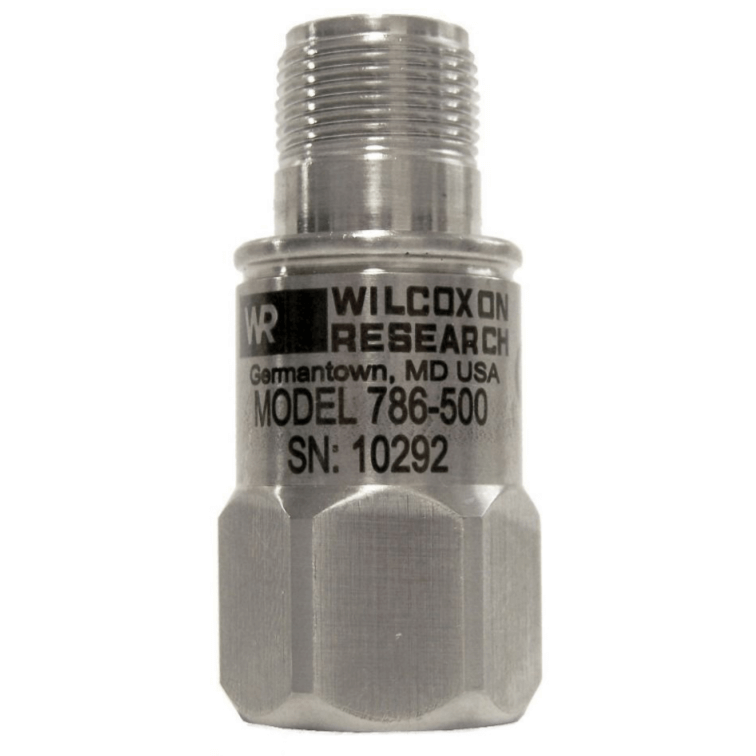

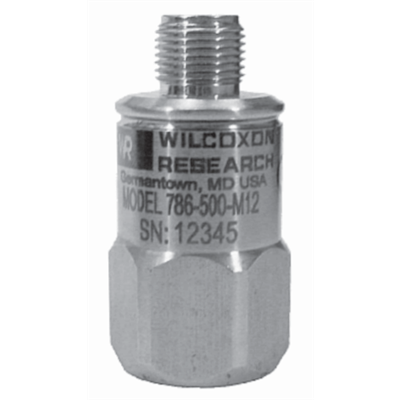

Model 786-500 General Purpose Low-Frequency Accelerometer

Brand: Wilcoxon Sensing Technologies
Top exit, broadband high sensitivity, low frequency sensor, MIL-C-5015 connector, 500 mV/g, ±5% sensitivity tolerance.
Features
  • Superior broadband frequency
  • Rugged design
  • High sensitivity
  • Hermetic seal
  • Case isolation
  • show more
    Images are representations only.
    Top exit, broadband high sensitivity, low frequency sensor, MIL-C-5015 connector, 500 mV/g, ±5% sensitivity tolerance.
    Features
  • Superior broadband frequency
  • Rugged design
  • High sensitivity
  • Hermetic seal
  • Case isolation
  • Specifications

    Approvals & Certifications

    • CE

    Electrical Connectors

    • Cable (J10 / J9T2A)
    • Mating Connector: R6 Typical

    Element

    • Sensing Element Design: PZT, Shear

    Enclosure, Body Material

    • 316L Stainless Steel

    Frequency

    • Frequency Response (± 10%): 0.5 to 9,000 Hz
    • Frequency Response (± 3 dB): 0.2 to 14,000 Hz
    • Frequency Response (± 5%): 0.7 to 5,000 Hz
    • Resonance Frequency: 30 kHz

    Mounting

    • 1/4-28 UNF Tapped Hole

    Noise

    • Electrical Noise, Equivalent G (Broadband: 2.5 Hz to 25 kHz): 250 µg
    • Electrical Noise, Equivalent G (Spectral: 10 Hz): 2.5 µg/√Hz
    • Electrical Noise, Equivalent G (Spectral: 100, 1,000 Hz): 1.5 µg/√Hz

    Non-Linearity

    • Amplitude Non-Linearity: 1%

    Output Impedence

    • Maximum

    Power Requirement

    • 18-30 Vdc
    • Current Regulating Diode: 2-10 mA

    Range

    • Acceleration Range, Vdc > 22 V: 10 G Peak

    Seal Type

    • Hermetic

    Sensitivity

    • Base Strain Sensitivity, Maximum
    • Electromagnetic Sensitivity, Equivalent G, Maximum
    • Sensitivity, ± 5%, 25° C (77° F): 500 mV/g
    • Transverse Sensitivity, Maximum

    Shock

    • Shock Limit: 5,000 G Peak

    Temperature Range

    • -50° to 120° C (-58° to 248° F)

    Vibration

    • Vibration Limit: 500 G Peak

    Voltage

    • Bias Output Voltage, Nominal: 12 Vdc
