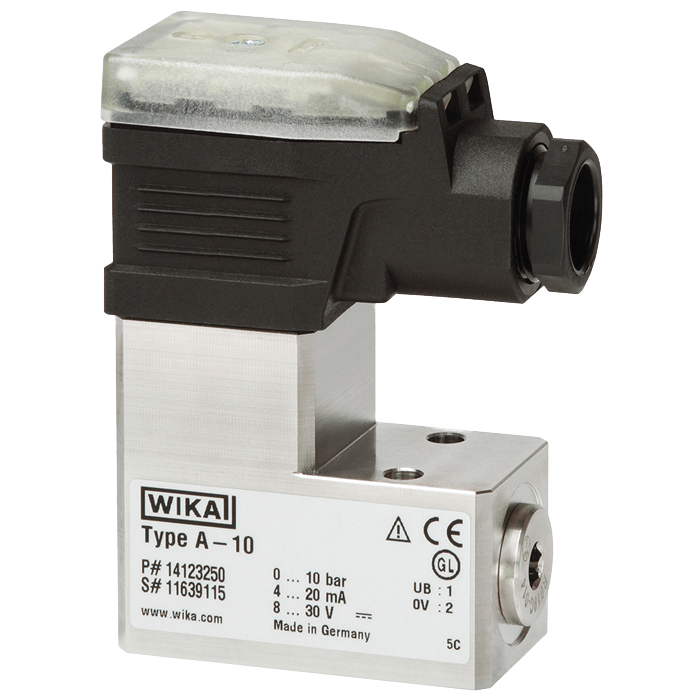

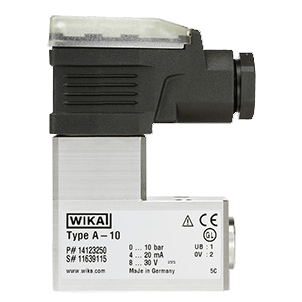

Model A-10 Block Design Pressure Transmitter

Brand: WIKA Instruments Ltd.
The model A-10 pressure transmitter for general industrial applications is not only notable for its compact design, but it also offers excellent quality at an extremely competitive price.

The user can choose between a non-linearity of 0.25 % and 0.5 %. A free test certificate provides information on the measuring points recorded during manufacture.
Features
  • Measuring ranges from 0 … 0.05 to 0 … 1,000 bar
  • Non-linearity 0.25 % or 0.5 %
  • Output 4 ... 20 mA, DC 0 ... 10 V, DC 0 ... 5 V and others
  • Electrical connection: Angular connector form A and C, circular connector M12 x 1, cable outlet 2 m
  • Process connection G ¼ A DIN 3852-E, ¼ NPT and others
show more
The model A-10 pressure transmitter for general industrial applications is not only notable for its compact design, but it also offers excellent quality at an extremely competitive price.

The user can choose between a non-linearity of 0.25 % and 0.5 %. A free test certificate provides information on the measuring points recorded during manufacture.
Features
  • Measuring ranges from 0 … 0.05 to 0 … 1,000 bar
  • Non-linearity 0.25 % or 0.5 %
  • Output 4 ... 20 mA, DC 0 ... 10 V, DC 0 ... 5 V and others
  • Electrical connection: Angular connector form A and C, circular connector M12 x 1, cable outlet 2 m
  • Process connection G ¼ A DIN 3852-E, ¼ NPT and others

Specifications

Applications

  • Other Off-shore Applications
  • Ship Building Industry

Approvals & Certifications

  • CE
  • EAC
  • GL
  • UL

BSP Connection

  • G 1/4" Female with Flange Connection

Electrical Connectors

  • Angular Connector DIN EN 175301-803 A

Non-Linearity

  • 0.25% BFSL
  • 0.5% BFSL

Output

  • 0.5 - 4.5 Vdc
  • 0-10 Vdc
  • 0-5 Vdc
  • 1-5 Vdc
  • 4-20 mA

Power Supply

  • 8-30 Vdc

Pressure Range

  • bar: 0 to 100
  • kPa: 0 to 10,000
  • psi: 0 to 1,450

Temperature Range

  • 0° to 80° C (32° to 144° F)

Typical Applications

  • Machine building
  • Ship building
  • Measurement and control technology
  • Hydraulics and pneumatics
  • Pumps and compressors
