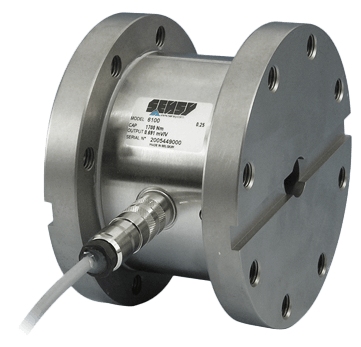

6100/6105 Reaction Torque Meter (High-Capacity)

Brand: Sensy S.A.
Universal non-rotating torque meters combining accuracy, sturdiness and easiness to install.
Features
  • Easy to install, Compact design
  • Protection IP 65
  • Material:
    • Stainless steel (6100)
    • Nickel plated steel (6105)
  • Cable length: 3m
  • Available options (non exhaustive list):
    • High service temperature (up to 180° C)
    • ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80° C Da
    • Amplified (0-10 V, 4 to 20 mA) and digital output signal (RS-232C, RS-485, USB)
    • Double strain-gauge bridge
show more

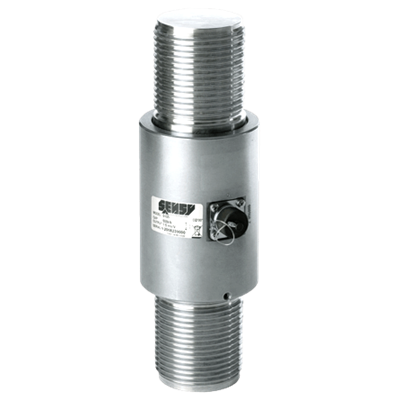

Images are representations only.
Universal non-rotating torque meters combining accuracy, sturdiness and easiness to install.
Features
  • Easy to install, Compact design
  • Protection IP 65
  • Material:
    • Stainless steel (6100)
    • Nickel plated steel (6105)
  • Cable length: 3m
  • Available options (non exhaustive list):
    • High service temperature (up to 180° C)
    • ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80° C Da
    • Amplified (0-10 V, 4 to 20 mA) and digital output signal (RS-232C, RS-485, USB)
    • Double strain-gauge bridge

6100/6105

Body Material

Specifications

Brand

Applications

  • Equipment Calibration
  • Laboratories
  • Load Limitation
  • Torque Measurement

Approvals & Certifications

  • ATEX Intrinsic Safety Ex II 1 GD Ex Ia IIC T6 or T4 Ga Ex Ia IIIC T80° C Da
  • CE

Cable Length

  • 10 feet (3 meters)

Capacity

  • 300 to 10,000 Nm

Communication

  • RS-232C
  • RS-485
  • USB

Electrical Connectors

  • DIN 45322

Enclosure, Body Material

  • Nickel-Plated Steel (6105)
  • Stainless Steel (6100)

Environmental Protection

  • IP65

Excitation Voltage

  • 10 Vdc
  • 3-12 Vdc - Nominal Range

Insulation Resistance

  • > 5,000 MegaOhms at 50 V

Linearity

  • <± 0.25% of Full Scale - Error

Load

  • > 300% of Full Scale - Breaking
  • 50% of Full Scale - Dynamic Loading

Load Limit

  • 130% of Full Scale

Operating Temperature

  • High Service Temperature: 180° C (356° F)

Repeatability

  • <± 0.1% of Full Scale - Error

Resistance

  • 352 ± 2 ohms - Input/Output

Sensitivity

  • <± 0.3% - Sensitivity Tolerance
  • 1.5 mV/V

Service Temperature

  • -30 to 70° C (-22° to 158° F)

Static Lateral Force

  • 50% of Full Scale

Storage Temperature

  • -50 to 85° C (-58° to 185° F)

Temperature Coefficient

  • <± 0.035% of Full Scale/10° C (18° F) - Zero Signal
  • <± 0.05% of Full Scale/10° C (18° F) - Sensitivity

Temperature Range

  • -10° to 45° C (14° to 113° F) - Nominal

Zero Balance

  • ± 0.02 mV/V
