HW Limit Switch Box Series

Brand: Soldo Controls

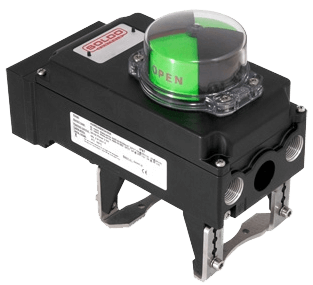

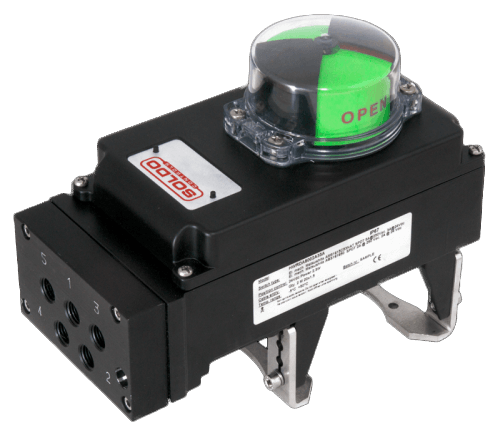

Control unit embedded into a limit switch box. The HW series provides, not only a visual and electrical remote position feedback, but, using a solenoid valve integrated into the housing, can also control an automated valve.

Available in polyester powder coated aluminum, with different lid choices, and with a wide selection of solenoid valves, from the standards 3/2 way to a 5/3 way with special pneumatic design.

The Soldo control unit, is covering from industrial automation to food and beverage, from chemical to naval industries.

It can also meet the requirements of a simple limit switch box, by removing the control side, providing a large inner volume able to host up to 6 switches and spare pass through terminals.
Features
  • Twin shaft design, ensuring a complete sealed device. The shaft is splitted in two parts, each fitted and sealed into the body and cover for the best weather insulation even during opening operation
  • Up to three cable entries, either metrics or imperial
  • Enhanced corrosion resistance thanks to the thick polyester powder coating on aluminum housings
  • 3/2, 5/2 or 5/3 way solenoid valve for pneumatic control
  • Compact solution embedding the solenoid valve into the limit switch box
  • Easy wiring through the terminal PCB board
  • NOVA V3™ switch option ensures extreme durability and high power switching capabilities
  • 4-20 mA position transmitter options
  • ASI communication protocol board
  • Integrated Namur mounting kit
  • Captive bolts on the screwed lid
show more
Images are representations only.
Control unit embedded into a limit switch box. The HW series provides, not only a visual and electrical remote position feedback, but, using a solenoid valve integrated into the housing, can also control an automated valve.

Available in polyester powder coated aluminum, with different lid choices, and with a wide selection of solenoid valves, from the standards 3/2 way to a 5/3 way with special pneumatic design.

The Soldo control unit, is covering from industrial automation to food and beverage, from chemical to naval industries.

It can also meet the requirements of a simple limit switch box, by removing the control side, providing a large inner volume able to host up to 6 switches and spare pass through terminals.
Features
  • Twin shaft design, ensuring a complete sealed device. The shaft is splitted in two parts, each fitted and sealed into the body and cover for the best weather insulation even during opening operation
  • Up to three cable entries, either metrics or imperial
  • Enhanced corrosion resistance thanks to the thick polyester powder coating on aluminum housings
  • 3/2, 5/2 or 5/3 way solenoid valve for pneumatic control
  • Compact solution embedding the solenoid valve into the limit switch box
  • Easy wiring through the terminal PCB board
  • NOVA V3™ switch option ensures extreme durability and high power switching capabilities
  • 4-20 mA position transmitter options
  • ASI communication protocol board
  • Integrated Namur mounting kit
  • Captive bolts on the screwed lid

HW

Series

Switch Type

  • view details
  • view details
  • view details
  • view details

Switch Quantity

Terminals

  • view details

Coating

Cable Entry

Visual Position Indicator

Approvals

Marking

IP Protection Rating

Temperature Range

Material and Solenoid Valve Selection

Coil Rating

Pneumatic Connections

Specifications

Actuator Type

  • Double-Acting Actuator - for Drible Control System
  • Spring Return Actuator - for Drible Control System

Ambient Temperature Range

  • -60° to 80° C (-76° to 176° F)

Approvals & Certifications

  • CE
  • EAC
  • SIL 2
  • UL (US)
  • UL: General-purpose

Cable Entry

  • 1/2" NPT
  • 3/4" NPT
  • M20 x 1.5
  • M25 x 1.5

Coil Voltage

  • 110 Vac - Exn Certified Pilot Valve Coil Rating
  • 12 Vdc - Exia Certified Pilot Valve Coil Rating
  • 24 Vac - Exia Certified Pilot Valve Coil Rating
  • 24 Vdc - Exia & Exn Certified Pilot Valve Coil Rating

Communication

  • Profibus Communication Board

Electrical Contacts

  • Gold-Plated - SPDT
  • Normally Closed
  • Normally Open
  • Silver-Plated - SPDT, DPDT

Electrical Rating

  • 0.1 A at 120 Vac - REED C4 & C8
  • 1 A at 24 Vdc - High Power Loop for REED C4 & C8
  • 1 A at 250 Vac - High Power Loop for NOVA V3™ N3
  • 1 A at 30 Vdc - High Power Loop for NOVA V3™ N3
  • 5 A at 250 Vac - High Power Loop for NOVA V3™ N1 & N4
  • 5 A at 28 Vdc - High Power Loop for NOVA V3™ N1 & N4

Enclosure Finish

  • Black Polyester Powder Coating

Enclosure, Body Material

  • Die Cast Aluminum

Environmental Protection

  • IP66
  • IP67
  • NEMA 4
  • NEMA 4X
  • Weatherproof

Indication

  • Red & Green & 3D Stainless Steel Visual Position Indicator

Media

  • Inert Gas Contact Chamber - REED C4 & C8

Mounting

  • ISO Namur

NPT Connection

  • 1/4" NPT Female Pneumatical Connection

Sensor, Probe Connection

  • 2-Wire
  • 3-Wire

Sensor, Probe Type

  • NAMUR Inductive Proximity Sensor

Solenoid Type

  • 5/2-Way Aluminum
  • 5/3-Way Double Coil Special Schematic & Closed Centers

Switch Quantity

  • 2 Switches
  • 3 Switches
  • 4 Switches (On Exd IIB Certification)

Switch Type

  • DPDT - Proximity Hermetically Sealed Snap Acting, Reed
  • Hermetic Seal Proximity Dry Contact
  • Inductive Proximity
  • NAMUR
  • PNP, Normally Open
  • SPDT - Proximity Hermetically Sealed Snap Acting, Reed

Temperature Range

  • -60° to 100° C (-76° to 212° F)

Trim Material

  • Stainless Steel - Mounting Legs
