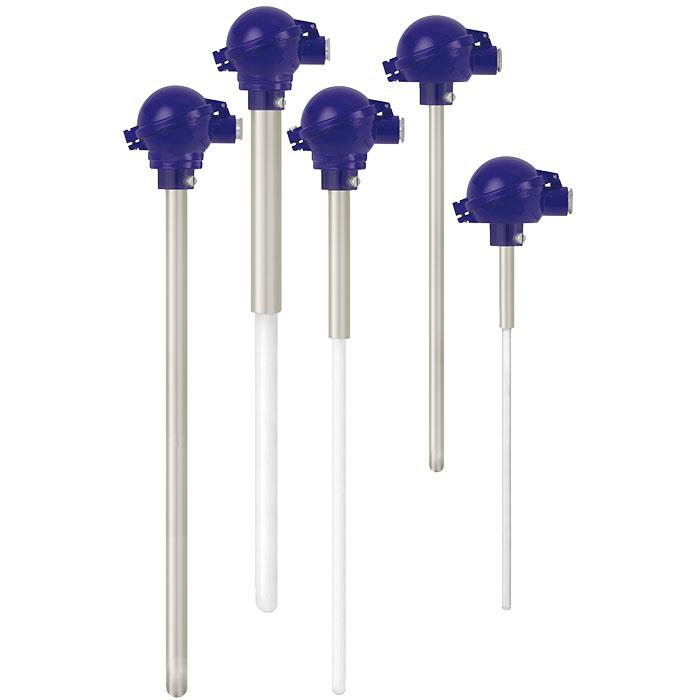

Thermocouple Straight Version per DIN 50446 - TC80

Brand: WIKA Instruments Ltd.
High-temperature thermometers of the TC80 model series have been developed to measure extremely high temperatures. These high-temperature thermocouples comply with DIN EN 50446.
Features
  • Application ranges up to max. +1,700 °C / +3,100 °F (DIN EN 50446 / ASTM E230).
  • Protection tube from heat-resistant steel or ceramic, also.
  • Support tube from different steels.
  • Gas-tight process connection.
  • Coatings (option).
show more
Images are representations only.
High-temperature thermometers of the TC80 model series have been developed to measure extremely high temperatures. These high-temperature thermocouples comply with DIN EN 50446.
Features
  • Application ranges up to max. +1,700 °C / +3,100 °F (DIN EN 50446 / ASTM E230).
  • Protection tube from heat-resistant steel or ceramic, also.
  • Support tube from different steels.
  • Gas-tight process connection.
  • Coatings (option).

Specifications

Connection Head Material

  • Aluminum

Sensor Type

  • Type K, N, R, S, B

Environmental Protection

  • IP53

Thermowell Material

  • Carbon steel, malleable cast iron

Certifications & Approvals

  • CE
  • EAC
  • GOST
  • KazInMetr
  • MTSCHS
  • BelGIM
  • Uzstandard

Typical Applications

  • Blast furnaces, hot blast stoves
  • Annealing and heat treatment processes
  • Waste, biomass and hazardous waste incineration
  • Large heating plants, heat generation, power engineering, reactors
  • Glass, porcelain and ceramic industry, cement and brick production
