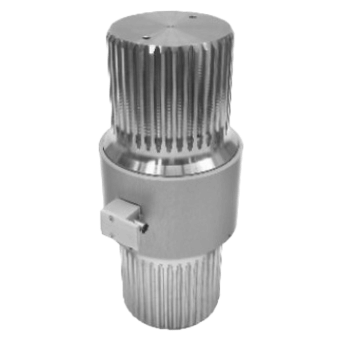

Non-rotating torque meter meant to be put between the ratchet and the wrench.
Features- Broad range of capacities from 50 Nm to 1.1 MNm
- Easy to install (standardized wrenches)
- Compact design
- Protection IP 54, IP 67
- Material: alloy steel (6305, 6305V), stainless steel (6300V)
- Cable length: 3m
- Available options (non exhaustive list):
- ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80° C Da
- High service temperature (up to 180° C)

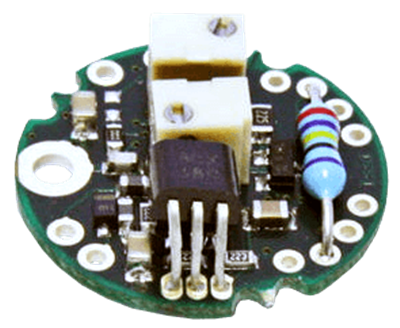

- Amplified output (V or mA) and digital output signal (RS-232C, RS-485, USB)
- Double strain-gauge bridge
Configure
Specifications
Specifications
Brand
Applications
- Torque Control on Ratchet Wrench & Machines
Approvals & Certifications
- ATEX Intrinsic Safety Ex II 1 GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80° C Da
- CE
Cable Length
- 10 feet (3 metres)
Capacity
- 50 Nm to 1.1 MNm
Communication
- RS-232C, RS-485
- USB
Electrical Connectors
- DIN 45322
Enclosure, Body Material
- Alloy Steel
- Stainless Steel
Environmental Protection
- IP54
- IP67
Excitation Voltage
- 10 Vdc
- 3-12 Vdc - Nominal Range
Insulation Resistance
- > 5,000 megaohms
Linearity
- < ± 0.25 % of Full Scale
Load
- Breaking Load: > 300 % of Full Scale
- Permissible Dynamic Loading: 40 % of Full Scale
Load Limit
- 120 % of Full Scale
Repeatability
- < ± 0.1 % of Full Scale
Resistance
- Input/Output: 352 ± 2 ohms
Sensitivity
- < ± 0.3 %
Service Temperature
- -30° to 70° C (-22° to 158° F)
Static Lateral Force
- 10 % of Full Scale
Storage Temperature
- -50° to 85° C (-58° to 185° F)
Zero Balance
- ± 0.02 mV/V
