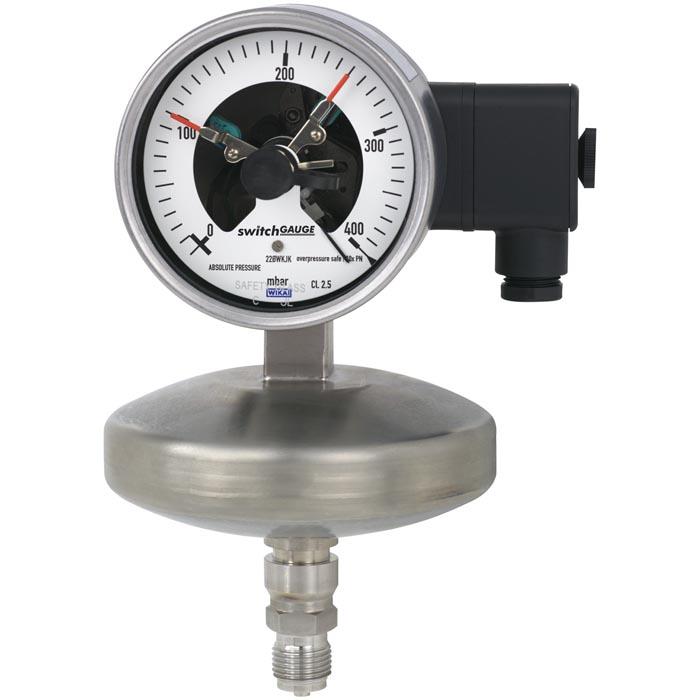

Model 532.53+8xx Absolute Pressure Gauge with Switch Contact

Brand: WIKA Instruments Ltd.
Wherever the process pressure has to be indicated locally and, at the same time, circuits need to be switched, the model 532.5x switchGAUGE finds its use.
Features
  • High overload safety, long service life due to metal media chamber sealing
  • Media chamber protected against unauthorised access
  • Also available with liquid-filled case for high dynamic pressure loads or vibrations
  • Instruments with inductive contacts for use in hazardous areas
  • Instruments with switch contact for PLC applications
show more
Wherever the process pressure has to be indicated locally and, at the same time, circuits need to be switched, the model 532.5x switchGAUGE finds its use.
Features
  • High overload safety, long service life due to metal media chamber sealing
  • Media chamber protected against unauthorised access
  • Also available with liquid-filled case for high dynamic pressure loads or vibrations
  • Instruments with inductive contacts for use in hazardous areas
  • Instruments with switch contact for PLC applications

Specifications

Design

  • Mechanical absolute pressure gauge per DIN 16002

Nominal Size in mm

  • 100
  • 160

Accuracy Class

  • 1.6 (model 532.53)
  • Option:
  • 1.0 (model 532.52)
  • 2.5 (model 532.54)
  • The measurement accuracy is ensured for ambient pressure fluctuations between 955 and 1,065 mbar (min. and max. of atmospheric pressure)

Scale Ranges

  • 0 to 25 mbar 2) to 0 to 25 bar Absolute Pressure [0 to 0.36 psi to 0 to 3,600 psi Absolute Pressure]

Scale

  • Single scale
  • Option: Dual Scale

Pressure Limitation

  • Steady: Full scale value
  • Fluctuating: 0.9 x full scale value

Overload Safety

  • 10 x full scale value, max. 25 bar absolute pressure, min. 1 bar absolute pressure
  • Option: 20 x Full Scale Value, max. 25 bar Absolute Pressure, min. 1 bar Absolute Pressure

Process Connection with Lower Measuring Flange

  • Small flange for vacuum applications DN 10
  • Small flange for vacuum applications DN 16
  • Open connecting flange DN 25 PN 25, DIN 2501, form D per DIN 2526
  • Open connecting flange DN 25 PN 25 per EN 1092-1, form B
  • 1/2" NPT Female
  • 1/2" NPT
  • G ½ B

Permissible Temperature

  • Medium: +100° C [+212° F] maximum
  • Option: +200° C [+392° F] maximum
  • Ambient: -20 ... +60° C [-4 ... 140° F]
  • Option: -40 ... +60° C (silicone oil filling) ¹⁾

Temperature Effect

  • When the temperature of the measuring system deviates from the reference temperature (+20° C): max. ±0.8 %/10 K of Full Scale Value

Case

  • Option:,Safety version S3 per EN 837: With solid baffle wall (Solidfront) and blow-out back (models 532.32
  • 532.33, 532.34)
  • Instruments with liquid filling with compensating valve to vent case
  • Version S1 per EN 837: With blow-out device in case back

Case Filling

  • Without
  • Option: With silicone oil M50 case filling, ingress protection IP65 (models 533.52, 533.53, 533.54)

Wetted Materials

  • Diaphragm element (pressure element), ≤ 0.25 bar: Stainless Steel 316Ti, > 0.25 bar: NiCr Alloy (Inconel)
  • Media chamber with process connection: Stainless Steel 316L
  • Option: Wetted parts from Monel (models 56x.3x, 56x.5x)

Typical Applications

  • Control and regulation of processes
  • Monitoring of plants and switching of circuits
  • Pressure measurement independent of fluctuations in the atmospheric pressure
  • Monitoring of vacuum pumps, packaging machines and condensation pressures, determination of vapour pressure in liquids
