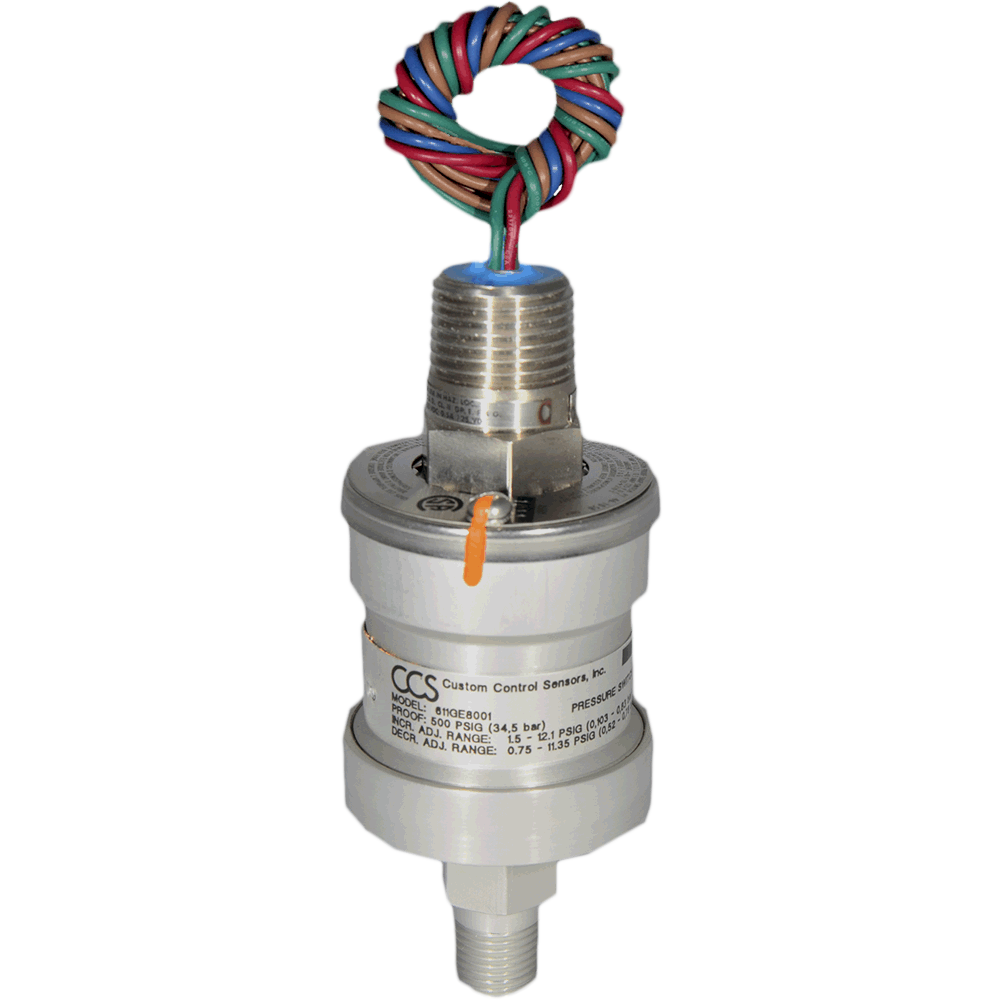

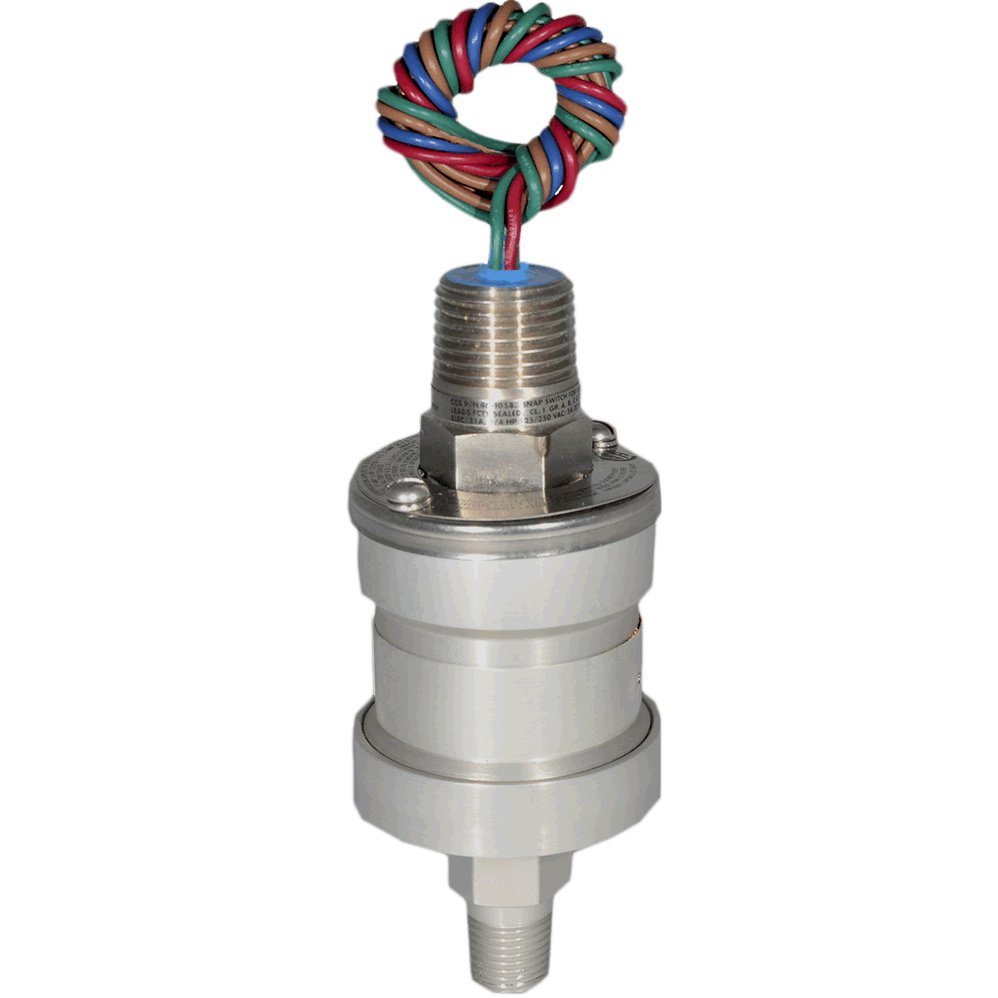

611GE8000 Series Pressure Switch

Brand: Custom Control Sensors, LLC
Does not ship to Virginia, United States
Features
  • Adjustable Set Point Range
    • Increasing: 1.5 to 180 psig, 10.4 to 1241.0 kPa, 0.103 to 12.41 bar
    • Decreasing: 0.75 to 173 psig, 5.2 to 1192.7 kPa, 0.052 to 11.92 bar
  • Deadband: Approximately 0.75 to 7 psi, 5.17 to 48.2 kPa, 0.052 to 0.483 bar
  • System Pressure (Maximum): 250 to 500 psig, 1,723.69 to 3,447.3 kPa, 17.2 to 34.5 bar
  • Proof Pressure: 500 to 1,000 psig, 3,447.38 to 6,894.7 kPa, 34.5 to 68.9 bar
  • Wetted Materials
    • Pressure Port: 1/4" Male NPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  • Relay: SPDT or DPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • CE Mark
show more
Features
  • Adjustable Set Point Range
    • Increasing: 1.5 to 180 psig, 10.4 to 1241.0 kPa, 0.103 to 12.41 bar
    • Decreasing: 0.75 to 173 psig, 5.2 to 1192.7 kPa, 0.052 to 11.92 bar
  • Deadband: Approximately 0.75 to 7 psi, 5.17 to 48.2 kPa, 0.052 to 0.483 bar
  • System Pressure (Maximum): 250 to 500 psig, 1,723.69 to 3,447.3 kPa, 17.2 to 34.5 bar
  • Proof Pressure: 500 to 1,000 psig, 3,447.38 to 6,894.7 kPa, 34.5 to 68.9 bar
  • Wetted Materials
    • Pressure Port: 1/4" Male NPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  • Relay: SPDT or DPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • CE Mark
5 models matching criteria
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N show more
  • Adjustable Set Point Range
    • Increasing: 30.1 to 70 psig, 207.5 to 482.6 kPa, 2.075 to 4.83 bar
    • Decreasing: 27.1 to 67 psig, 186.9 to 461.9 kPa, 1.87 to 4.62 bar
  • Deadband: Approximately 3 psi, 20.68 kPa, 0.21 bar
  • System Pressure (Maximum): 500 psig, 3447.38, 34.5 bar
  • Proof Pressure: 1000 psig, 6894.76 kPa, 68.9 bar
  • Wetted Materials
    • Pressure Port: 1/4" MNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  • Relay: SPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • CE Mark
25+ In Stock
$651.62USD
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N, ATEX show more
  • Adjustable Set Point Range
    • Increasing: 30.1 to 70 psig, 207.5 to 482.6 kPa, 2.075 to 4.83 bar
    • Decreasing: 27.1 to 67 psig, 186.9 to 461.9 kPa, 1.87 to 4.62 bar
  • Deadband: Approximately 3 psi, 20.68 kPa, 0.21 bar
  • System Pressure (Maximum): 500 psig, 3447.38, 34.5 bar
  • Proof Pressure: 1000 psig, 6894.76 kPa, 68.9 bar
  • Wetted Materials
    • Pressure Port: 1/4" MNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  • Relay: SPDT
  • ATEX
    • ATEX - SIRA Certified For Potentially Explosive Atmospheres
    • Models 6****Y, II 2 GD Ex d IIC, 08ATEX1046X (Option Y)
    • IECEx - SIRA Certified, SIR 10,0193X (Option Y)
  • CE Mark
1 In Stock
$1,000.68USD
Does not ship to Virginia, United States
CCS DUAL-SNAP Pressure Switch, Hazardous Area, 1/4" NPT SST Port & Diaphragm, Viton O-Ring, SPDT, Approvals: UL, CSA, CRN, CE, CCC, EAC show more
  • Adjustable Set Point Range
    • Increasing: 3 to 12 psi, 20.7 to 82.7 kPa, 0.21 to 0.827 bar
    • Decreasing: 1 to 10 psi, 6.89 to 68.9 kPa, 0.069 to 0.69 bar
  • Deadband: Approximately 2 psi, 13.8 kPa, 0.138 bar
  • System Pressure (Maximum): 250psi, 1723.7 kPa, 17.2 bar
  • Proof Pressure: 500 psi, 3447.4 kPa, 34.5 bar
  • Wetted Materials
    • Pressure Port: 1/4" MNPT 316 Stainless Steel
    • Diaphragm: 316 Stainless Steel
  • O-Ring: Viton
  • Relay: SPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • CE Mark, NACE, CRN
23 In Stock
Does not ship to Virginia, United States
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N show more
  • Adjustable Set Point Range
    • Increasing: 1.5 to 12.1 psig, 10.4 to 83.4 kPa, 0.103 to 0.83 bar
    • Decreasing: 0.75 to 11.35 psig, 5.2 to 78.2 kPa, 0.052 to 0.78 bar
  • Deadband: Approximately 0.75 psi, 5.17 kPa, 0.052 bar
  • System Pressure (Maximum): 250 psig, 1723.69, 17.2 bar
  • Proof Pressure: 500 psig, 3447.38 kPa, 34.5 bar
  • Wetted Materials
    • Pressure Port: 1/4" MNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  • Relay: SPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • CE Mark
5 - 7 weeks
$651.62USD
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N show more
  • Adjustable Set Point Range
    • Increasing: 12.1 to 30 psig, 83.5 to 206.8 kPa, 0.83 to 2.07 bar
    • Decreasing: 10.1 to 28 psig, 69.7 to 193.0 kPa, 0.70 to 1.93 bar
  • Deadband: Approximately 2 psi, 13.79 kPa, 0.139 bar
  • System Pressure (Maximum): 500 psig, 3447.38, 34.5 bar
  • Proof Pressure: 1000 psig, 6894.76 kPa, 68.9 bar
  • Wetted Materials
    • Pressure Port: 1/4" MNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  • Relay: SPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • CE Mark
5 - 7 weeks
$605.13USD
Does not ship to Virginia, United States

Specifications

Adjustment Type

  • Field Adjustable

Approvals & Certifications

  • ATEX
  • CE
  • CRN
  • CRN - Alberta
  • CRN - British Columbia
  • CRN - Saskatchewan
  • CSA
  • cUL
  • EMC
  • IEC Ex
  • PED
  • RoHS
  • RTN
  • UL

Deadband, Approximate

  • bar: 0.052 to 0.483
  • kPa: 5.2 to 48.2
  • psi: 0.75 to 7

Diaphragm Material

  • Polyimide

Electrical - Free Leads

  • 18” (45 cm) Free Leads
  • 18” (45 cm) Teflon Leadwire

Electrical Assembly

  • Hermetic Seal

Electrical Certification

  • ATEX - SIRA Certified for Potentially Explosive Atmospheres. Models 6****Y, II 2 GD Ex d IIC, 08-ATEX-
  • c-UL, UL/CSA Explosion-proof: Div. 1, 2 Hermetically Sealed Electrical Assembly P/N 46-1058 (46-1061 for M (DPDT) Model Option), Listed by Both Underwriter's Laboratories, Inc. (File No. E32961) & Canadian Standard Association (CSA) Testing Laboratories
  • IECEx - SIRA Certified, SIR 10,0193X (Option Y)

Electrical Connectors

  • 1/2” NPT Male

Electrical Contacts

  • Gold
  • Silver

Electrical Rating

  • 1 A at 125 Vac, 50/60 Hz
  • 11 A at 125/250 Vac

Enclosure, Body Material

  • Aluminum

Environmental Protection

  • Hazardous Area
  • IP54
  • IP66
  • NEMA 13
  • NEMA 4, 7, 9, 13 / IP54, 66
  • NEMA 7
  • NEMA 9

NACE & NIST

  • NACE

NPT Connection

  • 1/4” NPT Male

O-Ring Material

  • Buna-N
  • Ethylene Propylene (EPR)
  • Viton

Operating Temperature

  • -40° to 86° C (-40° to 187° F)

Process Connection Material

  • Aluminum

Proof Pressure

  • bar: 34.5 to 68.9
  • kPa: 3,447 to 6,895
  • psig: 500 to 1,000

Service

  • Sweet (Oil & Gas)

Set Point - Decreasing

  • bar: 0.052 to 11.92
  • kPa: 5.2 to 1,193
  • psig: 0.75 to 173

Set Point - Increasing

  • bar: 0.103 to 12.41
  • kPa: 10.4 to 1,241
  • psig: 1.5 to 180

Switch Type

  • DPDT
  • SPDT

System Pressure

  • bar: 17.2 to 34.5
  • kPa: 1,724 to 3,447
  • psig: 250 to 500
