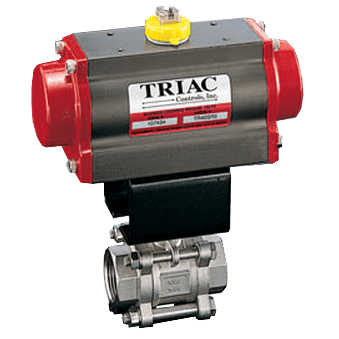

55 Series Automated Ball Valve

Brand: A-T Controls, Inc
Triac Series 55 Ball Valves feature a high quality investment cast body and ends.

They are available 1/4" - 4" with threaded, socket weld and butt weld ends.

Superior leak protection is accomplished by using a live-loaded packing system including Belleville washers and double "V" ring packing.
Features
  • Design: 3-Piece Standard Service Exposed Bolt "Swing-out" Design, Locking Handle
  • Size: 1/4" to 4"
  • Port: Full
  • Direct Mount: No
  • Pyramidal Stem Packing: No
  • Materials of Construction:
    • Body: 316 Stainless Steel, WCB
    • Trim: 316 Stainless Steel
    • Available Seats: RTFE, PTFE, 50/50%, MG1241, TFM-1600
  • End Connections: Threaded Ends, Socket Weld, Butt Weld
  • Maximum Pressure Rating: 1,000 psig
  • Actuator Type:
    • Pneumatic: Double Acting or Spring Return
    • Electric: On/Off or Modulating
Triac Series 55 Ball Valves feature a high quality investment cast body and ends.

They are available 1/4" - 4" with threaded, socket weld and butt weld ends.

Superior leak protection is accomplished by using a live-loaded packing system including Belleville washers and double "V" ring packing.
Features
  • Design: 3-Piece Standard Service Exposed Bolt "Swing-out" Design, Locking Handle
  • Size: 1/4" to 4"
  • Port: Full
  • Direct Mount: No
  • Pyramidal Stem Packing: No
  • Materials of Construction:
    • Body: 316 Stainless Steel, WCB
    • Trim: 316 Stainless Steel
    • Available Seats: RTFE, PTFE, 50/50%, MG1241, TFM-1600
  • End Connections: Threaded Ends, Socket Weld, Butt Weld
  • Maximum Pressure Rating: 1,000 psig
  • Actuator Type:
    • Pneumatic: Double Acting or Spring Return
    • Electric: On/Off or Modulating
Close

Specifications

Brand

Direct Mount

  • No

Enclosure, Body Material

  • 316 Stainless Steel
  • WCB Carbon Steel

NPT Connection

  • 1" NPT Female
  • 1/2" NPT Female
  • 1/4" NPT Female
  • 1-1/2" NPT Female
  • 1-1/4" NPT Female
  • 2" NPT Female
  • 2-1/2" NPT Female
  • 3" NPT Female
  • 3/4" NPT Female
  • 3/8" NPT Female
  • 4" NPT Female

Options

  • Intrinsically Safe Solenoid & Limit Switches
  • NEMA 4 Solenoid 120 Vac & Switches
  • NEMA 7 Solenoid 120 Vac & Switches

Port

  • Full

Pressure Rating

  • psig: 1,000

Pyramidal Stem Packing

  • No

Seat / Seal Material

  • 50 % Stainless Steel Powder / 50 % Carbon-Filled Teflon
  • MG1241
  • PTFE (Carbon-Filled Teflon)
  • RTFE (Reinforced Teflon)
  • TFM 1600

TA-Luft Certified

  • No

Trim Material

  • 316 Stainless Steel

Valve Type

  • Automated

Welded Connection

  • 1" Butt Weld End
  • 1" Socket Weld End
  • 1/2" Butt Weld End
  • 1/2" Socket Weld End
  • 1/4" Butt Weld End
  • 1/4" Socket Weld End
  • 1-1/2" Butt Weld End
  • 1-1/2" Socket Weld End
  • 1-1/4" Butt Weld End
  • 1-1/4" Socket Weld End
  • 2" Butt Weld End
  • 2" Socket Weld End
  • 2-1/2" Butt Weld End
  • 2-1/2" Socket Weld End
  • 3" Butt Weld End
  • 3" Socket Weld End
  • 3/4" Butt Weld End
  • 3/4" Socket Weld End
  • 3/8" Butt Weld End
  • 3/8" Socket Weld End
  • 4" Butt Weld End
  • 4" Socket Weld End
