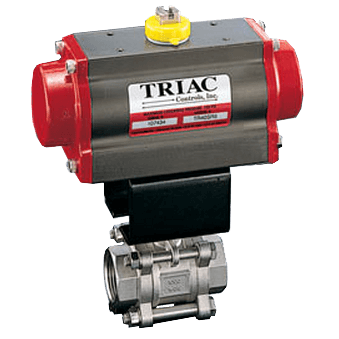

55 Series Automated Ball Valve

Brand: A-T Controls, Inc.
Features
  • Design: 3-Piece Standard Service Exposed Bolt "Swing-Out" Design, Locking Handle
  • Size: 1/4" to 4"
  • Port: Full
  • Direct Mount: No
  • Pyramidal Stem Packing: No
  • Materials of Construction:
    • Body: 316 Stainless Steel, WCB
    • Trim: 316 Stainless Steel
    • Available Seats: RTFE, PTFE, 50/50%, MG1241, TFM-1600
  • End Connections: Threaded Ends, Socket Weld, Butt Weld
  • Maximum Pressure Rating: psig: 1,000
  • Actuator Type:
    • Pneumatic (Double Acting or Spring Return)
    • Electric (On/Off or Modulating)
show more
Features
  • Design: 3-Piece Standard Service Exposed Bolt "Swing-Out" Design, Locking Handle
  • Size: 1/4" to 4"
  • Port: Full
  • Direct Mount: No
  • Pyramidal Stem Packing: No
  • Materials of Construction:
    • Body: 316 Stainless Steel, WCB
    • Trim: 316 Stainless Steel
    • Available Seats: RTFE, PTFE, 50/50%, MG1241, TFM-1600
  • End Connections: Threaded Ends, Socket Weld, Butt Weld
  • Maximum Pressure Rating: psig: 1,000
  • Actuator Type:
    • Pneumatic (Double Acting or Spring Return)
    • Electric (On/Off or Modulating)
27 models matching criteria
55-FP-0100-BALL
A-T CONTROLS Series 55 Ball Valve, 3-Piece, 1" Full-Port Ball, 316 SST
2 - 4 weeks
$17.90USD
$14.91 Shipping
55-FP-0150-BALL
A-T CONTROLS Series 55 Ball Valve, 3-Piece, 1-1/2" Full-Port Ball, 316 SST
2 - 4 weeks
$35.06USD
$14.91 Shipping
55-TX-038/TR1D-XX
A-T CONTROLS Series 55 Ball Valve, 3-Piece, Threaded, 3/8", Double-Acting, RTFE View More
  • Design: 3-Piece Standard Service Exposed Bolt "Swing-Out" Design, Locking Handle
  • Size: 3/8" NPT
  • Port: Full
  • Materials of Construction:
    • Body: 316 Stainless Steel
    • Trim: 316 Stainless Steel
    • Available Seats: Reinforced TFE Seats

  • End Connections: Threaded Ends
  • Maximum Pressure Rating: 1000 psi
  • Actuator-Pneumatic: 200 In-Lbs. Double Acting
2 - 4 weeks
$280.49USD
$14.91 Shipping
55-TX-100/2R3S-XX
A-T CONTROLS Series 55 Ball Valve, 3-Piece, Threaded, 1", RTFE, Full Port View More
  • Design: 3-Piece Ball Valve
  • Size: 1" NPT
  • Port: Full
  • Materials of Construction:
    • Body: 316 Stainless Steel
    • Trim: 316 Stainless Steel
    • Seats: Reinforced TFE Seats

  • End Connections: Threaded Ends
  • Maximum Pressure Rating: 1000 psi
  • Actuator-Pneumatic : 2R80 Spring Return
2 - 4 weeks
$456.55USD
$14.91 Shipping
55C-TX-S-100/2R3S-XX
A-T CONTROLS Series 55 Ball Valve, 3-Piece, Threaded, 1", SR, 50% Powder Filled TFE Seats, Carbon View More
  • Design: 3-Piece Standard Service
  • Size: 1" NPT
  • Port: Full
  • Materials of Construction:
    • Body: Carbon Steel
    • Trim: 316 Stainless Steel
    • Seats: 50% SS Powder Filled TFE Seats

  • End Connections: Threaded Ends
  • Maximum Pressure Rating: 1000 psi
  • Actuator-Pneumatic: 2R80SR
2 - 4 weeks
$463.26USD
$14.91 Shipping
55-TX-S-100/2R3S-XX
A-T CONTROLS Series 55 Ball Valve, 3-Piece, Threaded, 1", Spring Return, 50% Powder Filled TFE Seats View More
  • Design: 3-Piece Standard Service Exposed Bolt "Swing-Out" Design, Locking Handle
  • Size: 1" NPT
  • Port: Full
  • Materials of Construction:
    • Body: 316 Stainless Steel
    • Trim: 316 Stainless Steel
    • Seats: 50% SS Powder Filled TFE Seats

  • End Connections: Threaded Ends
  • Maximum Pressure Rating: 1000 psi
  • Actuator-Pneumatic: 2R80SR
2 - 4 weeks
$484.15USD
$14.91 Shipping
55-TX-150/WEA1-RX
A-T CONTROLS Series 55 Ball Valve, 3-Piece, Threaded, 1-1/2", RTFE, WE-500 Actuator Mounted,24VDC
2 - 4 weeks
$494.59USD
$14.91 Shipping
55C-TX-S-150/2R3S-XX
A-T CONTROLS Series 55 Ball Valve, 3-Piece, Threaded, 1.5", SR, 50% Powder Filled TFE Seats, Carbon View More
  • Design: 3-Piece Standard Service
  • Size: 1.5" NPT
  • Port: Full
  • Materials of Construction:
    • Body: Carbon Steel
    • Trim: 316 Stainless Steel
    • Seats: 50% SS Powder Filled TFE Seats

  • End Connections: Threaded Ends
  • Maximum Pressure Rating: 1000 psi
  • Actuator-Pneumatic: 2R80SR
2 - 4 weeks
$602.02USD
$14.91 Shipping
55-TS-050/WEA1-XX
A-T CONTROLS Series 55 Ball Valve, 3-Piece, Threaded, 1/2", Electric 2-Position, STFE Seats View More
  • Design: Actuated - Series 55 3-Piece Ball Valve, Locking Handle,
  • Size: 1/2" NPT
  • Port: Full
  • Materials of Construction:
    • Body: 316 Stainless Steel
    • Trim: 316 Stainless Steel
    • Seats: STFE

  • End Connections: Threaded Ends
  • Maximum Pressure Rating: 1000 psi
  • Actuator: WE-500 Electric Two Position

  • 115VAC/1PH
  • IP67, Type 4, 4X
  • Output Torque: 530 In-lbs

[/li]
2 - 4 weeks
$604.25USD
$14.91 Shipping
55-TX-100/2R2DL-BX-24VDC
A-T CONTROLS Series 55 Ball Valve, 3-Piece, Threaded, 1", Double-Acting,RTFE, NEMA7Solenoid24Volt View More
  • Design: 3-Piece Standard Service Exposed Bolt "Swing-Out" Design, Locking Handle
  • Size: 1" NPT
  • Port: Full
  • Materials of Construction:
    • Body: 316 Stainless Steel
    • Trim: 316 Stainless Steel
    • Available Seats: Reinforced TFE Seats

  • End Connections: Threaded Ends
  • Maximum Pressure Rating: 1000 psi
  • Actuator-Pneumatic: 2R40 Double Acting, Low Temp
  • Solenoid: NEMA 7, 24 Volt
2 - 4 weeks
$623.65USD
$14.91 Shipping

Specifications

Direct Mount

  • No

Enclosure, Body Material

  • 316 Stainless Steel
  • WCB Carbon Steel

NPT Connection

  • 1" NPT Female
  • 1/2" NPT Female
  • 1/4" NPT Female
  • 1-1/2" NPT Female
  • 1-1/4" NPT Female
  • 2" NPT Female
  • 2-1/2" NPT Female
  • 3" NPT Female
  • 3/4" NPT Female
  • 3/8" NPT Female
  • 4" NPT Female

Options

  • Intrinsically Safe Solenoid & Limit Switches
  • NEMA 4 Solenoid 120 Vac & Switches
  • NEMA 7 Solenoid 120 Vac & Switches

Port

  • Full

Pressure Rating

  • psig: 1,000

Pyramidal Stem Packing

  • No

Seat / Seal Material

  • 50 % Stainless Steel Powder / 50 % Carbon-Filled Teflon
  • MG1241
  • PTFE (Carbon-Filled Teflon)
  • RTFE (Reinforced Teflon)
  • TFM-1600

TA-Luft Certified

  • No

Trim Material

  • 316 Stainless Steel

Valve Type

  • Automated

Welded Connection

  • 1" Butt Weld End
  • 1" Socket Weld End
  • 1/2" Butt Weld End
  • 1/2" Socket Weld End
  • 1/4" Butt Weld End
  • 1/4" Socket Weld End
  • 1-1/2" Butt Weld End
  • 1-1/2" Socket Weld End
  • 1-1/4" Butt Weld End
  • 1-1/4" Socket Weld End
  • 2" Butt Weld End
  • 2" Socket Weld End
  • 2-1/2" Butt Weld End
  • 2-1/2" Socket Weld End
  • 3" Butt Weld End
  • 3" Socket Weld End
  • 3/4" Butt Weld End
  • 3/4" Socket Weld End
  • 3/8" Butt Weld End
  • 3/8" Socket Weld End
  • 4" Butt Weld End
  • 4" Socket Weld End
