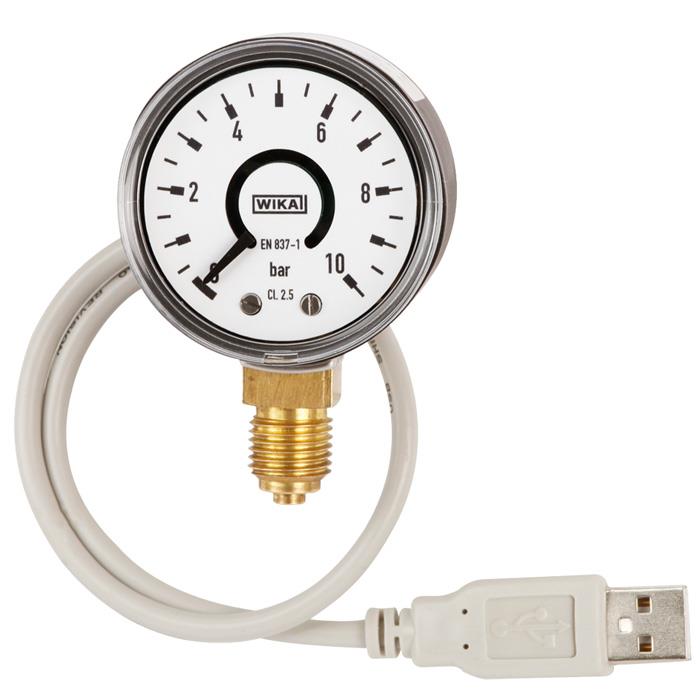

Bourdon Tube Pressure Gauge with Output Signal - PGT10 USB

Brand: WIKA Alexander Wiegand SE & Co. KG
Request Information
Plastic case, with USB interface.
Features
  • USB interface for measured-value display on the PC.
  • Non-contact sensor (wear-free).
  • Nominal size 50.
  • Scale ranges 0 ... 1,6 bar to 0 ... 400 bar.
Plastic case, with USB interface.
Features
  • USB interface for measured-value display on the PC.
  • Non-contact sensor (wear-free).
  • Nominal size 50.
  • Scale ranges 0 ... 1,6 bar to 0 ... 400 bar.
Close

Specifications

Brand

Design

  • EN 837-1

Nominal Size in mm

  • 50

Accuracy Class

  • 2.5

Scale Ranges

  • 0 to 1.6 to 0 to 400 bar
  • Or all other equivalent vacuum or combined pressure and vacuum ranges

Pressure Limitation

  • Steady: 3/4 x Full Scale Value
  • Fluctuating: 2/3 x Full Scale Value
  • Short Time: Full Scale Value

Permissible Temperature

  • Ambient: -20° to +60° C
  • Medium: +60° C Max.

Temperature Effect

  • When the temperature of the measuring system deviates from the reference temperature (+20° C): Max. ± 0.4 %/10 K of the Span

Process Connection

  • Copper Alloy, Lower Mount (LM) G 1/4 B (Male), 14 mm flats

Pressure Element

  • Copper Alloy, C-Type

Movement

  • Copper Alloy

Dial

  • Plastic, White, Black Lettering

Pointer

  • Plastic, Black
Close

Applications

  • Laboratory Technology
  • General Machine Building
