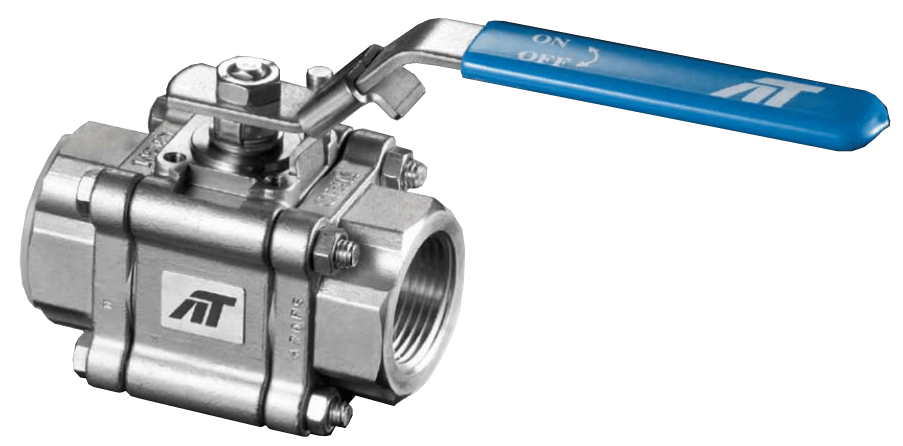

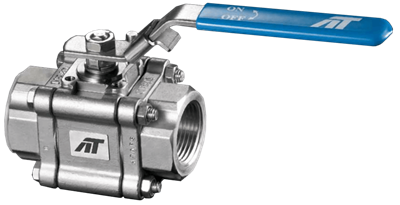

F8R Series Manual Ball Valve

Brand: A-T Controls, Inc.
Triac F8R Series Firesafe 3-piece ball valves are the finest quality 3-piece valves on the market.

The high quality investment castings feature a fully machined bore.

The superior live-loaded packing system is accomplished with Belleville washers, Grafoil packing and a unique primary pyramidal stem seal. This advanced sealing system provides protection against stem leaks experienced by ordinary ball valves.
Features
  • Sizes 1/4” to 2-1/2”
  • Regular Port Design
  • 1,500/2,000 psi WOG (by size)
  • 316SST or WCB
  • Threaded, Socket Weld, or Butt Weld Ends
  • Superior Live Loaded Packing System
  • ISO 5211 Actuator Mounting Pad
  • Blowout Proof Stem w/ Dual Anti-Static Devices
  • RTFE Seats Standard
  • Pyramidal Stem Seal Design
  • Lockable Manual Handle
show more
Triac F8R Series Firesafe 3-piece ball valves are the finest quality 3-piece valves on the market.

The high quality investment castings feature a fully machined bore.

The superior live-loaded packing system is accomplished with Belleville washers, Grafoil packing and a unique primary pyramidal stem seal. This advanced sealing system provides protection against stem leaks experienced by ordinary ball valves.
Features
  • Sizes 1/4” to 2-1/2”
  • Regular Port Design
  • 1,500/2,000 psi WOG (by size)
  • 316SST or WCB
  • Threaded, Socket Weld, or Butt Weld Ends
  • Superior Live Loaded Packing System
  • ISO 5211 Actuator Mounting Pad
  • Blowout Proof Stem w/ Dual Anti-Static Devices
  • RTFE Seats Standard
  • Pyramidal Stem Seal Design
  • Lockable Manual Handle
F8R-TH-0050-PXX
A-T CONTROLS Series F8R Ball Valve, Firesafe, 3-Piece SST, Threaded, 1/2", PTFE Seats View More
  • F: Firesafe Tested
  • 8R: 3-Piece Direct Mount 2000/1500 WOG, Regular Port
    • Stainless Steel Body and Trim
  • TH: NPT Ends
  • 0050: 1/2" Valve Size
  • P: PTFE Seats
  • X: No Specials
  • X: No Specials
2 - 4 weeks
$104.02 USD
$15.52 Shipping
F8R-TH-0100-PXX
A-T CONTROLS Series F8R Ball Valve, Firesafe, 3-Piece SST, Threaded, 1", PTFE Seats View More
  • F: Firesafe Tested
  • 8R: 3-Piece Direct Mount 2000/1500 WOG, Regular Port
    • Stainless Steel Body and Trim
  • TH: NPT Ends
  • 0100: 1" Valve Size
  • P: PTFE Seats
  • X: No Specials
  • X: No Specials
2 - 4 weeks
$137.40 USD
$15.52 Shipping
F8R-TH-0200-PXX
A-T CONTROLS Series F8R Ball Valve, Firesafe, 3-Piece SST, Threaded, 2", PTFE Seats View More
  • F: Firesafe Tested
  • 8R: 3-Piece Direct Mount 2000/1500 WOG, Regular Port
    • Stainless Steel Body and Trim
  • TH: NPT Ends
  • 0200: 2" Valve Size
  • P: PTFE Seats
  • X: No Specials
  • X: No Specials
2 - 4 weeks
$346.98 USD
$15.52 Shipping

Specifications

Approvals & Certifications

  • API 607 - 6th Edition

Direct Mount

  • No

Enclosure, Body Material

  • 316 Stainless Steel
  • WCB (Carbon Steel)

NPT Connection

  • 1" NPT Female
  • 1/2" NPT Female
  • 1/4" NPT Female
  • 1-1/2" NPT Female
  • 1-1/4" NPT Female
  • 2" NPT Female
  • 2-1/2" NPT Female
  • 3/4" NPT Female
  • 3/8" NPT Female

Port

  • Reduced (Standard, Regular)

Pressure Rating

  • psi: 1,500
  • psi: 2,000

Seat / Seal Material

  • 50% Stainless Steel Powder / 50% Carbon Filled Teflon
  • CTFE (15% Carbon Steel Powder / 85% Teflon Seats)
  • Delrin®
  • PEEK®
  • PTFE (Carbon Filled Teflon)
  • RTFE (Reinforced Teflon)
  • UHMWPE

Trim Material

  • 316 Stainless Steel

Valve Type

  • Manual

Welded Connection

  • 1" Butt Weld End
  • 1" Socket Weld End
  • 1/2" Butt Weld End
  • 1/2" Socket Weld End
  • 1/4" Butt Weld End
  • 1/4" Socket Weld End
  • 1-1/2" Butt Weld End
  • 1-1/2" Socket Weld End
  • 1-1/4" Butt Weld End
  • 1-1/4" Socket Weld End
  • 2" Butt Weld End
  • 2" Socket Weld End
  • 2-1/2" Butt Weld End
  • 2-1/2" Socket Weld End
  • 3/4" Butt Weld End
  • 3/4" Socket Weld End
  • 3/8" Butt Weld End
  • 3/8" Socket Weld End
