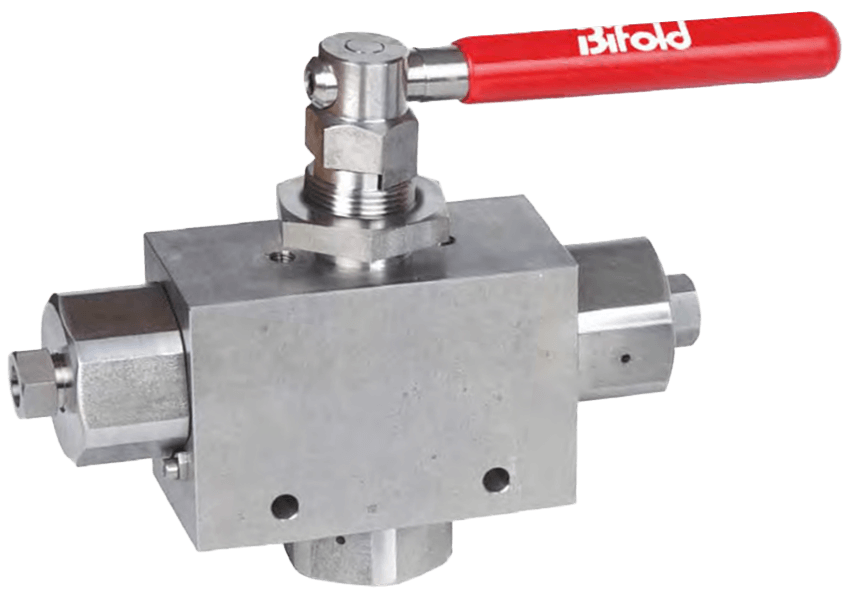

MPBT Medium Pressure Trunnion Ball Valves

Brand: Bifold Group
Request a Quote
Favorite
The bifold range of medium pressure trunnion ball valves have been developed to the highest quality for uppermost performance. They are available in a wide range of configuration for most liquid service applications up to 20,000 psi / 1,379 bar. An extensive range of seal materials available, which are suitable for extreme environments.
Features
  • Blow out proof stem design
  • Maintenance free stem sealing
  • Low operating torque
  • Pressure loaded seats creating a positive seal
  • Bi-directional straight through flow path minimising pressure drop
  • High tensile 316L CW stainless steel bodies as standard
  • Glass reinforced PEEK seats as standard for excellent chemical resistance
  • Exotic materials available upon request
  • Traceability via a unique serial number stamped on the valve body, Gland and collar
  • Available in a number of temperature ranges from -46° to 225° C (-20° to 180° C as standard)
  • Nace MR-01-75 / ISO 15156 compliant materials of construction are available upon request
show more
The bifold range of medium pressure trunnion ball valves have been developed to the highest quality for uppermost performance. They are available in a wide range of configuration for most liquid service applications up to 20,000 psi / 1,379 bar. An extensive range of seal materials available, which are suitable for extreme environments.
Features
  • Blow out proof stem design
  • Maintenance free stem sealing
  • Low operating torque
  • Pressure loaded seats creating a positive seal
  • Bi-directional straight through flow path minimising pressure drop
  • High tensile 316L CW stainless steel bodies as standard
  • Glass reinforced PEEK seats as standard for excellent chemical resistance
  • Exotic materials available upon request
  • Traceability via a unique serial number stamped on the valve body, Gland and collar
  • Available in a number of temperature ranges from -46° to 225° C (-20° to 180° C as standard)
  • Nace MR-01-75 / ISO 15156 compliant materials of construction are available upon request
Close
Close

Specifications

Brand

Applications

  • Chemical Injection Skids
  • Hydraulic Control Panels
  • Hydrostatic Testing Equipment
  • Liquid Service Applications up to 20,000 psi / 1,379 bar
  • Water Jetting & Other General Industrial Applications

Approvals & Certifications

  • ISO 15156

Bore Size

  • 0.19" (5 mm)
  • 0.39" (10 mm)

Configuration

  • 2-Way
  • 3-Way (Diverting & Selecting)
  • 4-Way
  • 5-Way

Enclosure, Body Material

  • High Tensile 316L CW Stainless Steel

Materials of Construction

  • 6MO / 254MO Stainless Steel
  • Duplex UNS S31803
  • Hastelloy® C-276
  • Inconel® 625 UNS N06625
  • Inconel® 825 UNS N08825
  • Monel® 400 UNS N04400
  • Nickel 200 UNS N02200
  • Super Duplex UNS S32750 / 32760
  • Titanium Grade 2 UNS R50400

NACE & NIST

  • NACE MR-0175

Orifice Size

  • 0.11 to 0.31" (2.80 to 7.90 mm)

O-Ring Material

  • Endura V91A
  • HNBR
  • Nitrile
  • Viton (80 Shore)

Rotation

  • 180°
  • 90°

Seat / Seal Material

  • Glass Reinforced PEEK - Seat

Supply Pressure - Maximum

  • psi: 10,000 (kPa: 68,95, bar: 689.5)
  • psi: 20,000 (kPa: 137,900, bar: 1,379)

Temperature Range

  • -20° to 180° C (-4° to 356° F) - Viton (80 Shore)
  • -25° to 160° C (-13° to 320° F) - HNBR
  • -30° to 120° C (-22° to 248° F) - Nitrile
  • -45° to 225° C (-49° to 437° F) - Endura V91A

Tube Inlet

  • 1" Tube
  • 1/4" Tube
  • 3/4" Tube
  • 3/8" Tube
  • 9/16" Tube

Tube Outlet

  • 1" Tube
  • 1/4" Tube
  • 3/4" Tube
  • 3/8" Tube
  • 9/16" Tube
Close

Typical Applications

  • Chemical Injection Skids
  • Hydraulic Control Panels
  • Hydrostatic Testing Equipment
  • Liquid Service Applications up to 20,000 psi / 1,379 bar
  • Water Jetting & Other General Industrial Applications
