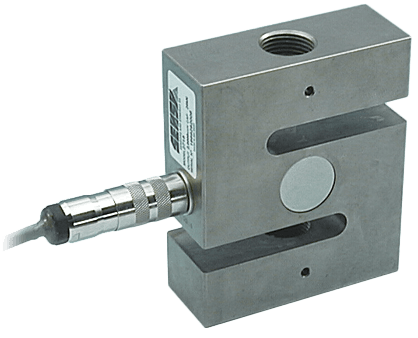

2715 Tension & Compression Load Cell

Brand: Sensy S.A.
Universal tension and compression load cell with high accuracy.
Features
  • Universal tension and compression load cell with high accuracy.
  • Wide range capacity: 20 kN (2000 kg) to 200 kN (20 tons)
  • Tension and compression
  • Easy to install
  • "S" Compact design
  • Protection IP 67
  • Material: nickel plated steel
  • Available options (non exhaustive list):
    • High service temperature (up to 180° C)
    • ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80° C Da
    • Cable output by cable gland
  • Also available as standard reference load cells following ISO 376
show more
Images are representations only.
Universal tension and compression load cell with high accuracy.
Features
  • Universal tension and compression load cell with high accuracy.
  • Wide range capacity: 20 kN (2000 kg) to 200 kN (20 tons)
  • Tension and compression
  • Easy to install
  • "S" Compact design
  • Protection IP 67
  • Material: nickel plated steel
  • Available options (non exhaustive list):
    • High service temperature (up to 180° C)
    • ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80° C Da
    • Cable output by cable gland
  • Also available as standard reference load cells following ISO 376

Specifications

Brand

Accuracy

  • 0.03% of Full Scale
  • 0.05% of Full Scale
  • 0.1% of Full Scale

Applications

  • Conveyors
  • Hoppers
  • Measurement
  • Reactors

Approvals & Certifications

  • ATEX Intrinsic Safety Ex II 1 GD Ex Ia IIC T6 or T4 Ga Ex Ia IIIC T80° C Da
  • CE

Cable Length

  • 10 to 32 feet (3 to 10 meters)

Capacity

  • 2000 kg to 20 Tons

Electrical Connectors

  • Cable

Enclosure, Body Material

  • Nickel-Plated Steel

Environmental Protection

  • IP67

Excitation Voltage

  • 10 Vdc

Linearity

  • Linearity Error: <± 0.025% of Full Scale (Class 0.03) to <± 0.1% of Full Scale (Class 0.1)

Load Limit

  • 120% of Full Scale

Operating Temperature

  • 180° C (356° F)

Repeatability

  • Error: <± 0.015% (Class 0.03) to <± 0.03% of Full Scale (Class 0.1)

Resistance

  • Input/Output: 352 ± 2 ohms

Sensitivity

  • Tolerance: <± 0.2% (Class 0.03) to <± 0.3% (Class 0.1)

Service Temperature

  • -30 to 70° C (-22° to 158° F)

Static Lateral Force

  • 50% of Full Scale

Storage Temperature

  • -50 to 85° C (-58° to 185° F)

Temperature Coefficient

  • <± 0.015% to <± 0.05% of Full Scale/10° C (18° F)
  • <± 0.023% to <± 0.035% of Full Scale/10° C (18° F)

Zero Balance

  • ± 0.02 mV/V
