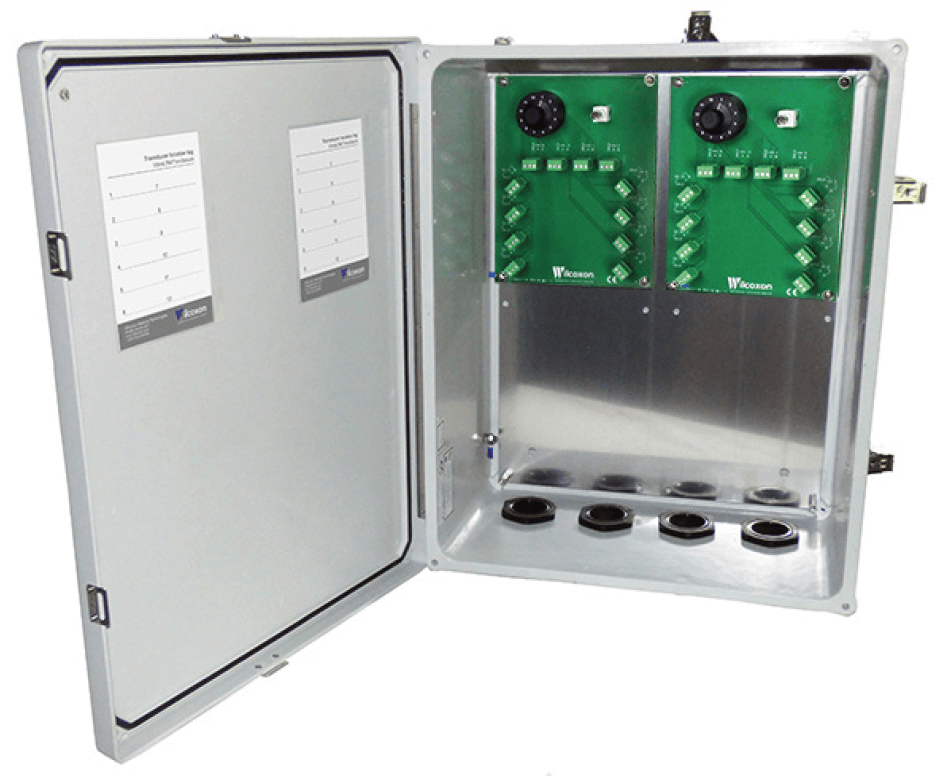

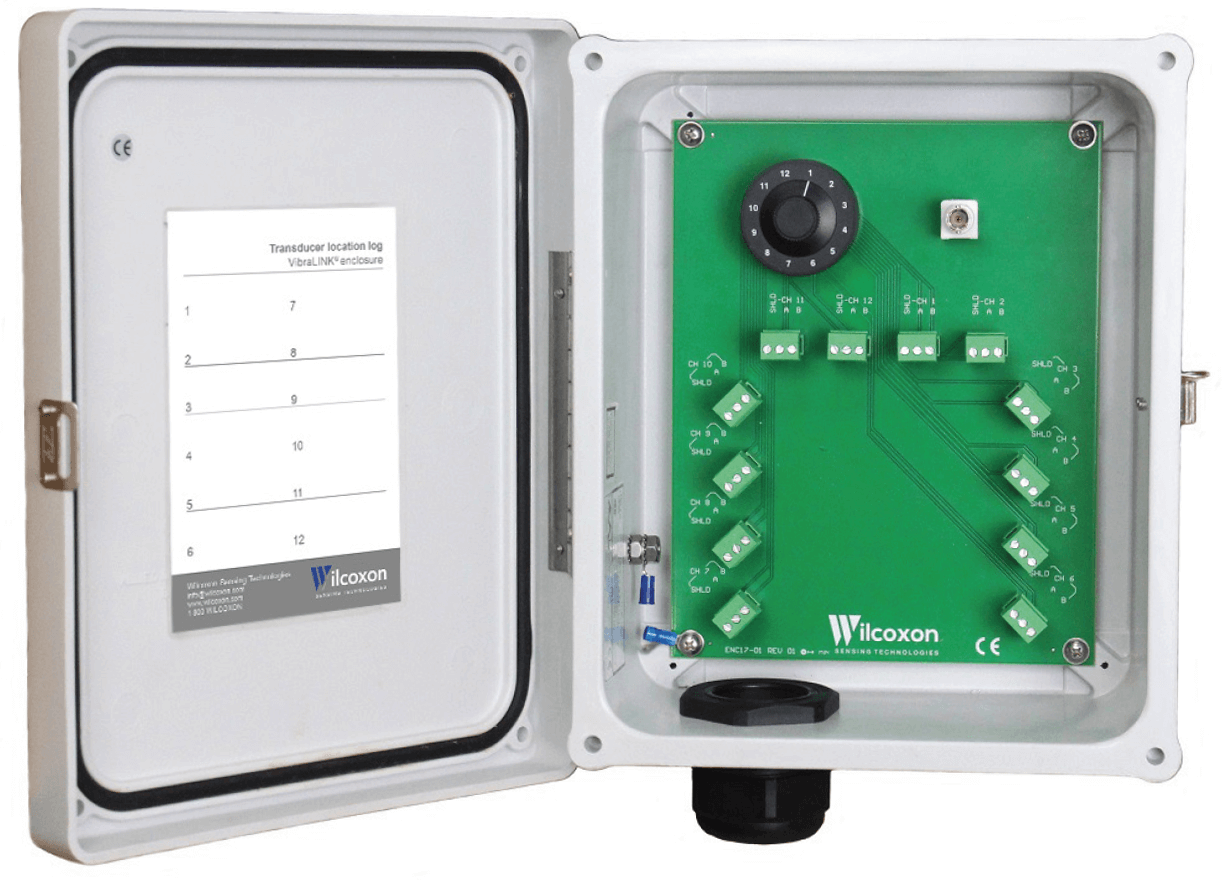

VibraLINK Lite Switchable Junction Box

Brand: Wilcoxon Sensing Technologies
VibraLINK Lite switchboxes (VLL) handle up to 48 inputs of standard IEPE sensors. Flexible design enables a single board to be configured for 6 or 12 channels. NEMA 4/4X rated enclosures are available in stainless steel to meet the requirements for food processing or fiberglass for most industrial applications. VibraLINK enclosures come standard with predrilled access holes for easy cable entry and exit with user-selected cable grips or conduits.

A BNC connector is included for compatibility with most popular data collectors, including the MachineryMate 800 meter. VL enclosures enable machinery health monitoring from a safe location, streamlining walkaround collection and reducing long cable costs.
Features
  • Up to 48 channels
  • 55% more internal space
  • Low cost
  • Durable and built to last
  • Lifetime warranty
  • BNC connector
  • For use with all IEPE sensors
  • Manufactured in an approved ISO 9001 facility
show more
Images are representations only.
VibraLINK Lite switchboxes (VLL) handle up to 48 inputs of standard IEPE sensors. Flexible design enables a single board to be configured for 6 or 12 channels. NEMA 4/4X rated enclosures are available in stainless steel to meet the requirements for food processing or fiberglass for most industrial applications. VibraLINK enclosures come standard with predrilled access holes for easy cable entry and exit with user-selected cable grips or conduits.

A BNC connector is included for compatibility with most popular data collectors, including the MachineryMate 800 meter. VL enclosures enable machinery health monitoring from a safe location, streamlining walkaround collection and reducing long cable costs.
Features
  • Up to 48 channels
  • 55% more internal space
  • Low cost
  • Durable and built to last
  • Lifetime warranty
  • BNC connector
  • For use with all IEPE sensors
  • Manufactured in an approved ISO 9001 facility

VibraLINK Lite

Channels

Size

Material

Cable Interface

Specifications

Approvals & Certifications

  • ISO 9001

Approvals & Certifications

  • CE

Channels

  • 12 to 48-Channels (Expandable) 20 x 16 x 8"
  • 6 to 12-Channels (Non-Expandable) Dimension 10 x 8 x 4"

Electrical Connectors

  • BNC Connector
  • Screw Terminal

Enclosure, Body Material

  • Fiberglass
  • Stainless Steel

Environmental Protection

  • Fiberglass: NEMA 4X
  • IP66
  • Steel: NEMA 4

Interface Connection

  • Cable Interface: Cable Grip
  • Cable Interface: Conduit

Materials of Construction

  • Hinge (Continuous Weld), Latch (Butterfly Knob): Stainless Steel

Mounting

  • Pole or Wall-Mountable Using Four-Corner Stainless Steel feet (Fiberglass Model Includes Configurable feet)

Sensor, Probe Type

  • Sensor Typical: IEPE
