M-675 Five-Valve Manifold

Brand: PGI International
  • Design: Soft Seat Five-Valve Wide Pattern Manifold
  • Inlet Connection: 1/2" NPT Female
  • Outlet Connection: Flanged
  • Test Ports: 1/4" NPT
  • Standard Features:
    • Acetal Resin (Delrin) Ball Seat
    • Teflon Pressure-Core Stem Seal for Low Temperatures
    • Max Pressure 6000 psi @ +200°F (+93°C)
    • Stainless Steel Body and Bonnet
      • 316 Stainless Steel meets the requirements of NACE MR0175/ISO 15156-36
  • Benefits:
    • Unique configuration for "no finger pinching" operation of all five valves
    • Easy access to both high and low side test / pressure ports
    • Back oriented vent port for safety
show more

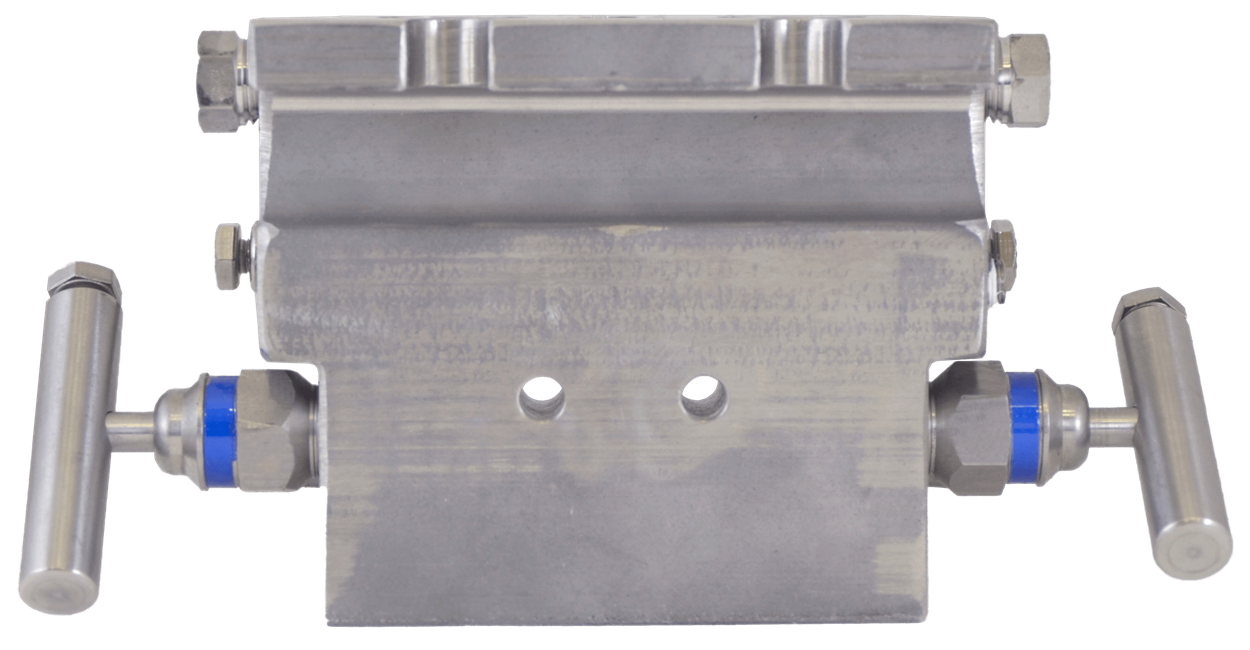

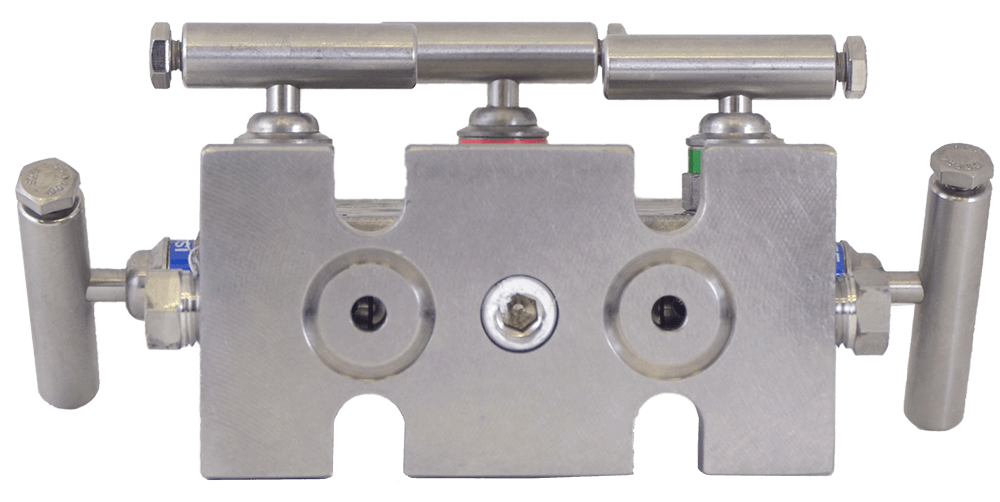

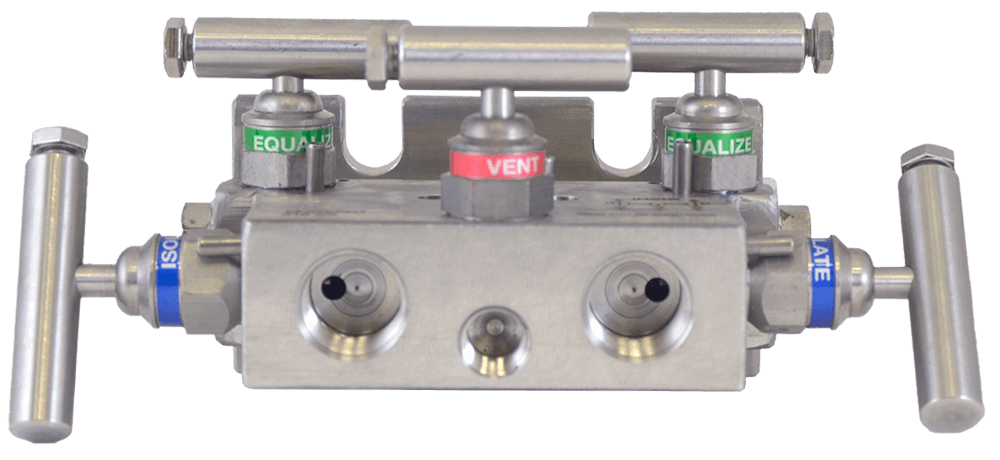

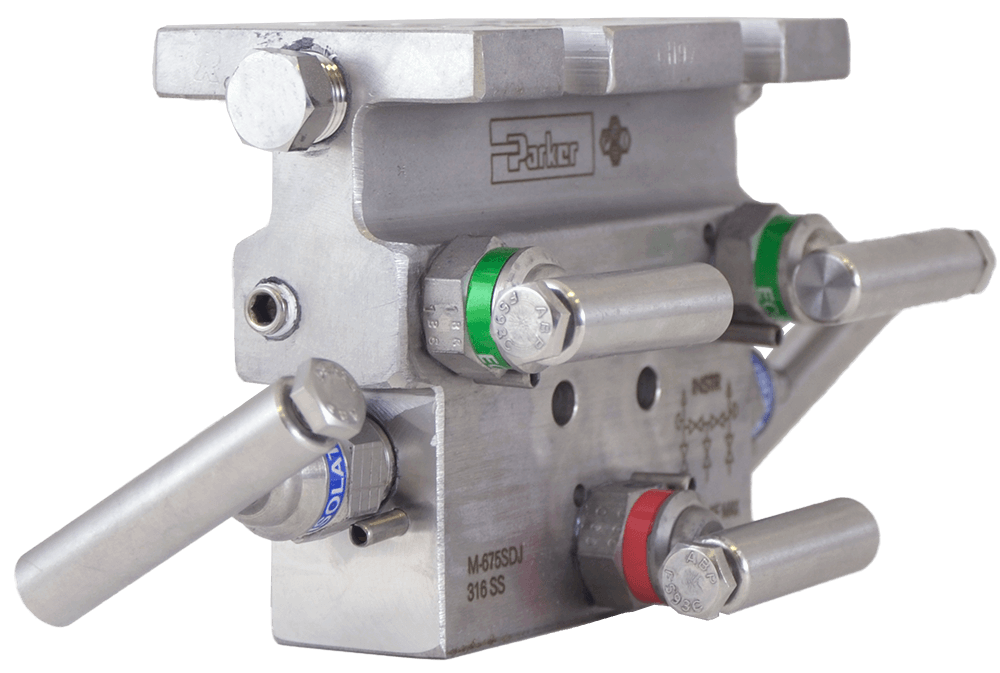

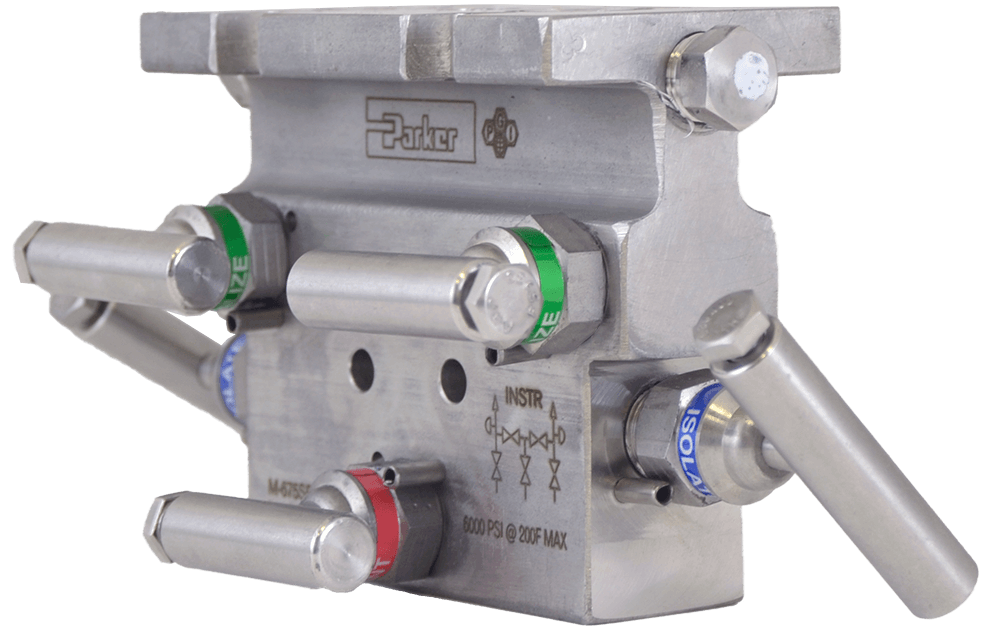

Images are representations only.
  • Design: Soft Seat Five-Valve Wide Pattern Manifold
  • Inlet Connection: 1/2" NPT Female
  • Outlet Connection: Flanged
  • Test Ports: 1/4" NPT
  • Standard Features:
    • Acetal Resin (Delrin) Ball Seat
    • Teflon Pressure-Core Stem Seal for Low Temperatures
    • Max Pressure 6000 psi @ +200°F (+93°C)
    • Stainless Steel Body and Bonnet
      • 316 Stainless Steel meets the requirements of NACE MR0175/ISO 15156-36
  • Benefits:
    • Unique configuration for "no finger pinching" operation of all five valves
    • Easy access to both high and low side test / pressure ports
    • Back oriented vent port for safety
M-675-SDJ
PGI 5-Valve Manifold, 1/2" FNPT x Flanged, NACE, Wide Body
3 In Stock
$530.72USD
$8.22 Shipping
M-675-CDT
PGI 5-Valve Manifold, 1/2" FNPT x Flange x 1/4" FNPT CS Delrin Seat 0.375" Orifice
6 - 8 weeks
$342.29USD
$8.22 Shipping

M-675

Inlet (Process) Connection Size

Outlet (Instrument) Connection Size

Body and Bonnet Material

Seat Material

Stem Packing Material
