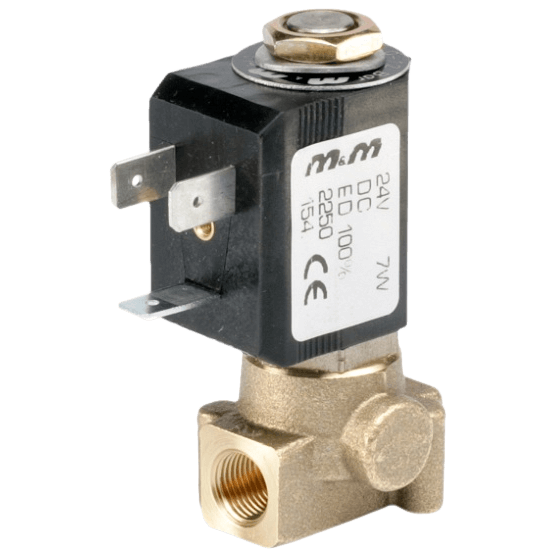

LC297 2/2-Way Latching Solenoid Valve, G 1/8"

Brand: M&M International - by Rotork
  • Media: Water, Oil, Air, Neutral gases
  • Media Temperature: -10° to 130° C (14° to 266° F)
  • Ambient temperature: -10° to 50° C (14° to 122° F)
  • Body Material: Brass (CW617N EN 12165) Low Lead Content
  • Orifice Material: Stainless Steel (1.4305 EN 10088/AISI 303)
  • Operator Material: Stainless Steel Tube, Brass Plunger
  • Seal Material: Food grade FKM
  • Coil Power: DC 3W
  • Protection Class: IP65 (with Connector and Gasket)
show more
  • Media: Water, Oil, Air, Neutral gases
  • Media Temperature: -10° to 130° C (14° to 266° F)
  • Ambient temperature: -10° to 50° C (14° to 122° F)
  • Body Material: Brass (CW617N EN 12165) Low Lead Content
  • Orifice Material: Stainless Steel (1.4305 EN 10088/AISI 303)
  • Operator Material: Stainless Steel Tube, Brass Plunger
  • Seal Material: Food grade FKM
  • Coil Power: DC 3W
  • Protection Class: IP65 (with Connector and Gasket)

Specifications

Approvals & Certifications

  • CE

BSP Connection

  • G 1/8" Female

Enclosure, Body Material

  • Brass (CW719R EN 12165) Low Lead Content

Environmental Protection

  • IP65 (with Connector & Gasket)

Seat / Seal Material

  • Seal Material: Foodgrade FKM
