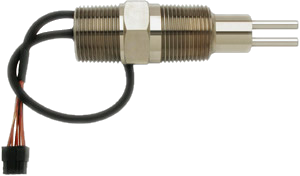

Spare Sensor, Kayden CLASSIC 810, 1/2" thru 2" MNPT, P02 Series

Brand: Kayden Instruments
Does not ship to OH, United States
  • Replacement Sensor for Kayden CLASSIC 810 Series
  • Process Connections - Male NPT
    • 1/2"
    • 3/4"
    • 1"
    • 1-1/4"
    • 1-1/2"
    • 2"
  • Insertion 'U' Lengths
    • 1.2" (3.0 cm)
    • 2" (5.0 cm)
    • 4" (10.1 cm)
    • 6" (15.2 cm)
    • 9" (22.8 cm)
    • 12" (30.4 cm)
    • 18" (45.7 cm)
    • Custom lengths from 2.5" to 120" (6.0 cm to 305 cm) in 1/2" (1 cm) increments
  • Adjustable Set Point Range
    • 0-254 feet/s, 0-77 meters/s
  • Input Power
    • 12-24 Vdc & 115-230 Vac, 50-60 Hz
  • Operating Pressure (Maximum)
    • CSA: 3480 psi, 24,000 kPa, 240 bar
    • CRN: 1990 psi, 13721 kPa, 137.2  bar
  • Temperature Range (Sensor)
    • -45° to 200° C, -50° to 392° F
  • Wetted Materials
    • 316 Stainless Steel
    • Other Metals Available
  • Sensor Connection
    • Molex 8-Pin
  • Approvals (with Classic 810 switch)
    • CSA, CRN, Single Seal, NACE
  • Replacement Sensor for Kayden CLASSIC 810 Series
  • Process Connections - Male NPT
    • 1/2"
    • 3/4"
    • 1"
    • 1-1/4"
    • 1-1/2"
    • 2"
  • Insertion 'U' Lengths
    • 1.2" (3.0 cm)
    • 2" (5.0 cm)
    • 4" (10.1 cm)
    • 6" (15.2 cm)
    • 9" (22.8 cm)
    • 12" (30.4 cm)
    • 18" (45.7 cm)
    • Custom lengths from 2.5" to 120" (6.0 cm to 305 cm) in 1/2" (1 cm) increments
  • Adjustable Set Point Range
    • 0-254 feet/s, 0-77 meters/s
  • Input Power
    • 12-24 Vdc & 115-230 Vac, 50-60 Hz
  • Operating Pressure (Maximum)
    • CSA: 3480 psi, 24,000 kPa, 240 bar
    • CRN: 1990 psi, 13721 kPa, 137.2  bar
  • Temperature Range (Sensor)
    • -45° to 200° C, -50° to 392° F
  • Wetted Materials
    • 316 Stainless Steel
    • Other Metals Available
  • Sensor Connection
    • Molex 8-Pin
  • Approvals (with Classic 810 switch)
    • CSA, CRN, Single Seal, NACE
Close

Displaying prices & availability for Ohio, United States in USD. Change location or currency.

Models matching criteria: 34
P02-RAE-0020
KAYDEN CLASSIC 810 Series Thermal Flow, Level, Interface Sensor, 1" NPT, 2"U, SST, CRN, Rev 5, 2019 view more
  • Process Connection: 1" MNPT
  • Insertion 'U' Length: 2", 5.0 cm
  • Adjustable Set Point Range: 0-254 feet/s, 0-77 meters/s
  • Input Power: 12-24 VDC & 115-230 VAC, 50-60 Hz
  • Operating Pressure (Maximum)
    • 316 SS (Standard): 2053 psi, 14,155 kPa, 141.5 bar
    • Titanium (Custom): 1165 psi, 8032 kPa, 80.32 bar
    • Hastelloy (Custom): 2290 psi, 15,789 kPa, 157.9 bar
  • Temperature Range (Sensor): -45°C to 200°C, -50°F to 392°F
  • Wetted Materials
    • Standard: 316 Stainless Steel
    • Custom: Titanium or Hastelloy
  • Outputs/Communications
    • Two Independent Relays (SPDT), 4-20 mA, Modbus
In Stock 2 - 4 weeks
$358.10 USD
Does not ship to OH, United States
P02-RAG-0090-M-CRN
KAYDEN CLASSIC 810 Series Thermal Flow, Level, Interface Sensor, 1-1/2" NPT, 9"U, SST, CRN view more
  • Process Connection: 1-1/2" MNPT
  • Insertion 'U' Length: 9", 22.9 cm
  • Operating Pressure (Maximum)
    • 1165 psi, 8032 kPa, 80.3 bar
  • Temperature Range (Sensor): -45°C to 200°C, -50°F to 392°F
  • FM, CSA, CRN, Single Seal, NACE, NEMA 4X
In Stock 2 - 4 weeks
Does not ship to OH, United States
P02-RAC-0020
KAYDEN CLASSIC 810 Series Thermal Flow, Level, Interface Sensor, 1/2" NPT, 2"U, SST, CRN-2, Rev 9 view more
  • Process Connection: 1/2" MNPT
  • Insertion 'U' Length: 2", 5.08 cm
  • Adjustable Set Point Range: 0-254 feet/s, 0-77 meters/s
  • Input Power: 12-24 VDC & 115-230 VAC, 50-60 Hz
  • Operating Pressure (Maximum)
    • 316 SS (Standard): 2053 psi, 14155 kPa, 141.5 bar
    • Titanium (Custom): 1165 psi, 8032 kPa, 80.32 bar
    • Hastelloy (Custom): 2290 psi, 15789 kPa, 157.9 bar
  • Temperature Range (Sensor): -45°C to 200°C, -50°F to 392°F
  • Wetted Materials
    • Standard: 316 Stainless Steel
    • Custom: Titanium or Hastelloy
25+ In Stock
$358.10 USD
Does not ship to OH, United States
P02-RAD-0012
KAYDEN CLASSIC 810 Series Thermal Flow, Level, Interface Sensor, 3/4" NPT, 1.2"U, SST, CRN, Rev 6 view more
  • Process Connection: 3/4" MNPT
  • Insertion 'U' Length: 1.2", 3.0 cm
  • Adjustable Set Point Range: 0-254 feet/s, 0-77 meters/s
  • Input Power: 12-24 VDC & 115-230 VAC, 50-60 Hz
  • Operating Pressure (Maximum)
    • 316 SS (Standard): 2053 psi, 14,155 kPa, 141.5 bar
    • Titanium (Custom): 1165 psi, 8032 kPa, 80.32 bar
    • Hastelloy (Custom): 2290 psi, 15,789 kPa, 157.9 bar
  • Temperature Range (Sensor): -45°C to 200°C, -50°F to 392°F
  • Wetted Materials
    • Standard: 316 Stainless Steel
    • Custom: Titanium or Hastelloy
  • Outputs/Communications
    • Two Independent Relays (SPDT), 4-20 mA, Modbus
25+ In Stock
$358.10 USD
Does not ship to OH, United States
P02-RAC-0030
KAYDEN CLASSIC 810 Series Thermal Flow, Level, Interface Sensor, 1/2" NPT, 3"U, SST, CRN, Rev 9 view more
  • Process Connection: 1/2" MNPT
  • Insertion 'U' Length: 3", 7.6 cm
  • Adjustable Set Point Range: 0-254 feet/s, 0-77 meters/s
  • Input Power: 12-24 VDC & 115-230 VAC, 50-60 Hz
  • Operating Pressure (Maximum)
    • 316 SS (Standard): 2053 psi, 14155 kPa, 141.5 bar
    • Titanium (Custom): 1165 psi, 8032 kPa, 80.32 bar
    • Hastelloy (Custom): 2290 psi, 15789 kPa, 157.9 bar
  • Temperature Range (Sensor): -45°C to 200°C, -50°F to 392°F
  • Wetted Materials
    • Standard: 316 Stainless Steel
    • Custom: Titanium or Hastelloy
  • Outputs/Communications
    • Two Independent Relays (SPDT), 4-20 mA, Modbus
21 In Stock
$391.05 USD
Does not ship to OH, United States
P02-RAE-0012
KAYDEN CLASSIC 810 Series Thermal Flow, Level, Interface Sensor, 1" NPT, 1.2"U, SST, CRN, Rev 5 2019 view more
  • Process Connections: 1" MNPT
  • Insertion 'U' Length: 1.2", 3.0 cm
  • Adjustable Set Point Range: 0-254 feet/s, 0-77 meters/s
  • Input Power: 12-24 VDC & 115-230 VAC, 50-60 Hz
  • Operating Pressure (Maximum):
    • 316 SS (Standard): 2053 psi, 14155 kPa, 141.5 bar
    • Titanium (Custom): 1165 psi, 8032 kPa, 80.32 bar
    • Hastelloy (Custom): 2290 psi, 15789 kPa, 157.9 bar
  • Temperature Range (Sensor): -45°C to 200°C, -50°F to 392°F
  • Wetted Materials:
    • Standard: 316 Stainless Steel
    • Custom: Titanium or Hastelloy
  • Outputs/Communications:
    • Two Independent Relays (SPDT), 4-20 mA, Modbus
16 In Stock
$358.10 USD
Does not ship to OH, United States
P02-RAD-0030
KAYDEN CLASSIC 810 Series Thermal Flow, Level, Interface Sensor, 3/4" NPT, 3"U, SST, CRN, Rev 6 view more
  • Process Connection: 3/4" MNPT
  • Insertion 'U' Length: 3", 7.6 cm
  • Adjustable Set Point Range: 0-254 feet/s, 0-77 meters/s
  • Input Power: 12-24 VDC & 115-230 VAC, 50-60 Hz
  • Operating Pressure (Maximum)
    • 316 SS (Standard): 2053 psi, 14,155 kPa, 141.5 bar
    • Titanium (Custom): 1165 psi, 8032 kPa, 80.32 bar
    • Hastelloy (Custom): 2290 psi, 15,789 kPa, 157.9 bar
  • Temperature Range (Sensor): -45°C to 200°C, -50°F to 392°F
  • Wetted Materials
    • Standard: 316 Stainless Steel
    • Custom: Titanium or Hastelloy
  • Outputs/Communications
    • Two Independent Relays (SPDT), 4-20 mA, Modbus
15 In Stock
$391.05 USD
Does not ship to OH, United States
P02-RAD-0020
KAYDEN CLASSIC 810 Series Thermal Flow, Level, Interface Sensor, 3/4" NPT, 2"U, SST, CRN, Rev 6 view more
  • Process Connection: 3/4" MNPT
  • Insertion 'U' Length: 2", 5.0 cm
  • Adjustable Set Point Range: 0-254 feet/s, 0-77 meters/s
  • Input Power: 12-24 VDC & 115-230 VAC, 50-60 Hz
  • Operating Pressure (Maximum)
    • 316 SS (Standard): 2053 psi, 14,155 kPa, 141.5 bar
    • Titanium (Custom): 1165 psi, 8032 kPa, 80.32 bar
    • Hastelloy (Custom): 2290 psi, 15,789 kPa, 157.9 bar
  • Temperature Range (Sensor): -45°C to 200°C, -50°F to 392°F
  • Wetted Materials
    • Standard: 316 Stainless Steel
    • Custom: Titanium or Hastelloy
  • Outputs/Communications
    • Two Independent Relays (SPDT), 4-20 mA, Modbus
12 In Stock
$358.10 USD
Does not ship to OH, United States
P02-RAC-0040
KAYDEN CLASSIC 810 Series Thermal Flow, Level, Interface Sensor, 1/2" NPT, 4"U, SST, CRN, Rev 9 view more
  • Process Connection: 1/2" MNPT
  • Insertion 'U' Length: 4", 10.1 cm
  • Adjustable Set Point Range: 0-254 feet/s, 0-77 meters/s
  • Input Power: 12-24 VDC & 115-230 VAC, 50-60 Hz
  • Operating Pressure (Maximum)
    • 316 SS (Standard): 2053 psi, 14155 kPa, 141.5 bar
    • Titanium (Custom): 1165 psi, 8032 kPa, 80.32 bar
    • Hastelloy (Custom): 2290 psi, 15789 kPa, 157.9 bar
  • Temperature Range (Sensor): -45°C to 200°C, -50°F to 392°F
  • Wetted Materials
    • Standard: 316 Stainless Steel
    • Custom: Titanium or Hastelloy
12 In Stock
$423.28 USD
Does not ship to OH, United States
P02-RAE-0060
KAYDEN CLASSIC 810 Series Thermal Flow, Level, Interface Sensor, 1" NPT, 6"U, SST, CRN, Rev 5 2019 view more
  • Process Connection: 1" MNPT
  • Insertion 'U' Length: 6", 15.2 cm
  • Adjustable Set Point Range: 0-254 feet/s, 0-77 meters/s
  • Input Power: 12-24 VDC & 115-230 VAC, 50-60 Hz
  • Operating Pressure (Maximum)
    • 316 SS (Standard): 2053 psi, 14,155 kPa, 141.5 bar
    • Titanium (Custom): 1165 psi, 8032 kPa, 80.32 bar
    • Hastelloy (Custom): 2290 psi, 15,789 kPa, 157.9 bar
  • Temperature Range (Sensor): -45°C to 200°C, -50°F to 392°F
  • Wetted Materials
    • Standard: 316 Stainless Steel
    • Custom: Titanium or Hastelloy
  • Outputs/Communications
    • Two Independent Relays (SPDT), 4-20 mA, Modbus
12 In Stock
$488.45 USD
Does not ship to OH, United States
P02-RAD-0120
KAYDEN CLASSIC 810 Series Thermal Flow, Level, Interface Sensor, 3/4" NPT, 12"U, SST, CRN, Rev 6 view more
  • Process Connection: 3/4" MNPT
  • Insertion 'U' Length: 12", 30.4 cm
  • Adjustable Set Point Range: 0-254 feet/s, 0-77 meters/s
  • Input Power: 12-24 VDC & 115-230 VAC, 50-60 Hz
  • Operating Pressure (Maximum)
    • 316 SS (Standard): 2053 psi, 14,155 kPa, 141.5 bar
    • Titanium (Custom): 1165 psi, 8032 kPa, 80.32 bar
    • Hastelloy (Custom): 2290 psi, 15,789 kPa, 157.9 bar
  • Temperature Range (Sensor): -45°C to 200°C, -50°F to 392°F
  • Wetted Materials
    • Standard: 316 Stainless Steel
    • Custom: Titanium or Hastelloy
11 In Stock
$683.26 USD
Does not ship to OH, United States
P02-RAE-0120
KAYDEN CLASSIC 810 Series Thermal Flow, Level, Interface Sensor, 1" NPT, 12"U, SST, CRN, Rev 5 2019 view more
  • Process Connection: 1" MNPT
  • Insertion 'U' Length: 12", 30.4 cm
  • Adjustable Set Point Range: 0-254 feet/s, 0-77 meters/s
  • Input Power: 12-24 VDC & 115-230 VAC, 50-60 Hz
  • Operating Pressure (Maximum)
    • 316 SS (Standard): 2053 psi, 14,155 kPa, 141.5 bar
    • Titanium (Custom): 1165 psi, 8032 kPa, 80.32 bar
    • Hastelloy (Custom): 2290 psi, 15,789 kPa, 157.9 bar
  • Temperature Range (Sensor): -45°C to 200°C, -50°F to 392°F
  • Wetted Materials
    • Standard: 316 Stainless Steel
    • Custom: Titanium or Hastelloy
  • Outputs/Communications
    • Two Independent Relays (SPDT), 4-20 mA, Modbus
11 In Stock
$683.26 USD
Does not ship to OH, United States
P02-RAE-0090
KAYDEN CLASSIC 810 Series Thermal Flow, Level, Interface Sensor, 1" NPT, 9"U, SST, CRN, Rev 5 2019 view more
  • Process Connections: 1" MNPT
  • Insertion 'U' Length: 9", 22.8 cm
  • Adjustable Set Point Range: 0-254 feet/s, 0-77 meters/s
  • Input Power: 12-24 VDC & 115-230 VAC, 50-60 Hz
  • Operating Pressure (Maximum)
    • 316 SS (Standard): 2053 psi, 14,155 kPa, 141.5 bar
    • Titanium (Custom): 1165 psi, 8032 kPa, 80.32 bar
    • Hastelloy (Custom): 2290 psi, 15,789 kPa, 157.9 bar
  • Temperature Range (Sensor): -45°C to 200°C, -50°F to 392°F
  • Wetted Materials
    • Standard: 316 Stainless Steel
    • Custom: Titanium or Hastelloy
  • Outputs/Communications
    • Two Independent Relays (SPDT), 4-20 mA, Modbus
10 In Stock
$585.85 USD
Does not ship to OH, United States
P02-RAC-0012
KAYDEN CLASSIC 810 Series Thermal Flow, Level, Interface Sensor, 1/2" NPT, 1.2"U, SST, CRN, Rev 9 view more
  • Process Connection: 1/2" MNPT
  • Insertion 'U' Length: 1.2", 3.0 cm
  • Adjustable Set Point Range
    • 0-254 feet/s
    • 0-77 meters/s
  • Input Power: 12-24 VDC & 115-230 VAC, 50-60 Hz
  • Operating Pressure - Maximum
    • 316 Stainless Steel (Standard)
      • 2053 psi
      • 14,155 kPa
      • 141.5 bar
    • Titanium (Custom): 1165 psi, 8032 kPa, 80.32 bar
    • Hastelloy (Custom): 2290 psi, 15,789 kPa, 157.9 bar
  • Temperature Range - Sensor
    • -45° C to 200° C
    • -50° F to 392° F
  • Wetted Materials
    • Standard: 316 Stainless Steel
    • Custom: Titanium or Hastelloy
9 In Stock
$358.10 USD
Does not ship to OH, United States
P02-RAE-0030
KAYDEN CLASSIC 810 Series Thermal Flow, Level, Interface Sensor, 1" NPT, 3"U, SST, CRN, Rev 5 2019 view more
  • Process Connection: 1" MNPT
  • Insertion 'U' Length: 3", 7.6 cm
  • Adjustable Set Point Range: 0-254 feet/s, 0-77 meters/s
  • Input Power: 12-24 VDC & 115-230 VAC, 50-60 Hz
  • Operating Pressure (Maximum)
    • 316 SS (Standard): 2053 psi, 14,155 kPa, 141.5 bar
    • Titanium (Custom): 1165 psi, 8032 kPa, 80.32 bar
    • Hastelloy (Custom): 2290 psi, 15,789 kPa, 157.9 bar
  • Temperature Range (Sensor): -45°C to 200°C, -50°F to 392°F
  • Wetted Materials
    • Standard: 316 Stainless Steel
    • Custom: Titanium or Hastelloy
  • Outputs/Communications
    • Two Independent Relays (SPDT), 4-20 mA, Modbus
7 In Stock
$391.05 USD
Does not ship to OH, United States
P02-RAE-0040
KAYDEN CLASSIC 810 Series Thermal Flow, Level, Interface Sensor, 1" NPT, 4"U, SST, CRN, Rev 5 2019 view more
  • Process Connection: 1" MNPT
  • Insertion 'U' Length: 4", 10.1 cm
  • Adjustable Set Point Range: 0-254 feet/s, 0-77 meters/s
  • Input Power: 12-24 VDC & 115-230 VAC, 50-60 Hz
  • Operating Pressure (Maximum)
    • 316 SS (Standard): 2053 psi, 14,155 kPa, 141.5 bar
    • Titanium (Custom): 1165 psi, 8032 kPa, 80.32 bar
    • Hastelloy (Custom): 2290 psi, 15,789 kPa, 157.9 bar
  • Temperature Range (Sensor): -45°C to 200°C, -50°F to 392°F
  • Wetted Materials
    • Standard: 316 Stainless Steel
    • Custom: Titanium or Hastelloy
  • Outputs/Communications
    • Two Independent Relays (SPDT), 4-20 mA, Modbus
7 In Stock
$423.28 USD
Does not ship to OH, United States
P02-RAC-0060
KAYDEN CLASSIC 810 Series Thermal Flow, Level, Interface Sensor, 1/2" NPT, 6"U, SST, CRN, Rev 9 view more
  • Process Connection: 1/2" MNPT
  • Insertion 'U' Length: 6", 15.2 cm
  • Adjustable Set Point Range: 0-254 feet/s, 0-77 meters/s
  • Input Power: 12-24 VDC & 115-230 VAC, 50-60 Hz
  • Operating Pressure (Maximum)
    • 316 SS (Standard): 2053 psi, 14155 kPa, 141.5 bar
    • Titanium (Custom): 1165 psi, 8032 kPa, 80.32 bar
    • Hastelloy (Custom): 2290 psi, 15,789 kPa, 157.9 bar
  • Temperature Range (Sensor): -45°C to 200°C, -50°F to 392°F
  • Wetted Materials
    • Standard: 316 Stainless Steel
    • Custom: Titanium or Hastelloy
6 In Stock
$488.45 USD
Does not ship to OH, United States
P02-RAC-0090
KAYDEN CLASSIC 810 Series Thermal Flow, Level, Interface Sensor, 1/2" NPT, 9"U, SST, CRN, Rev 9 view more
  • Process Connection: 1/2" MNPT
  • Insertion 'U' Length: 9", 22.8 cm
  • Adjustable Set Point Range: 0-254 feet/s, 0-77 meters/s
  • Input Power: 12-24 VDC & 115-230 VAC, 50-60 Hz
  • Operating Pressure (Maximum)
    • 316 SS (Standard): 2053 psi, 14155 kPa, 141.5 bar
    • Titanium (Custom): 1165 psi, 8032 kPa, 80.32 bar
    • Hastelloy (Custom): 2290 psi, 15,789 kPa, 157.9 bar
  • Temperature Range (Sensor): -45°C to 200°C, -50°F to 392°F
  • Wetted Materials
    • Standard: 316 Stainless Steel
    • Custom: Titanium or Hastelloy
  • Outputs/Communications
    • Two Independent Relays (SPDT), 4-20 mA, Modbus
6 In Stock
$585.85 USD
Does not ship to OH, United States
P02-RAD-0090
KAYDEN CLASSIC 810 Series Thermal Flow, Level, Interface Sensor, 3/4" NPT, 9"U, SST, CRN, Rev 6 view more
  • Process Connection: 3/4" MNPT
  • Insertion 'U' Length: 9", 22.8 cm
  • Adjustable Set Point Range: 0-254 feet/s, 0-77 meters/s
  • Input Power: 12-24 VDC & 115-230 VAC, 50-60 Hz
  • Operating Pressure (Maximum)
    • 316 SS (Standard): 2053 psi, 14155 kPa, 141.5 bar
    • Titanium (Custom): 1165 psi, 8032 kPa, 80.32 bar
    • Hastelloy (Custom): 2290 psi, 15789 kPa, 157.9 bar
  • Temperature Range (Sensor): -45°C to 200°C, -50°F to 392°F
  • Wetted Materials
    • Standard: 316 Stainless Steel
    • Custom: Titanium or Hastelloy
  • Outputs/Communications
    • Two Independent Relays (SPDT), 4-20 mA, Modbus
6 In Stock
$585.85 USD
Does not ship to OH, United States
P02-RAD-0060
KAYDEN CLASSIC 810 Series Thermal Flow, Level, Interface Sensor, 3/4" NPT, 6"U, SST, CRN, Rev 6 view more
  • Process Connection: 3/4" MNPT
  • Insertion 'U' Length: 6", 15.2 cm
  • Adjustable Set Point Range: 0-254 feet/s, 0-77 meters/s
  • Input Power: 12-24 VDC & 115-230 VAC, 50-60 Hz
  • Operating Pressure (Maximum)
    • 316 SS (Standard): 2053 psi, 14155 kPa, 141.5 bar
    • Titanium (Custom): 1165 psi, 8032 kPa, 80.32 bar
    • Hastelloy (Custom): 2290 psi, 15789 kPa, 157.9 bar
  • Temperature Range (Sensor): -45°C to 200°C, -50°F to 392°F
  • Wetted Materials
    • Standard: 316 Stainless Steel
    • Custom: Titanium or Hastelloy
  • Outputs/Communications
    • Two Independent Relays (SPDT), 4-20 mA, Modbus
5 In Stock
$488.45 USD
Does not ship to OH, United States
P02-RAF-0020
KAYDEN CLASSIC 810 Series Thermal Flow, Level, Interface Sensor, 1-1/4" NPT, 2"U, SST view more
  • Process Connection: 1-1/4" MNPT
  • Insertion 'U' Length: 2", 5.08 cm
  • Operating Pressure (Maximum)
    • 316 SS (Standard): 2053 psi, 14,155 kPa, 141.5 bar
    • Titanium (Custom): 1165 psi, 8032 kPa, 80.32 bar
    • Hastelloy (Custom): 2290 psi, 15,789 kPa, 157.9 bar
  • Temperature Range (Sensor): -45°C to 200°C, -50°F to 392°F
    • FM, CSA, CRN, Single Seal, NACE, NEMA 4X
    [/li]
5 In Stock
$505.64 USD
Does not ship to OH, United States
P02-RAD-0040
KAYDEN CLASSIC 810 Series Thermal Flow, Level, Interface Sensor, 3/4" NPT, 4"U, SST, CRN, Rev 6 view more
  • Process Connection: 3/4" MNPT
  • Insertion 'U' Length: 4", 10.1 cm
  • Adjustable Set Point Range: 0-254 feet/s, 0-77 meters/s
  • Input Power: 12-24 VDC & 115-230 VAC, 50-60 Hz
  • Operating Pressure (Maximum)
    • 316 SS (Standard): 2053 psi, 14,155 kPa, 141.5 bar
    • Titanium (Custom): 1165 psi, 8032 kPa, 80.32 bar
    • Hastelloy (Custom): 2290 psi, 15,789 kPa, 157.9 bar
  • Temperature Range (Sensor): -45°C to 200°C, -50°F to 392°F
  • Wetted Materials
    • Standard: 316 Stainless Steel
    • Custom: Titanium or Hastelloy
  • Outputs/Communications
    • Two Independent Relays (SPDT), 4-20 mA, Modbus
4 In Stock
$423.28 USD
Does not ship to OH, United States
P02-RAC-I0100
KAYDEN CLASSIC 810 Series Thermal Flow, Level, Interface Sensor, 1/2" NPT, 10"U, SST, CRN view more
  • Process Connection: 1/2" MNPT
  • Insertion 'U' Length: 10", 25.4 cm
  • Adjustable Set Point Range: 0-254 feet/s, 0-77 meters/s
  • Input Power: 12-24 VDC & 115-230 VAC, 50-60 Hz
  • Operating Pressure (Maximum)
    • 316 SS (Standard): 2053 psi, 14155 kPa, 141.5 bar
    • Titanium (Custom): 1165 psi, 8032 kPa, 80.32 bar
    • Hastelloy (Custom): 2290 psi, 15,789 kPa, 157.9 bar
  • Temperature Range (Sensor): -45°C to 200°C, -50°F to 392°F
  • Wetted Materials
    • Standard: 316 Stainless Steel
    • Custom: Titanium or Hastelloy
  • Outputs/Communications
    • Two Independent Relays (SPDT), 4-20 mA, Modbus
2 In Stock
$621.66 USD
Does not ship to OH, United States
Non-Cancellable / Non-Refundable
P02-RAD-I0300
KAYDEN CLASSIC 810 Series Thermal Flow, Level, Interface Sensor, 3/4" NPT, 30"U, SST, CRN, Rev 6 view more
  • Process Connection: 3/4" MNPT
  • Insertion 'U' Length: Custom 30", 76.2 cm
  • Adjustable Set Point Range: 0-254 feet/s, 0-77 meters/s
  • Input Power: 12-24 VDC & 115-230 VAC, 50-60 Hz
  • Operating Pressure (Maximum)
    • 316 SS (Standard): 2053 psi, 14,155 kPa, 141.5 bar
    • Titanium (Custom): 1165 psi, 8032 kPa, 80.32 bar
    • Hastelloy (Custom): 2290 psi, 15,789 kPa, 157.9 bar
  • Temperature Range (Sensor): -45°C to 200°C, -50°F to 392°F
  • Wetted Materials
    • Standard: 316 Stainless Steel
    • Custom: Titanium or Hastelloy
2 In Stock
$1,280.57 USD
Does not ship to OH, United States
Non-Cancellable / Non-Refundable
P02-RAE-0180
KAYDEN CLASSIC 810 Series Thermal Flow, Level, Interface Sensor, 1" NPT, 18"U, SST, CRN, Rev 5, 2019 view more
  • Process Connection: 1" MNPT
  • Insertion 'U' Length: 18", 45.7 cm
  • Adjustable Set Point Range: 0-254 feet/s, 0-77 meters/s
  • Input Power: 12-24 VDC & 115-230 VAC, 50-60 Hz
  • Operating Pressure (Maximum)
    • 316 SS (Standard): 2053 psi, 14,155 kPa, 141.5 bar
    • Titanium (Custom): 1165 psi, 8032 kPa, 80.32 bar
    • Hastelloy (Custom): 2290 psi, 15,789 kPa, 157.9 bar
  • Temperature Range (Sensor): -45°C to 200°C, -50°F to 392°F
  • Wetted Materials
    • Standard: 316 Stainless Steel
    • Custom: Titanium or Hastelloy
  • Outputs/Communications
    • Two Independent Relays (SPDT), 4-20 mA, Modbus
1 In Stock
$878.06 USD
Does not ship to OH, United States
P02-RAG-I00175-M-CRN
KAYDEN CLASSIC 810 Series Thermal Flow, Level, Interface Sensor, 1-1/2" NPT, 1.75"U, SST, CRN view more
  • Process Connection: 1-1/2" MNPT
  • Insertion 'U' Length: Custom 17.5", 44.5cm
  • Operating Pressure (Maximum)
    • 1165 psi, 8032 kPa, 80.3 bar
  • Temperature Range (Sensor): -45°C to 200°C, -50°F to 392°F
  • FM, CSA, CRN, Single Seal, NACE, NEMA 4X
9 In Stock
Does not ship to OH, United States
P02-RAF-0012
KAYDEN CLASSIC 810 Series Thermal Flow, Level, Interface Sensor, 1-1/4" NPT, 1.2"U, SST
4 In Stock
Does not ship to OH, United States
P02-RAG-0030
KAYDEN CLASSIC 810 Series Thermal Flow, Level, Interface Sensor, 1-1/2" NPT, 3"U, SST, CRN view more
  • Process Connections 1-1/2" MNPT
  • Insertion 'U' Length: 3", 7.6 cm
  • Adjustable Set Point Range: 0-254 feet/s, 0-77 meters/s
  • Input Power: 12-24 VDC & 115-230 VAC, 50-60 Hz
  • Operating Pressure (Maximum): 1165 psi, 8032 kPa, 80.3 bar
  • Temperature Range (Sensor): -45°C to 200°C, -50°F to 392°F
  • Wetted Materials
    • Standard: 316 Stainless Steel
  • Outputs/Communications
    • Two Independent Relays (SPDT), 4-20 mA, Modbus
  • FM, CSA, CRN, Single Seal, NACE, NEMA 4
3 In Stock
Does not ship to OH, United States
P02-RAG-0012
KAYDEN CLASSIC 810 Series Thermal Flow, Level, Interface Sensor, 1-1/2" NPT, 1.2"U, SST, CRN
3 In Stock
Does not ship to OH, United States
P02-RAG-0020
KAYDEN CLASSIC 810 Series Thermal Flow, Level, Interface Sensor, 1-1/2" NPT, 2"U, SST, CRN view more
  • Process Connection: 1-1/2" MNPT
  • Insertion 'U' Length: 2", 5.08 cm
  • Adjustable Set Point Range: 0-254 feet/s, 0-77 meters/s
  • Input Power: 12-24 VDC & 115-230 VAC, 50-60 Hz
  • Operating Pressure (Maximum): 1165 psi, 8032 kPa, 80.3 bar
  • Temperature Range (Sensor): -45°C to 200°C, -50°F to 392°F
  • Wetted Materials
    • Standard: 316 Stainless Steel
  • Outputs/Communications
    • Two Independent Relays (SPDT), 4-20 mA, Modbus
  • Meets Agency Approvals: UL, FM, CSA, CRN, Single Seal, NACE, NEMA 4
2 In Stock
Does not ship to OH, United States
P02-RAF-0030
KAYDEN CLASSIC 810 Series Thermal Flow, Level, Interface Sensor, 1-1/4" NPT, 3"U, SST view more
  • Process Connection: 1-1/4" MNPT
  • Insertion 'U' Length: 3", 7.62 cm
  • Operating Pressure (Maximum)
    • 316 SS (Standard): 2053 psi, 14,155 kPa, 141.5 bar
    • Titanium (Custom): 1165 psi, 8032 kPa, 80.32 bar
    • Hastelloy (Custom): 2290 psi, 15,789 kPa, 157.9 bar
  • Temperature Range (Sensor): -45°C to 200°C, -50°F to 392°F
    • FM, CSA, CRN, Single Seal, NACE, NEMA 4X
    [/li]
2 In Stock
Does not ship to OH, United States
P02-RAG-I0045-M-CRN
KAYDEN CLASSIC 810 Series Thermal Flow, Level, Interface Sensor, 1-1/2" NPT, 4.5"U, SST, CRN view more
  • Process Connection: 1-1/2" MNPT
  • Insertion 'U' Length: 4.5", 11.4 cm
  • Operating Pressure (Maximum): 1165 psi, 8032 kPa, 80.3 bar
  • Temperature Range (Sensor): -45°C to 200°C, -50°F to 392°F
  • FM, CSA, CRN, Single Seal, NACE, NEMA 4
2 In Stock
Does not ship to OH, United States
P02-RAG-0040-M-CRN
KAYDEN CLASSIC 810 Series Thermal Flow, Level, Interface Sensor, 1-1/2" NPT, 4"U, SST, CRN view more
  • Process Connection: 1-1/2" MNPT
  • Insertion 'U' Length: 4", 10.2 cm
  • Operating Pressure (Maximum)
    • 1165 psi, 8032 kPa, 80.3 bar
  • Temperature Range (Sensor): -45°C to 200°C, -50°F to 392°F
  • FM, CSA, CRN, Single Seal, NACE, NEMA 4X
In Stock 2 - 4 weeks
Does not ship to OH, United States
P02-RAH-0020
KAYDEN CLASSIC 810 Series Thermal Flow, Level, Interface Sensor, 2" NPT, 2"U, SST
2 - 4 weeks
Does not ship to OH, United States
Close

Specifications

Brand

Applications

  • Flow
  • Level
  • Interface

Principle of Operation

  • Thermal, Calorimetric

Insertion 'U' Length

  • 2" (5 cm)
  • 4" (10.1 cm)
  • 6" (15.2 cm)
  • 9" (23 cm)
  • 12" (30 cm)
  • 18" (46 cm)
  • Custom 'U' Lengths 2.5" to 120" (6.4 cm to 305 cm) Available in 1/2" (1 cm) Increments.
  • 1.2" (3 cm)

NPT Connection

  • 1/2" NPT Male
  • 3/4" NPT Male
  • 1" NPT Male
  • 1-1/4" NPT Male
  • 1-1/2" NPT Male
  • 2" NPT Male

Wetted Materials

  • 316, 316L Stainless Steel
  • Hastelloy C-276
  • Titanium
  • Other Metals Available

Operating Pressure - Sensor

  • CSA - All Process Connections: Max. Working Pressure: 3481 psi (24 MPa)
  • Canadian Registration Number Details
  • CRN - All Provinces & Territories of Canada
  • CRN - Material: 316/316L Stainless Steel
  • CRN - Process Connections: 1/2", 3/4", 1", 1-1/4" & 2" Male NPT
  • CRN - Insertion Lengths: 1.2" to 120" (3.0 to 304 cm)
  • CRN - Max. Working Pressure: 1990 psi, 13,720 kPa, 137 bar
  • CRN - Temperature Range: -55° to +200° C (-67° to +392° F)
  • CRN - All Process Connections: Max. Working Pressure: 1990 psi (13.72 MPa), Material: 316/316L Stainless Steel
  • CRN - Code of Construction: ASME B31.3
  • CRN - Canadian Registration Number: 0F22124.2C

Operating Temperature - Sensor

  • -45° to 200° C (-50° to 392° F)

Sensor Construction

  • All-Welded Construction

Switch Point Range

  • Air & Gases: 0.25 to 200 sfps, 0.08 to 60 SMPS - Standard Condition 21° C (70° F) at 14.7 psi (1 Atm)
  • Hydrocarbon-based Liquids: 0.01 to 5.0 FPS, 0.003 to 1.50 MPS
  • Water-based Liquids: 0.01 to 3.00 FPS, 0.003 to 0.9 MPS

Response Time

  • As low as 0.5 seconds

Accuracy

  • Flow Service: ± 1.0 % of Set Point Velocity over Operating Range of ± 28° C (± 50° F)
  • Level Service: ± 0.64 cm (0.25")

Approvals & Certifications

  • CRN - Canadian Registration Numbers 1/2" Male NPT, Approved for All Provinces & Territories Replacement Sensor for Kayden Classic 810-RAC Series

Sensor, Probe Style

  • Insertion

Sensor, Probe Connection Type

  • Molex 8-Pin

Storage Temperature

  • Store in a clean & dry environment between -30° & 60° C (-22° & 140° F)
Close
