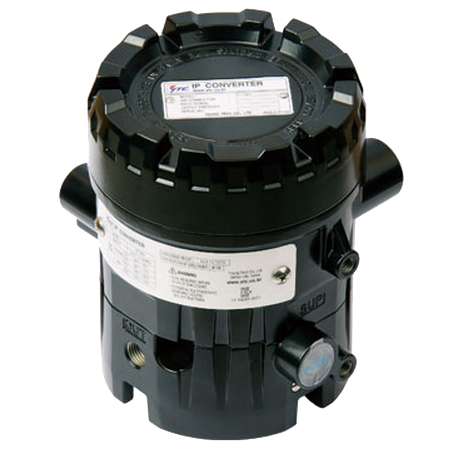

YT-940 IP Converter

Brand: Young Tech Co., Ltd
The YT940 IP Converter accurately provides equipment with relevant air pressure, according to input signal of 4~20mA being delivered from the controller.
Features
  • High accuracy and reliability
  • Simple zero and span adjustment
  • Feedback Signal (Option)
  • Analog PID Control
  • Tubeless connection of YT-200 Air Regulator
show more
Images are representations only.
The YT940 IP Converter accurately provides equipment with relevant air pressure, according to input signal of 4~20mA being delivered from the controller.
Features
  • High accuracy and reliability
  • Simple zero and span adjustment
  • Feedback Signal (Option)
  • Analog PID Control
  • Tubeless connection of YT-200 Air Regulator

YT-940

Explosion-Proof

Output Pressure

Connection

Temperature Range

Options

Specifications

Enclosure, Body Material

  • Die Cast Aluminum

Environmental Protection

  • IP66

Flow Capacity

  • 70 LPM

Hysteresis

  • ± 0.05% of Span

Independent Linearity

  • ± 0.5% of Full Scale

Input

  • 4-20 mA

NPT Connection

  • 1/4" NPT Female

Operating Temperature

  • -40° to 85° C (-40° to 185° F)

Pressure Range

  • psig: 17.4 to 23.2 (bar: 1.2 to 1.6, MPa: 0.12 to 0.16)

PT/PF/PS (JIS) Connection

  • 1/4" PT Female

Repeatability

  • ± 0.3% of Full Scale

Supply Pressure - Maximum

  • bar: 2.4
  • MPa: 0.24
  • psi: 34.8
