Images are representations only.

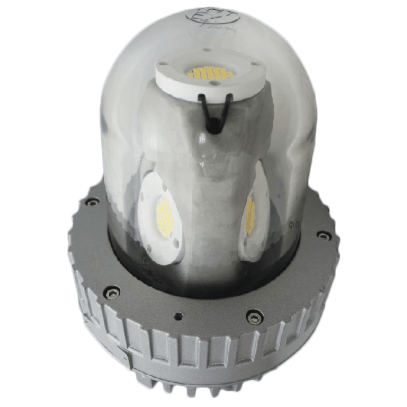

L1705C (COB/DOB) Explosion-Proof LED Light

Brand: Top Hi-Tech Inc.
Up to 100℃ Heat Resistant
Standards & Protections:

  • cULus Approved for Canada & US
  • CSA C22.2 (No.137-M1981), (No. 250.0), (No. 250.13), (No. 25-1966)
  • UL844, UL1598, UL8750
  • Class I, Division 2, Group A, B, C, D
  • Class II, Division 1, Group E, F, G
  • Class III
  • IP rating IP67 (NEMA 6)
Features
  • Model No.:L1705C
  • Similar to HPS but with better beam angle and efficiency!
  • Suitable for various Hazardous Locations
  • LED Lighting provides 2 million times power cycle
  • High corrosion resistance
  • Small volume and light weight
  • Easy installation and maintenance
  • Long lifespan
show more
Up to 100℃ Heat Resistant
Standards & Protections:

  • cULus Approved for Canada & US
  • CSA C22.2 (No.137-M1981), (No. 250.0), (No. 250.13), (No. 25-1966)
  • UL844, UL1598, UL8750
  • Class I, Division 2, Group A, B, C, D
  • Class II, Division 1, Group E, F, G
  • Class III
  • IP rating IP67 (NEMA 6)
Features
  • Model No.:L1705C
  • Similar to HPS but with better beam angle and efficiency!
  • Suitable for various Hazardous Locations
  • LED Lighting provides 2 million times power cycle
  • High corrosion resistance
  • Small volume and light weight
  • Easy installation and maintenance
  • Long lifespan
5 models matching criteria
THT1705CBBC6G0-H90G-P
TOP HI-TECH Hazardous Area 1705 Series, 120 V , Cool White, 70 W, Wide Angle, Prismatic Glass, Guard View More
  • THT: Brand Name - Top Hi-Tech Co., Ltd
  • H: Hazardous Location LED Light
    • Class 1, Division 2, Groups A, B,C & D
  • 1705: Model Name - L1705C Series Globe Style Series
  • C: Sub-Series Designation - Wide Angle Light
  • B: Top Cover - Short Top Cover
  • B: LED Module - DCOB (Driver Chip on Board)
  • C: CCT of LED - Cool White (5000K)
  • 6: Voltage - 120V, 50/60 Hz
  • G0: Wattage - 70W, 7000lm
  • H90: Bracket - Hanging Mount 90 degrees
  • P: Prismatic Glass
  • Standard Specifications:
    • 1 x 3/4" FNPT Explosion Proof, Strain Relief Gland
    • cw 3 ft SOOW cable - 3 cond #18 AWG
    • Clear Glass Globe is Standard
    • Operating Temperature: (-40- to +40 C )
    • Amps: 0.58 @ 120V
    • Power Factor: > 0.9
    • Enclosure Rating: IP 68, NEMA 6P
    • Housing: Aluminum Alloy
1 In Stock
$603.92 USD
$15.52 Shipping
THT1705CBBC6E0-H90G-P
TOP HI-TECH Hazardous Area 1705 Series, 120 V , Cool White, 50 W, Wide Angle, Prismatic Glass, Guard View More
  • THT: Brand Name - Top Hi-Tech Co., Ltd
  • H: Hazardous Location LED Light
    • Class 1, Division 2, Groups A,B,C & D
  • 1705: Model Name - L705C Series - Globe Style Luminaire
  • C: Sub-Series Designation - Wide Angle Light
  • B: Top Cover - Short Top Cover
  • B: LED Module - DCOB (Driver Chip on Board)
  • C: CCT of LED - Cool White (5000K)
  • 6: Voltage - 120V, 50/60 Hz
  • E0: Wattage - 50W, 5000lm
  • H90: Bracket - Hanging Mount 90 degree
  • G: Guard
  • P: Prismatic Glass
  • Standard Specifications:
    • 1 x 3/4" FNPT Explosion Proof, Strain Relief Gland
    • cw 3 ft SOOW cable - 3 cond #18 AWG
    • Operating Temperature: (-40- to +40 C )
    • Amps: 0.42 @ 120V
    • Power Factor: > 0.9
    • Enclosure Rating: IP 68, NEMA 6P
    • Housing: Aluminum Alloy
4 - 6 weeks
$582.18 USD
$15.52 Shipping
THT1705CBAC6E0-H90G-P
TOP HI-TECH Hazardous Area 1705 Series, 120 V , Cool White, 50 W, Wide Angle, Prismatic Glass, Guard View More
  • THT: Brand Name - Top Hi-Tech Co., Ltd
  • H: Hazardous Location LED Light
    • Class 1, Division 2, Groups A,B,C & D
  • 1705: Model Name - L1705C Globe Style Series
  • C: Sub-Series Designation - Wide Angle Light
  • B: Top Cover - Short Top Cover
  • A: LED Module - DOB (Direct On Board)
  • C: CCT of LED - Cool White (5000K)
  • 6: Voltage - 120V, 50/60 Hz
  • E0: Wattage - 50W, 5000lm
  • H90: Bracket - Hanging Mount 90 degree
  • G: Guard
  • P: Prismatic Glass
  • Standard Specifications:
    • 1 x 3/4" FNPT Explosion Proof, Strain Relief Gland
    • cw 3 ft SOOW cable - 3 cond #18 AWG
    • Operating Temperature: (-40- to +40 C )
    • Amps: 0.42 @ 120V
    • Power Factor: > 0.9
    • Enclosure Rating: IP 68, NEMA 6P
    • Housing: Aluminum Alloy
4 - 6 weeks
$1,039.39 USD
$15.52 Shipping
THT1705CBAC6G0-H90G-P
TOP HI-TECH Hazardous Area 1705 Series, 120 V , Cool White, 70 W, Wide Angle, Prismatic Glass, Guard View More
  • THT: Brand Name - Top Hi-Tech Co., Ltd
  • H: Hazarfous Location LED Light
    • Class 1, Division 2, Groups A,B,C & D
  • 1705: Model Name - L705C Series - Globe Style Luminaire
  • C: Sub-Series Designation - Wide Angle Light
  • B: Top Cover - Short Top Cover
  • A: LED Module - DOB (Direct On Board)
  • C: CCT of LED - Cool White (5000K)
  • 6: Voltage - 120V, 50/60 Hz
  • G0: Wattage - 70W, 7000lm
  • H90: Bracket Hanging Mount 90 degree
  • G: Guard
  • P: Prismatic Glass
  • Standard Specifications:
    • 1 x 3/4" FNPT Explosion Proof, Strain Relief Gland
    • cw 3 ft SOOW cable - 3 cond #18 AWG
    • Clear Glass Globe is Standard
    • Operating Temperature: (-40- to +40 C )
    • Amps: 0.58 Amps @ 120 Volts
    • Power Factor: > 0.9
    • Enclosure Rating: IP 68, NEMA 6P
    • Housing: Aluminum Alloy
4 - 6 weeks
$1,074.33 USD
$15.52 Shipping
THT1705CBBC6G0-PANG-P
TOP HI-TECH Hazardous Area 1705 Series, 120 V , Cool White, 70 W, Wide Angle, Prismatic Glass, Guard View More
  • THT: Brand Name - Top Hi-Tech Co., Ltd
  • H: Hazardous Location LED LIght
    • Class 1, Division 2, Groups A,B,C & D
  • 1705: Model Name - L1705C Globe Style Series
  • C: Sub-Series Designation - Wide Angle Light
  • B: Top Cover - Short Top Cover
  • B: LED Module - DCOB (Driver Chip on Board)
  • C: CCT of LED - Cool White (5000K)
  • 6: Voltage - 120V, 50/60 Hz
  • G0: Wattage - 70W, 7000lm
  • PAN: Retro-fit (A,C or K)
  • G: Guard
  • P: Prismatic Glass
  • Standard Specifications:
    • 1 x 3/4" FNPT Explosion Proof, Strain Relief Gland
    • cw 3 ft SOOW cable - 3 cond #18 AWG
    • Operating Temperature: (-40- to +40 C )
    • Amps: 0.58 @ 120V
    • Power Factor: > 0.9
    • Enclosure Rating: IP 68, NEMA 6P
    • Housing: Aluminum Alloy
4 - 6 weeks
$1,131.77 USD
$15.52 Shipping

Specifications

Frequency

  • 50/60 Hz

Rated Voltage (±10%)

  • 120V / 277V / 480V AC, (480V only COB 80W)

Watts (±10%)

  • COB / DOB: 40W / 50W / 70W / 80W

Amps

  • 80W: 120V: 0.67A, 277V: 0.29A, 480V: 0.17A
  • 70W: 120V: 0.58A, 277V: 0.25A
  • 50W: 120V: 0.42A, 277V: 0.18A
  • 40W: 120V: 0.33A, 277V: 0.14A

Color of LED Light

  • 5000K (Cool White)
  • 3000K (Warm White)

Ambient Temperature

  • Class I, DIvision 2: -40°C ~ +40°C, T3C
  • Class II, Division 1: +40°C, T4A

Lumen (± 10%)

  • 5000K: 40W: 4000lm, 50W: 5000lm, 70W: 7000lm, 80W: 8000lm
  • 3000K: 40W: 3600lm, 50W: 4500lm, 70W: 6300lm, 80W: 7200lm

Beam Angle

  • X-110° / Y-110°

Power Factor

  • cos≧0.87(480V)
  • cos≧0.9

CRI

  • Warm White≧80
  • Cool White≧70

Degree of Protection

  • IP67 / NEMA 6

Material

  • Enclosure: Aluminum Alloy

LED Service Life

  • 60,000 hrs

Entrance Thread

  • 1 x NPT 3/4" or 1 x M25
