Images are representations only.
Description

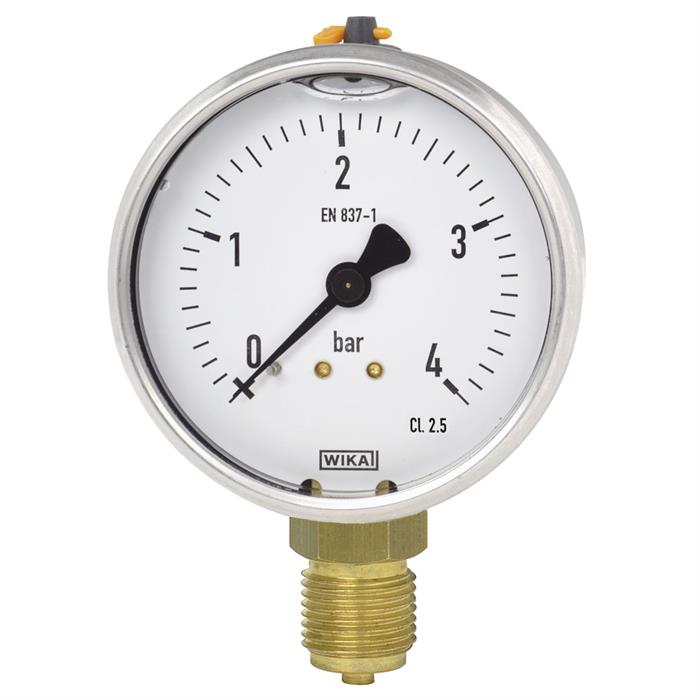

Stainless steel case, liquid filling, NS 40, 80 and 100.
Features
- Stainless steel case
- Copper alloy wetted parts
- Liquid-filled case
- Compound pressure ranges to 200 PSI (16 bar)
- Positive pressure ranges to 5000 PSI (350 bar)
Specifications
Specifications
Brand
Design
- EN 837-1
Nominal Size
- 1.5” (40 mm)
Accuracy Class
- ± 2.5% of span
Scale Ranges
- 0/30 to 0/5000 PSI or other equivalent units of pressure or vacuum
Working Pressure
- Steady: 3/4 of full scale value
- Fluctuating: 2/3 of full scale value
- Short time: full scale value
Operating Temperature
- Ambient: -4° F to +140° F (-20° C to +60° C)
- Medium: +140° F (+60° C)
Temperature effect
- When temperature of the pressure element deviates from reference temperature (+70° F / +20° C): max. ±0.4%/18° F
Weather Protection
- IP 65 per EN 60 529 / IEC 529
Applications
Typical Applications
- Liquid filled case for applications with high dynamic pressure pulsations or vibration
- Suitable for all gaseous and liquid media that will not obstruct the pressure system or attack copper alloy wetted parts
Documentation
Documentation
Data Sheet
Operating Instructions
