Images are representations only.
Description
The RP Level Sensor is designed for use in the chemical, oil, shipping, food processing, waste treatment, and many other industries. Each RP is manufactured to the users specifications making it fit to work precisely according to the application requirements.
Features
- Continuous level indication
- Wide choice of materials

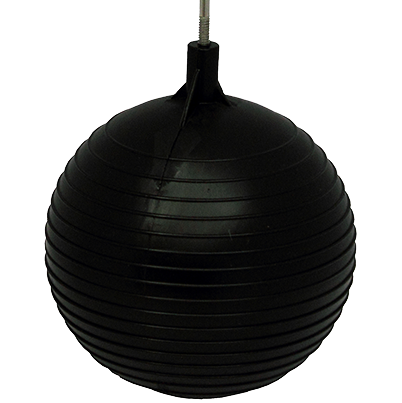

- Durable float matched to liquid specific gravity
- Resistive chain or loop-powered 4-20 mA output
- Hazardous location approvals - Intrinsically safe
Configure
RP
Output

Mounting Type

Mounting

ANSI Flange Size

Ferrule Size

NPT Plug Size

PF Plug Size

RT Plug Size

Housing Material

Stem Material

Float Type

Sensor Length

Specifications
Specifications
Approvals & Certifications
- CSA Hazardous: Class I, Division 1, Groups C, D, Maximum
- CSA: Intrinsically Safe Class I, Zone 1, Ex D IIB T3, Exia Class I, Division 1, Groups C, D, Maximum
Electrical Connectors
- 1/2" NPT
- 3/4" NPT
Enclosure, Body Material
- Die-Cast Aluminum
Environmental Protection
- Hazardous Area
- Intrinsically Safe
- IP65
- NEMA 4
- NEMA 7
Flange Size - 2" (DN50)
- 2" (DN50) - 150#
- 2" (DN50) - DIN 10K
- 2" (DN50) - JIS 10K
Flange Size - 2-1/2" (DN65)
- 2-1/2" (DN65) - 150#
Flange Size - 3" (DN80)
- 3" (DN80) - 150#
Flange Size - 4" (DN100)
- 4" (DN100) - 150#
NPT Connection
- 2" NPT Male
- 2-1/2" NPT Male
- 3" NPT Male
Operating Temperature - Electronics
- -10° to 85° C (14° to 185° F)
Output
- 4-20 mA
Pressure Rating
- 72.5 psi (5 bar, 500 kPa)
Resolution
- 6 mm (0.25")
Sensing Range
- 3 mm (0.12")
Sensor, Probe Style
- Float
Supply Voltage
- 12-24 Vdc
Tri-Clamp Connection
- 2-1/2" Sanitary Clamp
- 3" Sanitary Clamp
- 4" Sanitary Clamp
Documentation
Documentation
Data Sheets
Product Manuals
