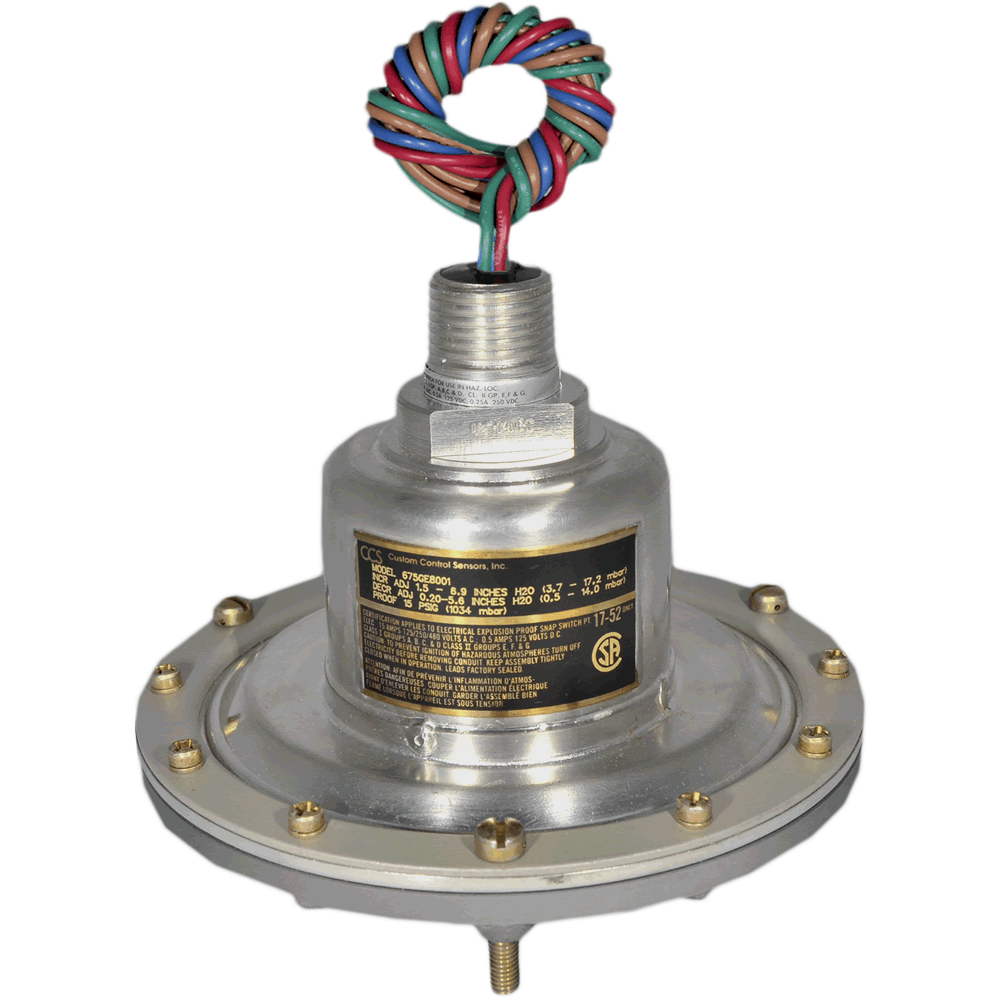

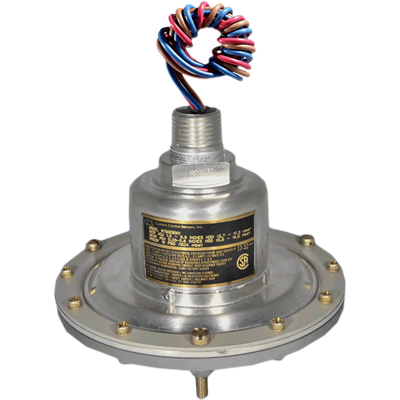

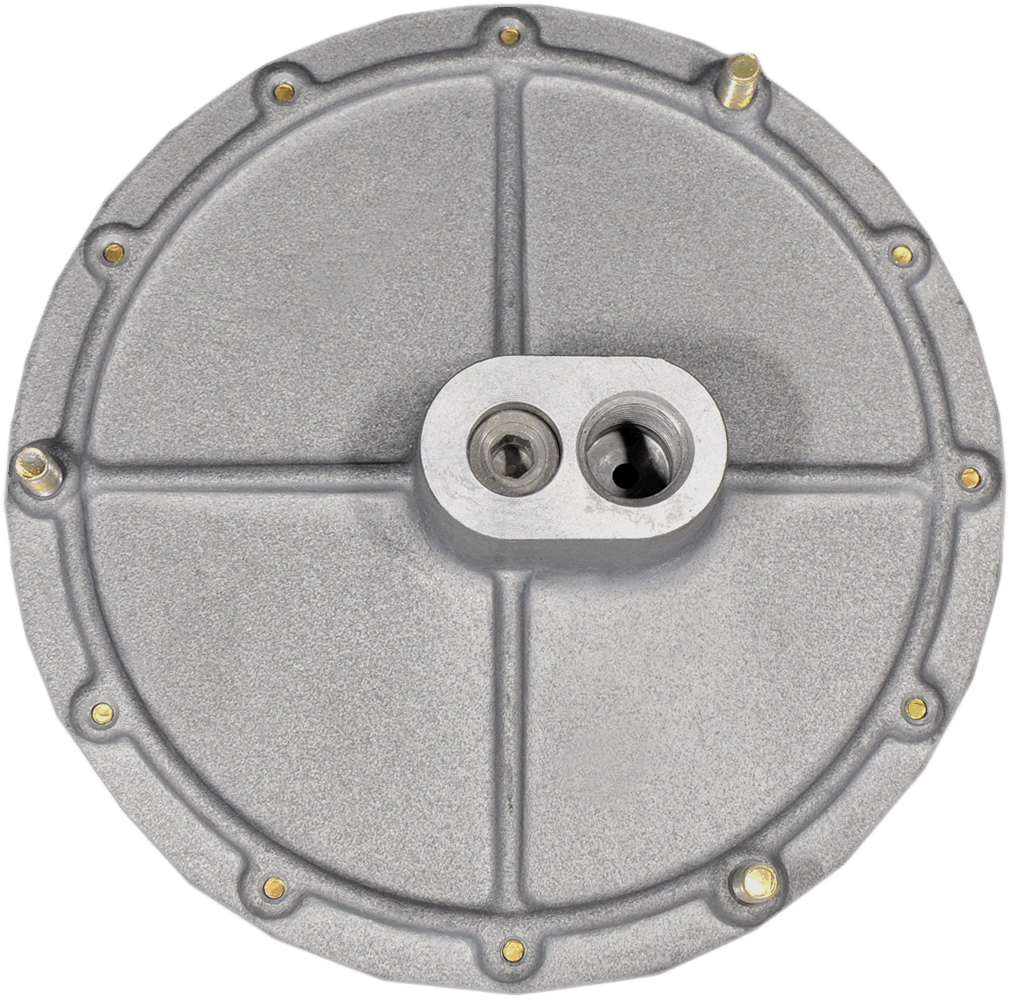

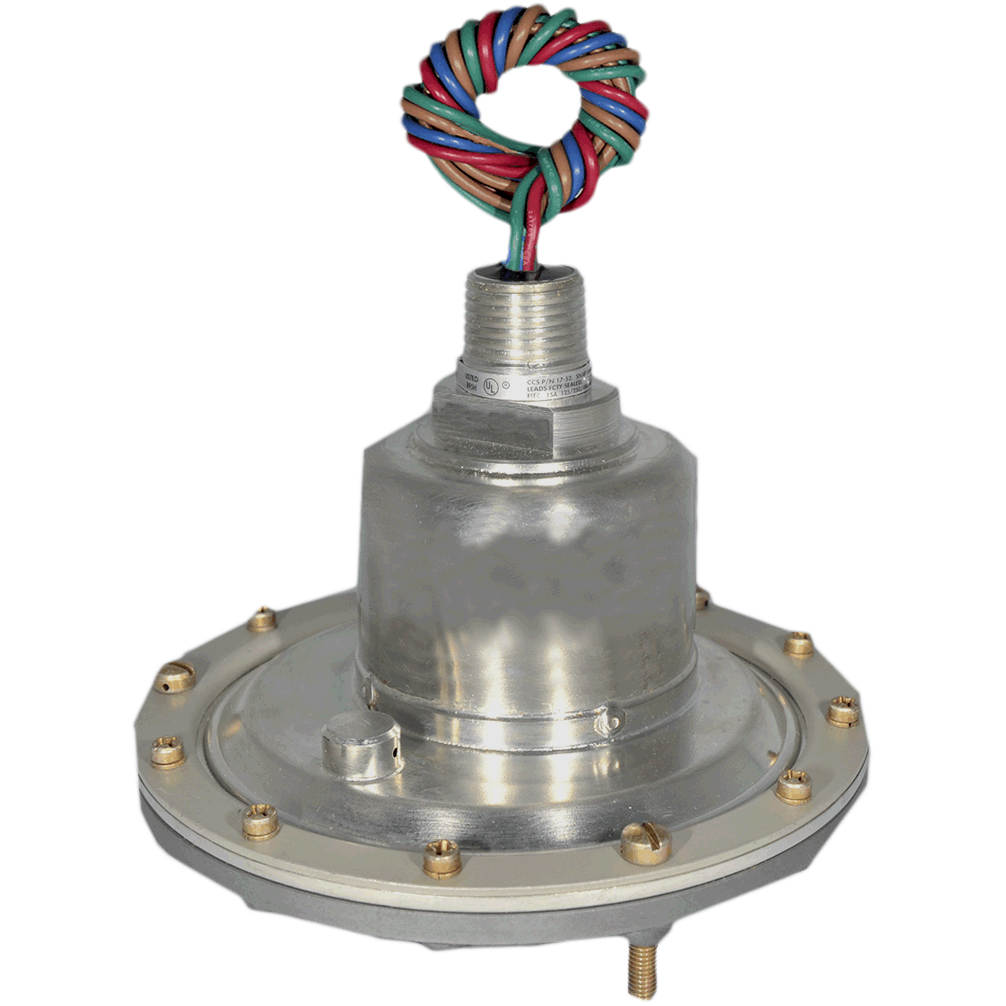

675GE8000 Series Pressure Switch

Brand: Custom Control Sensors, LLC
Does not ship to OH, United States
Features
  • Adjustable Set Point Range
    • Increasing
      • Inches H20  1.5 - 31
      • mbar  3.7 - 77.2
    • Decreasing
      • Inches H20  0.7 - 28
      • mbar  1.7 - 69.8
  • Deadband - Approximate: 0.8 - 3.0 Inches H20, 1.9 - 7.5 mbar
  • System Pressure - Maximum: 10 psig, 689 mbar
  • Proof Pressure: 15 psig, 1034 mbar
  • Wetted Materials
    • Pressure Port: 1/4"-18 Female NPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  • Relay: SPDT or DPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • CE Mark, Dual Seal
Features
  • Adjustable Set Point Range
    • Increasing
      • Inches H20  1.5 - 31
      • mbar  3.7 - 77.2
    • Decreasing
      • Inches H20  0.7 - 28
      • mbar  1.7 - 69.8
  • Deadband - Approximate: 0.8 - 3.0 Inches H20, 1.9 - 7.5 mbar
  • System Pressure - Maximum: 10 psig, 689 mbar
  • Proof Pressure: 15 psig, 1034 mbar
  • Wetted Materials
    • Pressure Port: 1/4"-18 Female NPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  • Relay: SPDT or DPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • CE Mark, Dual Seal
Close

Specifications

Brand

Service

  • Sweet (Oil & Gas)

Deadband, Approximate

  • inH₂O: 0.8 to 3.0
  • mbar: 1.9 to 7.5

Electrical - Free Leads

  • 18" (45 cm) Free Leads

NPT Connection

  • 1/4" NPT Female

Electrical Contacts

  • Gold
  • Silver

Electrical Connectors

  • 1/2" NPT Male

Enclosure, Body Material

  • Aluminum

System Pressure

  • kPa: 68.95
  • mbar: 689
  • psig: 10

Electrical Certification

  • ATEX - Baseefa Certified for Potentially Explosive Atmospheres. Models 675**Y, II 2 GD Ex d IIC, Baseefa 08-ATEX-0347X. (Option Y)
  • cUL, UL/CSA, Hazardous Areas, Div. 1, 2

Process Connection Material

  • Aluminum

Electrical Rating

  • 1 A at 125 Vac, 50/60 Hz
  • 15 A at 125/250/480 Vac Resistive, 0.5 A at 125 Vdc, 0.2 A at 250 Vdc
  • 5 A at 125/250 Vac Resistive, 5 A at 28 Vdc, 0.5 A at 125 Vdc

Diaphragm Material

  • Polyimide

Environmental Protection

  • Hazardous Area
  • IP54
  • IP66
  • NEMA 13
  • NEMA 4, 7, 9, 13 / IP54, 66
  • NEMA 7
  • NEMA 9

Electrical Assembly

  • Hermetic Seal

Set Point - Decreasing

  • inH₂O: -0.7 to 31
  • mbar: -1.7 to 77.2

Approvals & Certifications

  • ATEX
  • CE
  • CRN - Canadian Registration Number
  • CRN - N.W. Territories
  • CSA
  • cUL
  • Dual Seal
  • LVD
  • PED
  • RoHS
  • RTN
  • UL

Set Point - Increasing

  • inH₂O: -1.5 to 31
  • mbar: -3.7 to 77.2

Operating Temperature

  • -40° to 86° C (-40° to 187° F)

Adjustment Type

  • Field Adjustable

Proof Pressure

  • kPa: 103.42
  • mbar: 1034
  • psig: 15

O-Ring Material

  • Buna-N
  • Viton

Switch Type

  • DPDT
  • SPDT
