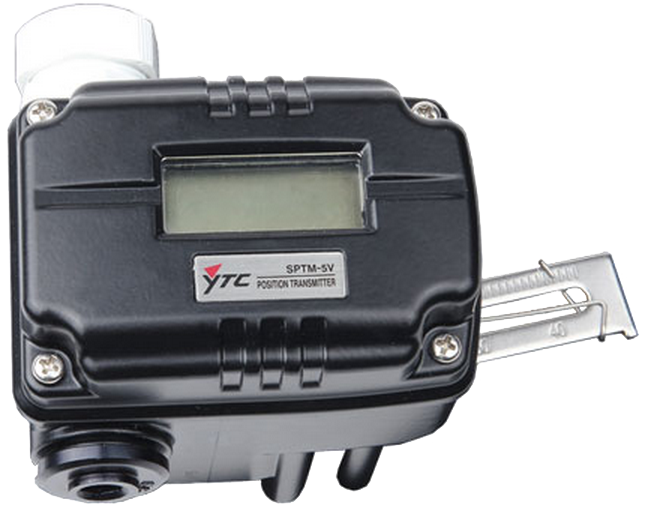

SPTM-5V Smart Positioner

Brand: Young Tech Co., Ltd
Request a Quote
Favorite
Electronic Position Transmitter SPTM-5V series is 2-Wire type transmitter with in-built micro-processor which transmits DC 4~20mA signal according to changes in valve or damper position.
Features
  • Convenient wiring: 2-wire type
  • High accuracy and reliability
  • Simple change for RA vs DA action setting
  • Convenient adjustment of zero and span
  • Designed to be Ex ia IIC T6 explosion proof grades.
  • Economical price and long product life time.
  • Very easy and simple calibration.
  • LCD displays current output signal.
show more
Electronic Position Transmitter SPTM-5V series is 2-Wire type transmitter with in-built micro-processor which transmits DC 4~20mA signal according to changes in valve or damper position.
Features
  • Convenient wiring: 2-wire type
  • High accuracy and reliability
  • Simple change for RA vs DA action setting
  • Convenient adjustment of zero and span
  • Designed to be Ex ia IIC T6 explosion proof grades.
  • Economical price and long product life time.
  • Very easy and simple calibration.
  • LCD displays current output signal.
Close
Close

Specifications

Brand

Conduit Connection

  • PF 1/2 (G 1/2")

Enclosure, Body Material

  • Die Cast Aluminum

Environmental Protection

  • Ex Ia IIC T6
  • IP67

Hysteresis

  • ± 0.2% of Span

Independent Linearity

  • ± 1% of Full Scale

Input

  • 2-Wire

Input Signal

  • 0 to 30°
  • 0 to 90°

Load Impedance

  • Maximum

Operating Temperature

  • -40° to 85° C (-40° to 185° F)

Operating Temperature - Display

  • -30° to 85° C (-22° to 185° F)

Output

  • 4-20 mA DC

Sensitivity

  • ± 0.2%

Supply Voltage

  • 9-28 Vdc
