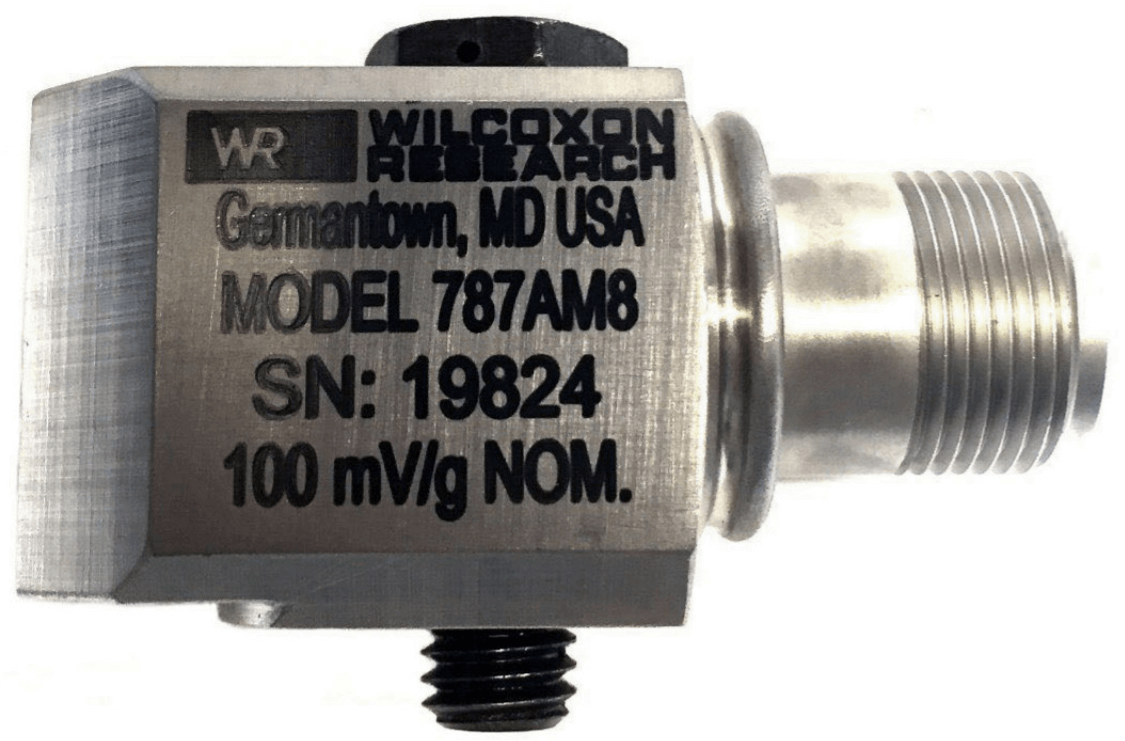

Model 787A-M8-IS Low Profile Industrial Accelerometer

Brand: Wilcoxon Sensing Technologies
Side exit, general-purpose, case isolated, MIL-C-5015 connector, M8 captive bolt, 100 mV/g.
Features
  • Corrosion resistant
  • Hermetically sealed
  • Ground isolated
  • ESD protection
  • Reverse wiring protection
  • Mounts in any orientation
  • Hazardous area certified - intrinsically safe
  • Ideal for low-clearance mounting locations, rugged industrial environments, and conveyors and drives
show more
Images are representations only.
Side exit, general-purpose, case isolated, MIL-C-5015 connector, M8 captive bolt, 100 mV/g.
Features
  • Corrosion resistant
  • Hermetically sealed
  • Ground isolated
  • ESD protection
  • Reverse wiring protection
  • Mounts in any orientation
  • Hazardous area certified - intrinsically safe
  • Ideal for low-clearance mounting locations, rugged industrial environments, and conveyors and drives

Specifications

Approvals & Certifications

  • ATEX Ex Ia IIC T4 Ga
  • CE
  • CSA (C,US) Class I, Division 1, Grade A, B, C, D, Class II, Division 1, Groups E, F, G, Class III, Division 1, Class I, Zone 0, Ex Ia IIC T4, Class I, Zone 0, Aex Ia IIC T4
  • IEC, IECEx

Circuit Protection

  • ESD Protection
  • Reverse Wiring Protection

Electrical Connectors

  • Cable (J10 / J9T2A)
  • Mating Connector: R6 Typical
  • Output Connector: 2-Pin, MIL-C-5015 Style

Enclosure, Body Material

  • 316L Stainless Steel

Environmental Protection

  • Corrosion-Proof
  • Hazardous Area
  • Intrinsically Safe

Frequency

  • Frequency Response (± 10%): 1 to 5,000 Hz
  • Frequency Response (± 3 dB): 0.7 to 10,000 Hz
  • Resonance Frequency, Mounted, Minimum: 22 kHz

Mounting

  • M8 Captive Hex Head Screw with 0.046" Diameter Safety Wire Hole

Noise

  • Electrical Noise, Equivalent G, Nominal (Broadband: 2.5 Hz to 25 kHz): 700 µg
  • Electrical Noise, Equivalent G, Nominal (Spectral: 10 Hz): 10 µg/√Hz
  • Electrical Noise, Equivalent G, Nominal (Spectral: 100 to 1,000 Hz): 5 µg/√Hz

Non-Linearity

  • Amplitude Non-Linearity: 1%

Output Impedence

  • Maximum

Power Requirement

  • 18-28 Vdc
  • Current Regulating Diode: 2-10 mA

Range

  • Acceleration Range: 80 G Peak

Seal Type

  • Hermetic

Sensitivity

  • Base Strain Sensitivity, Maximum
  • Electromagnetic Sensitivity, Equivalent G, Maximum
  • Sensitivity, ± 5%, 25° C (77° F): 100 mV/g
  • Transverse Sensitivity: Maximum

Shock

  • Shock Limit, Minimum: 5,000 G Peak

Temperature Range

  • -50° to 120° C (-58° to 248° F)

Vibration

  • Vibration Limit: 500 G Peak

Voltage

  • Bias Output Voltage: 12 Vdc
