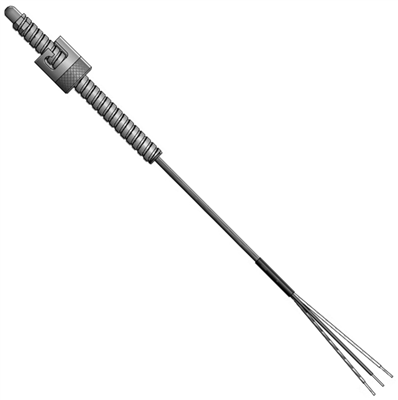

Armor-Adjustable Immersion RTD

Brand: Pyromation
The RTD version of an armor-adjustable immersion sensor has a bayonet cap on the flexible armor and allows for immersion of the entire specified "B" dimension.

This assembly is used in a variety of applications (with a bayonet adapter) where ease of installation and quick disconnect is preferred.

Standard and metric size bayonet caps and adapters are available.

These assemblies are supplied standard using 316 stainless steel sheath material and a 100 Ω platinum element with a temperature coefficient of 0.003 85°C-1 (IEC Class B).
The RTD version of an armor-adjustable immersion sensor has a bayonet cap on the flexible armor and allows for immersion of the entire specified "B" dimension.

This assembly is used in a variety of applications (with a bayonet adapter) where ease of installation and quick disconnect is preferred.

Standard and metric size bayonet caps and adapters are available.

These assemblies are supplied standard using 316 stainless steel sheath material and a 100 Ω platinum element with a temperature coefficient of 0.003 85°C-1 (IEC Class B).
Close

Specifications

Brand

Element Connection

  • 2-Wire
  • 3-Wire

Material of Construction

  • Lead wire: Fiberglass, Polyimide
  • Sheath: 316 Stainless Steel
  • Element: Platinum
Close

Documentation

Data Sheet
