Images are representations only.
Description
IME Model 108RR Digital Indicator allows the 4-20 mA two wire signal from any transmitter to be monitored in engineering units and two corresponding alarms to be assigned. Both alarms can be assigned either high or low within the selected range. In additiion the Model 108RR allows the re-transmission of the 4-20 mA signal.
IME Model 108RR Indicators are designed for use in process industries where vibration, inclement weather and corrosive atmospheres prevail. The electronics are enclosed in a low cost UV resistant polycarbonate housing, which meets NEMA 4X and IP66/68 requirements.
Features
- 4-20 mA input/output
- 4-digit LED display in engineering units
- Two independent user assignable alarms
- Polycarbonate enclosure
- Wall or pipe mounting
Configure
108RR
Instrument Connection / Conduit Size
Thread Size and Cable Diameter

Accessories

U Bolt with Nuts and Washers

Specifications
Specifications
Accuracy
- Alarm Set Point Accuracy: ± 0.5% of Full Scale
- Indication Accuracy: 0.1% of Calibrated Range ± 1-Digit
Adjustable Set Point Range
- 0 to 100% of Full Scale
Conduit Connection
- 1/2" NPT Female
- 3/4" NPT Female
- M20 x 1.5P
Diameter
- Cable Size: 0.19 to 0.70" (5 to 18 mm)
Display
- 4-Digit LED Display
Enclosure, Body Material
- UV Resistant Polycarbonate
Environmental Protection
- IP66
- IP68
- NEMA 4X
Indication
- Alarm Status Indication: LED on Front Panel
Input
- 4-20 mA
Instrument Connection
- 1/2" NPT
- M16 x 2P
Mounting
- Field Mounting
- Pipe
- Wall Mounting
Operating Temperature
- Ambient Operating Temperature: -40° to 60° C (-40° to 140° F)
O-Ring Material
- Hydrogenated Nitrile
Output
- 4-20 mA
- Alarm Output: 2 Sets SPDT, 1 Form C, Rated 5 A @ 230 V AC, 50/60 Hz
Stability
- Stability over Time: 0.1% of Calibrated Range ± 1-Digit over 6 Months
Supply Voltage
- 18-28 Vdc
Documentation
Documentation
Reviews (0)
Review this product and let us know your experiences
Write a ReviewQ & A (0)
Similar Products
/108EL-Field-Mounted-Loop-Powered-Indicator/Thumbs/400_main_IM_108EL_Field_Mounted_Loop_Powered_Indicator.png)
108EL Field Mounted Loop Powered Indicator
International Metal Engineering (IME)
/-9080MK-Field-Mounted-Loop-Powered-Indicator/Thumbs/400_main_IM_Model_9080MK_Field_Mounted_Loop_Powered_Indicator.png)
Model 9080MK Field Mounted Loop Powered Indicator
International Metal Engineering (IME)
/108KN-Battery-Operated-Digital-Temperature/Thumbs/400_main_IM_108KN_Battery_Operated_Digital_Temperature_Indicator.png)
108KN Battery Operated Digital Temperature
International Metal Engineering (IME)
8080MN Model Digital Process Indicator
International Metal Engineering (IME)
/-8080FR-Flow-Indicator/Thumbs/400_main_IME_8080FR_Indicator.png)
Model 8080FR Flow Indicator
International Metal Engineering (IME)

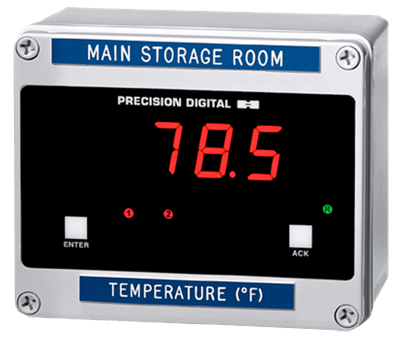

PD655 Process Meter
