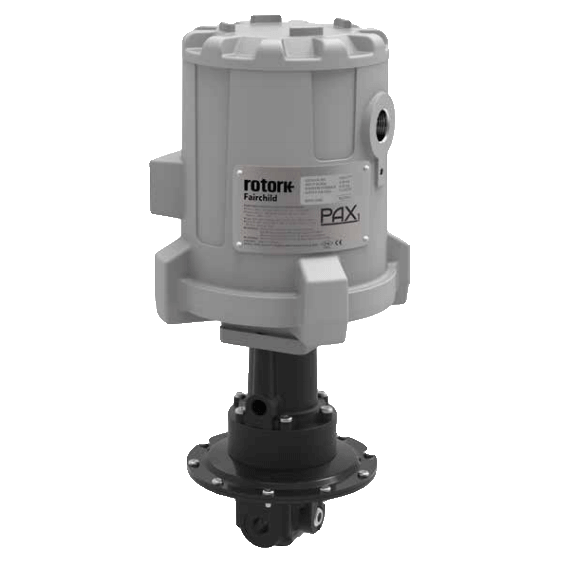

PAX1 Model 11 Precision Low Pressure Regulator

Brand: Fairchild Industrial Products
Rotork Fairchild's all new PAX1 Motor Set Pressure Regulator is a flexible low voltage DC powered linear actuator coupled to one of four Fairchild precision pressure regulators capable of controlling pressure ranges of 0-0.5 psig to 0-3,000 psig and housed in a flameproof enclosure.

The unit is inherently lock-in-last-place as the actuator will maintain its position upon loss of electrical power. The Model 11 is designed for applications that require moderate capacity and accurate low pressure control.
Features
  • Large area, high sensitivity diaphragm provides control sensitivity of 1/8" water column, allows use in precision applications
  • Pressure balanced supply valve prevents supply pressure changes from affecting the setpoint
  • Separate control chamber isolates the diaphragm from the main flow to eliminate hunting and buzzing
  • An aspirator tube compensates downstream pressure droop for flow demand
  • Non relieving option available for applications requiring containment of gas
show more
Images are representations only.
Rotork Fairchild's all new PAX1 Motor Set Pressure Regulator is a flexible low voltage DC powered linear actuator coupled to one of four Fairchild precision pressure regulators capable of controlling pressure ranges of 0-0.5 psig to 0-3,000 psig and housed in a flameproof enclosure.

The unit is inherently lock-in-last-place as the actuator will maintain its position upon loss of electrical power. The Model 11 is designed for applications that require moderate capacity and accurate low pressure control.
Features
  • Large area, high sensitivity diaphragm provides control sensitivity of 1/8" water column, allows use in precision applications
  • Pressure balanced supply valve prevents supply pressure changes from affecting the setpoint
  • Separate control chamber isolates the diaphragm from the main flow to eliminate hunting and buzzing
  • An aspirator tube compensates downstream pressure droop for flow demand
  • Non relieving option available for applications requiring containment of gas

PAX1 Model 11

Pressure Range

Port Size

Port Thread

Elastomers

Relief

Specifications

Diaphragm Material

  • FluoroCarbon
  • Nitrile

Enclosure, Body Material

  • Aluminum

Exhaust Capacity - Relieving Units Only

  • 0.5 scfm (0.85 m³/hour) @ Where Downstream Pressure is 0.1 psig (0.007 bar, 0.7 kPa) Above 1.0 psig Setpint

Flow Capacity

  • 20 scfm (34 m³/hour) @ 100 psig (7 bar, 700 kPa) Supply & 1.0 psig Setpint

Sensitivity

  • 0.05" WC

Supply Pressure - Maximum

  • psig: 150 (kPa: 1,034, bar: 10.34)

Supply Pressure Effect

  • < 0.01 psig for 100 psig Change in Supply

Trim Material

  • Stainless Steel
  • Zinc-Plated Steel
