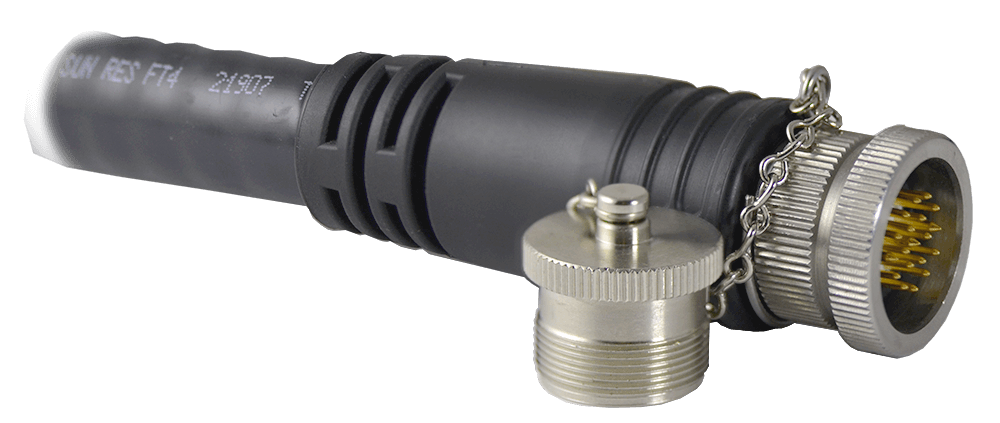

HART multifast Single Ended Cordset

Brand: Turck
Features
  • Connector
    • Female or Male
    • Straight or Right Angle
  • Options
    • Cable
      • Shielded Braided
      • PVC Jacket
      • Foil/Drain
    • Connector
      • Nickle Plated Brass
      • Nylon
      • 316 Stainless Steel
show more
Features
  • Connector
    • Female or Male
    • Straight or Right Angle
  • Options
    • Cable
      • Shielded Braided
      • PVC Jacket
      • Foil/Drain
    • Connector
      • Nickle Plated Brass
      • Nylon
      • 316 Stainless Steel
12 models matching criteria
P-CKM 12-960-8M
TURCK M23 HR Cable, Single Ended Female, PVC/Blue, 12-Pin, 8m, NCNR View More
  • Process Receptacle:

    • Homerun and Analog/HART Circuits
  • Connector:
    • "multi" Series
    • Female Single Ended
    • Nickel Plated Brass Housing
  • Wires:
    • (8) x # 22 AWG Circuits
    • (1) x # 18 AWG Ground
    • Arranged in 4 Shielded, Twisted Pairs with Drain, 1 Ground, 1 Drain
    • Plum PVC Jacket
  • Length of Wires:
    • 8 Meters
  • Protection Class:
    • IEC67
  • Approvals:
    • UL: ITC/PLTC/AWM, 105C, 300V
    • CSA: CMG/AWM, 105C, 300V
2 - 8 weeks
P-CKM 19-977-5M
TURCK M23 HR Cable, Single Ended Female, PVC/Blue, 19-Pin, 5m, NCNR View More
  • Process Receptacle:
    • Homerun and Analog/HART Circuits
  • Connector:
    • "multi" Series
    • Female Single Ended
    • Nickel Plated Brass Housing
    • 19 Contacts / 16 x #22, 1 x #18 AWG Wires
  • Wires:
    • (16) x # 22 AWG Circuits
    • (1) x # 18 AWG Ground
    • Arranged in 8 Shielded, Twisted Pairs with Drain, 1 Ground, 1 Drain
    • Blue PVC Jacket
  • Length of Wires:
    • 5 Meters
  • Protection Class:
    • IEC67
  • Approvals:
    • UL: ITC/PLTC/AWM, 105C, 300V
    • CSA: CMG/AWM, 105C, 300V
2 - 8 weeks
P-CKML 19-2186XL-15M
TURCK M23 HR Cable, Single Ended Female, Armored, 19-Pin, 15m, NCNR
2 - 8 weeks
P-CKMT 19A-419-15M
TURCK M23 HR Cable, Single Ended Female, Armored, 19-Pin, 15m, NCNR View More
  • Process Receptacle:
    • Homerun and Analog/HART Circuits
  • Connector:
    • "multi" Series
    • Female Single Ended
    • 316 Stainless Steel Housing
    • 19 Contacts / 16 x #22, 1 x #18 AWG Wires
  • Wires:
    • (16) x # 22 AWG Circuits
    • (1) x # 18 AWG Ground
    • Arranged in 8 Shielded, Twisted Pairs with Drain, 1 Ground, 1 Drain
    • Interlocking Aluminum Armour
  • Length of Wires:
    • 15 Meters
  • Protection Class:
    • IEC67
  • Approvals:
    • UL: ITC/PLTC, 105C
    • CSA: ACIC/CMG, 90C, 300V
Out of Stock
P-CKMT 19A-419-20M
TURCK M23 HR Cable, Single Ended Female, Armored, 19-Pin, 20m, NCNR View More
  • Process Receptacle:
    • Homerun and Analog/HART Circuits
  • Connector:
    • "multi" Series
    • Female Single Ended
    • 316 Stainless Steel Housing
    • 19 Contacts / 16 x #22, 1 x #18 AWG Wires
  • Wires:
    • (16) x # 22 AWG Circuits
    • (1) x # 18 AWG Ground
    • Arranged in 8 Shielded, Twisted Pairs with Drain, 1 Ground, 1 Drain
    • Interlocking Aluminum Armour
  • Length of Wires:
    • 20 Meters
  • Protection Class:
    • IEC67
  • Approvals:
    • UL: ITC/PLTC, 105C
    • CSA: ACIC/CMG, 90C, 300V
2 - 8 weeks
P-CKMT 19A-419-30M
TURCK M23 HR Cable, Single Ended Female, Armored, 19-Pin, 30m, NCNR View More
  • Process Receptacle:
    • Homerun and Analog/HART Circuits
  • Connector:
    • "multi" Series
    • Female Single Ended
    • 316 Stainless Steel Housing
    • 19 Contacts / 16 x #22, 1 x #18 AWG Wires
  • Wires:
    • (16) x # 22 AWG Circuits
    • (1) x # 18 AWG Ground
    • Arranged in 8 Shielded, Twisted Pairs with Drain, 1 Ground, 1 Drain
    • Interlocking Aluminum Armour
  • Length of Wires:
    • 30 Meters
  • Protection Class:
    • IEC67
  • Approvals:
    • UL: ITC/PLTC, 105C
    • CSA: ACIC/CMG, 90C, 300V
2 - 8 weeks
P-CKMV 19-416-5M
TURCK M23 HR Cable, Single Ended, Unarmored, 19-Pin, SST, 5m, NCNR
2 - 8 weeks
P-CKMV 19-419-5
TURCK M23 HR Cable, Single Ended, Armored, 19-Pin, SST, 5m, NCNR
2 - 8 weeks
P-CKMV 19-977-5M
TURCK M23 HR Cable, Single Ended Female, PVC/Blue, 19-Pin, 5m, NCNR View More
  • Process Receptacle:
    • Homerun and Analog/HART Circuits
  • Connector:
    • "multi" Series
    • Female Single Ended
    • Passivated Stainless Steel Housing
    • 19 Contacts / 16 x #22, 1 x #18 AWG Wires
  • Wires:
    • (16) x # 22 AWG Circuits
    • (1) x # 18 AWG Ground
    • Arranged in 8 Shielded, Twisted Pairs with Drain, 1 Ground, 1 Drain
    • Blue PVC Jacket
  • Length of Wires:
    • 5 Meters
  • Protection Class:
    • IEC67
  • Approvals:
    • UL: ITC/PLTC/AWM, 105C, 300V
    • CSA: CMG/AWM, 105C, 300V
2 - 8 weeks
P-CSFL 12-978-1M
TURCK M23 HR Cable, Single Ended, Unarmored, 12-Pin, 1m, NCNR View More
  • Mechanical connection
    • M23, 12 Pin
  • Connectors
    • Single end Male Receptacle
  • Material coupling/housing
    • Brass
  • Mounting Thread
    • M20x1.5
  • Application
    • Hazardous location
  • Rated Voltage / Ampacity
    • 300 V / 3 A
  • Cable Length, Jacket Material
    • 1 Meter
    • PVC Blue
  • Approvals
    • UL ListedFM Div.2CSA PA
2 - 8 weeks

Specifications

Brand

Approvals & Certifications

  • CSA
  • UL

Connection Material

  • Nickel-Plated Brass
  • Nylon
  • Stainless Steel

Connection Pin-Out

  • 12-Pin
  • 19-Pin

Connection Style

  • multifast

Connector Shape

  • Right Angle
  • Straight

Environmental Protection

  • IP67

Operating Temperature

  • -40° to 105° C (-40° to 221° F)

Version / Leadwires

  • 12-229: 8 x 22 AWG, 4 STP, ITC-ER / dB / PLTC PVC
  • 12-978: 8 x 22 AWG, 4 STP, ITC/PLTC PVC
  • 12-Wire
  • 19-416: 16 x 22 AWG, 8 STP, CIC/CMX CM/ITC/PLTC PUR
  • 19-484: 16 x 22 AWG, 8 STP, ITC-ER/dB/PLTC PVC
  • 19-959: 16 x 22 AWG, 8 STP, ITC/PLTC PVC
  • 19-977: 16 x 22, 8 STP, ITC/PLTC PVC
  • 19A-419: 16 x 22 AWG, 8 STP, ITC/PLTC Armoured PVC
  • 19-Wire
