SF-SS-SB Limit Switch Box Series

Brand: Soldo Controls

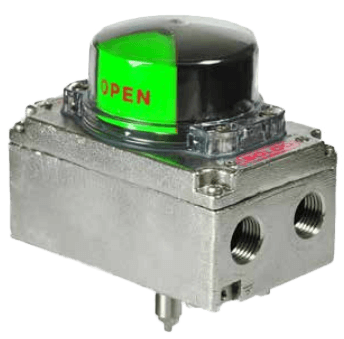

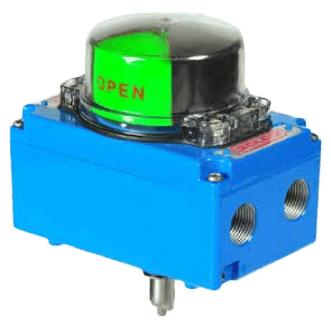

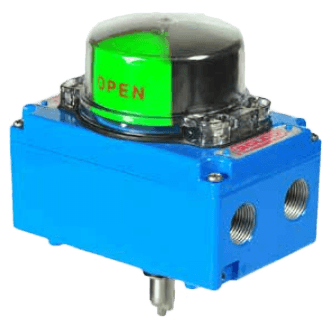

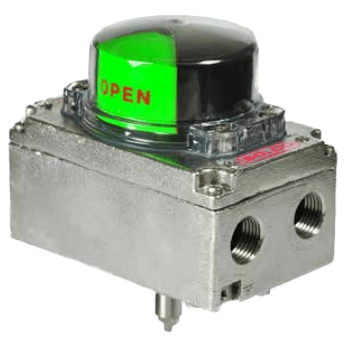

Limit Switch Box designed for safe and hazardous areas, provides a visual and electrical remote position feedback on automated valves.

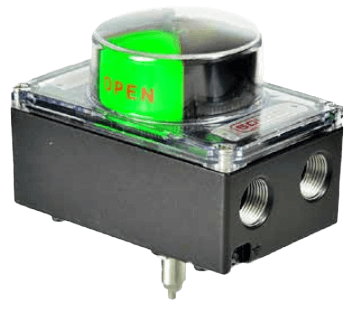

Available in either die cast aluminum, with different lid choices, from the same enclosure material, for a complete metallic device, to the transparent polycarbonate cover or to a flat lid without visual indication. Designed for weather proof applications, it can also matches the Ex ia. IIC T6 standards with the integral intrinsically safe certification, covering both enclosure and electrical components inside.

The Soldo multi-application limit switch box solution, covering from industrial automation to food and beverage, from chemical to maritime, from oil and gas, both on-shore and off-shore, to petrochemical industries.
Features
  • Twin Shaft Design
  • Self Lubricating Bushings
  • Copper Free Aluminium or 316 Stainless Steel Housing Option for Maximum Corrosion Protection
  • 2 Cable Entries either Metric or Imperial
  • Multiple Indicator Options
  • Easy Wiring through the Terminal PCB Board
  • Position Transmitter Board Optional
  • Suitable for Artic Environments
show more
Limit Switch Box designed for safe and hazardous areas, provides a visual and electrical remote position feedback on automated valves.

Available in either die cast aluminum, with different lid choices, from the same enclosure material, for a complete metallic device, to the transparent polycarbonate cover or to a flat lid without visual indication. Designed for weather proof applications, it can also matches the Ex ia. IIC T6 standards with the integral intrinsically safe certification, covering both enclosure and electrical components inside.

The Soldo multi-application limit switch box solution, covering from industrial automation to food and beverage, from chemical to maritime, from oil and gas, both on-shore and off-shore, to petrochemical industries.
Features
  • Twin Shaft Design
  • Self Lubricating Bushings
  • Copper Free Aluminium or 316 Stainless Steel Housing Option for Maximum Corrosion Protection
  • 2 Cable Entries either Metric or Imperial
  • Multiple Indicator Options
  • Easy Wiring through the Terminal PCB Board
  • Position Transmitter Board Optional
  • Suitable for Artic Environments

Specifications

Ambient Temperature Range

  • -60° to 105° C (-76° to 221° F)

Applications

  • Chemical Industry
  • Food & Beverage
  • Industrial Automation
  • Maritime
  • Oil & Gas Applications
  • On-Shore & Off-Shore
  • Petrochemical Industry

Approvals & Certifications

  • ATEX Ex II 2 GD Ex Ia IIC T4/T5/T6, Ex Ia IIIC T44° C to T108° C Db, Ex Ia IIIB T44° C to T108° C Db
  • CCOE Ex II 2 GD Ex Ia IIC T4, T5/T6, Ex Ia IIIC T44° C to T108° C Db, Ex Ia IIIB T44° C to T108° C Db
  • cULus Class I,/2 Division 2,
  • EAC Ex II 2 GD Ex Ia IIC T4/T5/T6, Ex Ia IIIC T44° C to T108° C Db, Ex Ia IIIB T44° C to T108° C Db
  • IEC Ex Ex II 2 GD Ex Ia IIC T4/T5/T6, Ex Ia IIIC T44° C to T108° C Db, Ex Ia IIIB T44° C to T108° C Db
  • SIL 3
  • UL Class I Division 2, Grade A, B, C, D, Class II Division 2, Groups F, G

Cable Entry

  • 1/2" NPT
  • M20 x 1.5

Communication

  • ASI Communication Protocol

Cover Material

  • 316 Stainless Steel
  • Die Cast Aluminum
  • Transparent Polycarbonate

Current

  • 0 to 100 mA - 3-Wire PNP Normally Open

Electrical Contacts

  • Gold-Plated - SPDT
  • Normally Closed
  • Normally Open
  • Silver-Plated - SPDT, DPDT

Electrical Rating

  • 0.1 A at 120 Vac - REED C4 & C8
  • 0.1 A at 30 Vdc - Exia Rating, Maximum
  • 1 A at 24 Vdc - REED C4 & C8
  • 1 A at 250 Vac - NOVA V3™ N3
  • 1 A at 30 Vdc - NOVA V3™ N3
  • 5 A at 250 Vac - High Power Loop for NOVA V3™ N1 & N4
  • 5 A at 28 Vdc - High Power Loop for NOVA V3™ N1 & N4

Enclosure Finish

  • Electro-Polishing
  • Powder-Coated Polyester - Black & Blue Powder

Enclosure, Body Material

  • AISI 316 Stainless Steel
  • Die Cast Aluminum

Environmental Protection

  • IP66
  • IP67
  • NEMA 4
  • NEMA 4X
  • Weatherproof

Indication

  • 3D Plastic Visual Position Indicator (Red & Green) & 3D Stainless Steel Position Indicator

Media

  • Inert Gas Contact Chamber - REED C4 & C8

Sensor, Probe Connection

  • 2-Wire
  • 3-Wire

Sensor, Probe Type

  • NAMUR Sensor

Shaft Material

  • Stainless Steel - Fasteners

Supply Voltage

  • 10-30 Vdc - 3-Wire PNP Normally Open
  • 12-30 Vdc - 4-20 mA Position Transmitter
  • 8-30 Vdc - 4-20 mA HART Position Transmitter

Switch Quantity

  • 2 Switches
  • 3 Switches

Switch Type

  • DPDT - Proximity Hermetically Sealed Snap Acting, Reed
  • SPDT - Proximity Hermetically Sealed Snap Acting, Reed

Temperature Range

  • -60° to 100° C (-76° to 212° F)

Terminal Strip

  • Blue Screw Terminal Strip - with Extra Poles for Solenoid Valve Connection (For Exia Certification)
  • Cage Clamp Terminal Strip - with Extra Poles for Solenoid Valve Connection
  • Screw Terminal Strip - with Extra Poles for Solenoid Valve Connection
  • Terminal PCB Board
