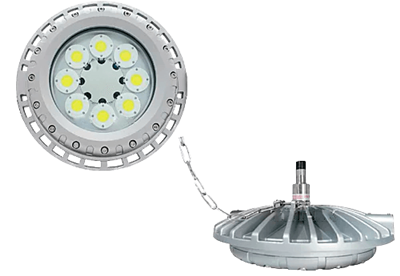

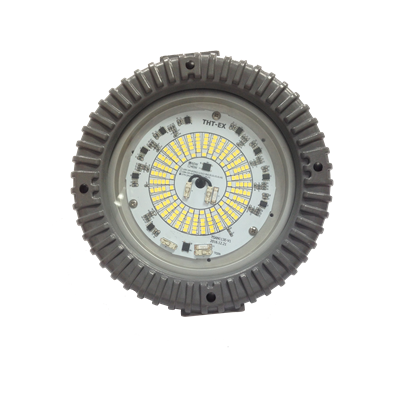

L1105 LED Light, (COB, DOB, SMD), 40W, 60W, cULus Explosion Proof, Class l, Division 2

Brand: Top Hi-Tech Inc
  • L1105: LED Light ( COB, DOB, SMD ) 40W, 60W
  • cULus Explosion-Proof Approved for Canada & USA
    • Class I, Division 2, Group A,B, C, D
    • Class II, Division 1, Group E, F, G
    • Class III
    • IP67 / NEMA 6
  • Ambient Temperature:
    • CID1: -40°C ~ +40°C,T3C
    • CIID1: +40°C,T4
Features
  • "AC IN LED Technology"
    • No Driver (Ballast), to fail, No Efficiency Loss
    • Long Lifespan ( 60,000 hrs )
    • LED Lighting provides 2 million times power cycle
    • High Efficiency, Generates Less Heat
    • Smaller Volume and Light weight
  • High Corrosion Resistance
  • Easy installation and maintenance
  • Applicable to High Temperature Environment
  • Light Color: Cool White / Warm White
  • Retrofit to conventional Explosion-Proof Light
  • L1105: LED Light ( COB, DOB, SMD ) 40W, 60W
  • cULus Explosion-Proof Approved for Canada & USA
    • Class I, Division 2, Group A,B, C, D
    • Class II, Division 1, Group E, F, G
    • Class III
    • IP67 / NEMA 6
  • Ambient Temperature:
    • CID1: -40°C ~ +40°C,T3C
    • CIID1: +40°C,T4
Features
  • "AC IN LED Technology"
    • No Driver (Ballast), to fail, No Efficiency Loss
    • Long Lifespan ( 60,000 hrs )
    • LED Lighting provides 2 million times power cycle
    • High Efficiency, Generates Less Heat
    • Smaller Volume and Light weight
  • High Corrosion Resistance
  • Easy installation and maintenance
  • Applicable to High Temperature Environment
  • Light Color: Cool White / Warm White
  • Retrofit to conventional Explosion-Proof Light
Close

Specifications

Brand

Protection

  • cULus Listed, Hazardous Area
  • Class I, Div. 2 Group A, B, C, D
  • Class II, Div. 1 Group E, F, G
  • Class III

Standards

  • UL 844
  • UL 1598 Luminaires
  • UL 8750
  • CSA C22.2 No. 137-M1981
  • CSA C22.2 No. 30-M1986
  • CSA C22.2 No. 25-1996
  • CSA C22.2 No. 250.0
  • CSA C22.2 No. 250.13

Rated Voltage (±10%)

  • DOB: 120 V / 277 V

Watts (±10%)

  • 40W / 60W (Watts of 24 V are different, please Contact us for details.)

Amps

  • DOB: 40 W (120 V: 0.33 A), (277 V: 0.14 A)
  • DOB: 60 W: (120 V: 0.50 A), (277 V: 0.22 A)
  • SMD: 40 W (120 V: 0.33A), (277 V: 0.14 A)
  • SMD: 60 W (20 V: 0.50 A), (277 V: 0.22 A)
  • COB: 40 W: (24 V: 1.67 A),(120 V: 0.33 A), (277 V: 0.14 A), (480 V: 0.08 A)
  • COB: 60 W: (24 V: 2.50 A), (120 V: 0.50 A), (277 V: 0.22 A), (480 V: 0.13 A)

Color of LED Light (C.C.T.)

  • 3000K (Warm White)
  • 5000K (Cool White)

Ambient Temperature

  • Class I, Div. 2: -40° C ~ +40° C, T3C / CIID1: +40° C,T4
  • Class I, Div. 1: -40° C ~ +40° C, T6 / CIID1: +40° C, T4

Power Factor

  • cos ≥ 0.9
  • cos ≥ 0.87 (480 V)

CRI

  • Cool White ≥ 70
  • Warm White ≥ 80

Lumen (± 10%)

  • 3000K: (40W: 3,800 lm), (60W: 5,700 lm)
  • 5000K: (40W: 4,000 lm), (60W: 6,000 lm)

Beam Angle

  • X-110° / Y-110°

Frequency

  • 50/60 Hz

Degree of Protection

  • IP67 / NEMA 6

Material

  • Enclosure: Aluminum Alloy
  • Glass: Tempered Glass

LED Service Life

  • 60,000 hours

Entrance Thread

  • 1 x NPT 3/4" (M25)

Electrical Cable

  • 3 ft (1 m) c(UL), SOOW Cable, 600 V, 105° C, 3 x 0.824 mm (18 AWG) FT2
Close

Applications

  • Compressor Stations
  • Power Plants
  • Waste Water Treatment Plants
  • Petrochemical Plants
  • Offshore Platforms
  • Paper Mills
  • Shipyards
  • Loading Docks
  • Industrial Plants
