Penetration Style Thermocouple Sensor

Brand: Pyromation
Insertion thermocouple probes are used to monitor internal temperatures of meat, fish, poultry, dough, and other food products, both fresh and slightly frozen varieties. Other uses include penetration of soft process materials such as rubber and plastic compounds.

The materials of construction are all FDA compliant for use in sanitary applications.

The sheaths are made of full hard-drawn 304 Stainless Steel hypodermic tubing with a sharp needle-point insertion tip. Several varieties of handles, leadwire, and termination configurations are available.

Probes are supplied with grounded hot junctions unless otherwise specified and are rated to 200 ºC [392 ºF] maximum temperature limit.
Insertion thermocouple probes are used to monitor internal temperatures of meat, fish, poultry, dough, and other food products, both fresh and slightly frozen varieties. Other uses include penetration of soft process materials such as rubber and plastic compounds.

The materials of construction are all FDA compliant for use in sanitary applications.

The sheaths are made of full hard-drawn 304 Stainless Steel hypodermic tubing with a sharp needle-point insertion tip. Several varieties of handles, leadwire, and termination configurations are available.

Probes are supplied with grounded hot junctions unless otherwise specified and are rated to 200 ºC [392 ºF] maximum temperature limit.
Close

Specifications

Brand

Sheath Material

  • 304 Stainless Steel

Thermocouple Type

  • Type J

Sheath Diameter

  • 0.134", 0.180"

Temination

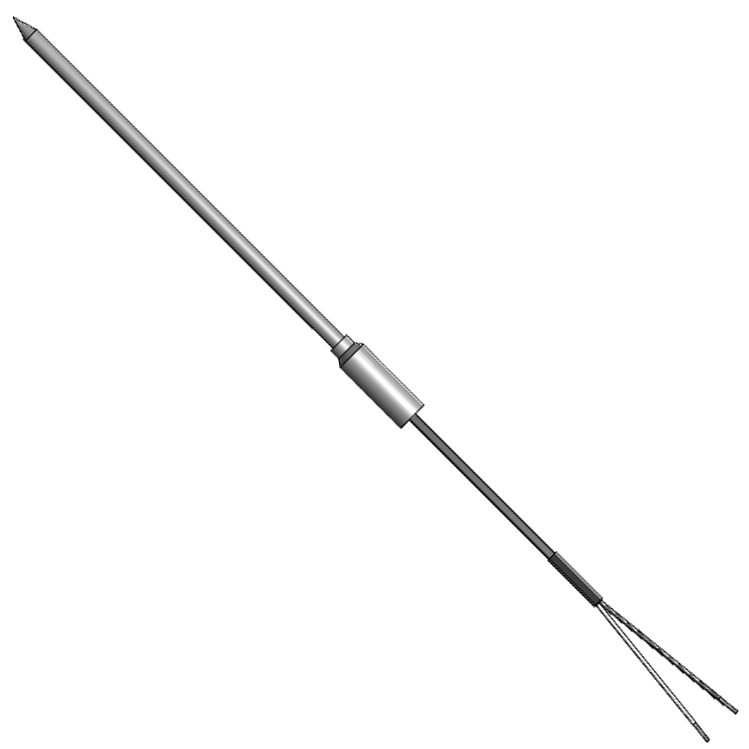

  • 2" split leads, 1/4" stripped
  • 2" split leads with Spade lugs
  • Standard plug

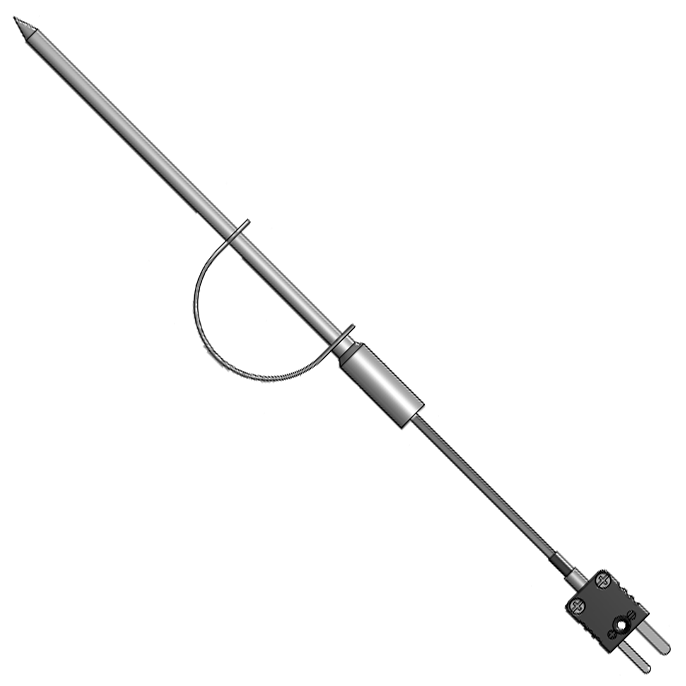

  • Miniature plug

leadwire Insulation

  • Fluoropolymer
Close

Applications

  • Meat, fish, poultry, dough, and other food products, both fresh and slightly frozen varieties.
  • Soft process materials such as rubber and plastic compounds
  • Sanitary applications
