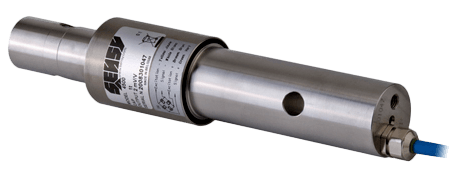

4500 Shear Beam Load Cell

Brand: Sensy S.A.
Load cell for silo weighing combining a sturdy design with an easy installation.
Features
  • Stainless steel
  • Protection IP 67
  • Cost effective solution
  • Sturdy design
  • Easy to install

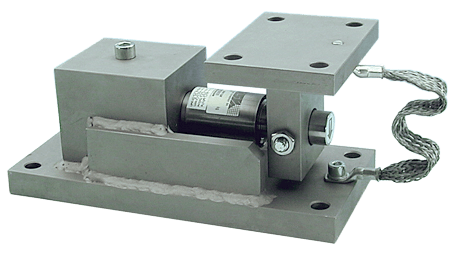

  • Mounting kits available with following properties:
    • Stabilization without tension rods
    • Anti-liftoff device
    • Compensation of thermal dilatations and default of parallelism
  • Option:
    • ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80° C Da
show more
Load cell for silo weighing combining a sturdy design with an easy installation.
Features
  • Stainless steel
  • Protection IP 67
  • Cost effective solution
  • Sturdy design
  • Easy to install
  • Mounting kits available with following properties:
    • Stabilization without tension rods
    • Anti-liftoff device
    • Compensation of thermal dilatations and default of parallelism
  • Option:
    • ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80° C Da
4500-2T-0.1
SENSY Load Pin, Capacity 2t, 300% Breaking Load, 2 mV/V Output Signal, IP67, 6m Cable
3 - 5 weeks
4500-FORC000026
SENSY Single Shear Pin 20,000 lb - Redundant Output
Out of Stock

Specifications

Brand

Accuracy

  • 0.1% of Full Scale

Applications

  • Hoppers
  • Reactors
  • Silos
  • Tanks
  • Vibrating Mixers

Approvals & Certifications

  • ATEX Intrinsic Safety Ex II 1 GD Ex Ia IIC T6 or T4 Ga Ex Ia IIIC T80° C Da
  • CE

Cable Length

  • 20 to 66 feet (6 to 20 meters)

Capacity

  • 0.5 to 50 T

Enclosure, Body Material

  • Stainless Steel

Environmental Protection

  • IP67

Excitation Voltage

  • 10 Vdc

Insulation Resistance

  • > 5,000 MegaOhms

Linearity

  • Error: <± 0.1% of Full Scale

Load

  • > 300% of Full Scale - Breaking Load
  • 50% of Full Scale - Permissible Dynamic Loading

Load Limit

  • 150% of Full Scale

Repeatability

  • Error: <± 0.03% of Full Scale

Resistance

  • Input & Output: 352 ± 2 ohms

Sensitivity

  • <± 0.3%

Service Temperature

  • -30 to 70° C (-22° to 158° F)

Static Lateral Force

  • 100% of Full Scale

Storage Temperature

  • -50 to 85° C (-58° to 185° F)

Temperature Coefficient

  • <± 0.035% of Full Scale/10° C (18° F)
  • <± 0.05% of Full Scale/10° C (18° F)

Zero Balance

  • ± 0.02 mV/V
