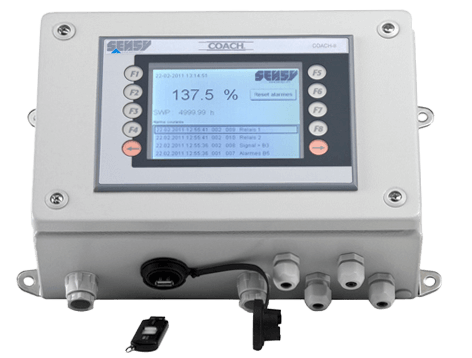

COACH-II Data Recording & Management - System for EOT Crane

Brand: Sensy - Sensors & Synergy S.A.
Request Information
The COACH-II, is a new generation of electronic data logging, monitoring and management system for overhead travelling cranes (EOT); adaptable to other types of crane. It is designed to optimize the maintenance with full knowledge of mechanical stress during use. It can be used as a ìflight recorderî tracing the history of all recent movements.
Features
  • Hourly recording on a duration of 25 years of:
    • Upward (ascent), downward (descent), long travel (translatory) and short travel (trolley direction)
    • Number of inching
    • Lifted loads spectrum and overloads
  • Recording of sequences of recent movements (6 months)
  • SWP (Safe Working Period) calculation
  • Display on front color touch screen: (Lifted load, movements, SWP, alarms, temperatures, etc.)
  • Alarm's detection and management (overloads, SWP, etc.) with activation of a relay
  • Detection of wire break of the Analog input
  • Protection against overvoltage and reverse polarity at the Analog input
  • Coach-II Programming and data retrieval via the USB stick or via Ethernet (option)
  • COACH-II is supplied with the COACH-VIEW (configuration and analysis data by visualizing by means of graphs and tables)
show more
The COACH-II, is a new generation of electronic data logging, monitoring and management system for overhead travelling cranes (EOT); adaptable to other types of crane. It is designed to optimize the maintenance with full knowledge of mechanical stress during use. It can be used as a ìflight recorderî tracing the history of all recent movements.
Features
  • Hourly recording on a duration of 25 years of:
    • Upward (ascent), downward (descent), long travel (translatory) and short travel (trolley direction)
    • Number of inching
    • Lifted loads spectrum and overloads
  • Recording of sequences of recent movements (6 months)
  • SWP (Safe Working Period) calculation
  • Display on front color touch screen: (Lifted load, movements, SWP, alarms, temperatures, etc.)
  • Alarm's detection and management (overloads, SWP, etc.) with activation of a relay
  • Detection of wire break of the Analog input
  • Protection against overvoltage and reverse polarity at the Analog input
  • Coach-II Programming and data retrieval via the USB stick or via Ethernet (option)
  • COACH-II is supplied with the COACH-VIEW (configuration and analysis data by visualizing by means of graphs and tables)
Close
Close

Specifications

Brand

Accuracy

  • 0.1 % of Full Scale

Applications

  • Data Loggers
  • Monitoring
  • Overhead Travelling Cranes (EOT)
  • Overload Controls

Approvals & Certifications

  • CE

Capacity

  • 5 A at 240 Vac/28 Vdc - Breaking Capacity Relays

Communication

  • Ethernet TCP/IP
  • USB

Display

  • 5.7” Touchscreen Color Display

Environmental Protection

  • IP54
  • IP65

Input

  • 0-10 V - Analog Input
  • 4-20 mA - Analog Input

Output

  • 0-10 V - Output Signal
  • 4-20 mA - Output Signal

Power Supply

  • 100-240 Vac
  • 24 Vdc
  • 48 Vac (Option)

Relay Output

  • 2 Relays

Service Temperature

  • 0° to 55° C (32° to 131° F)

Storage Temperature

  • -15° to 70° C (5° to 158° F)
