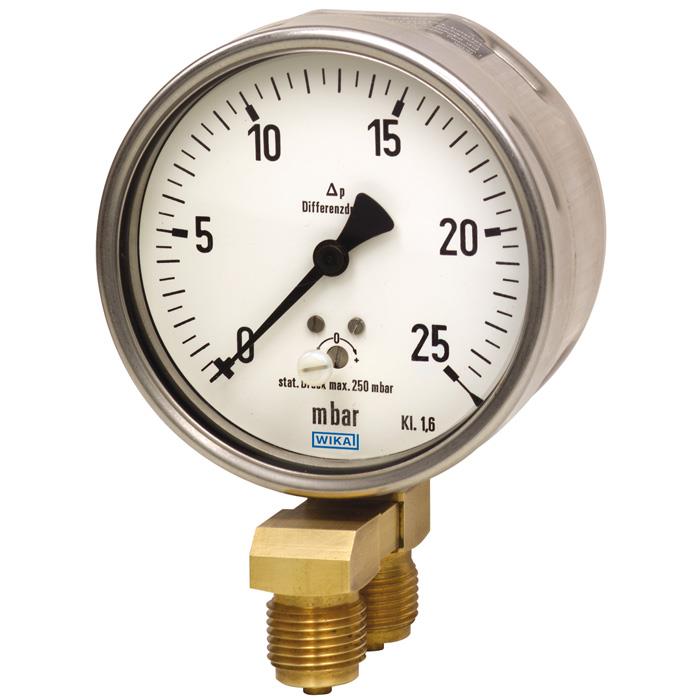

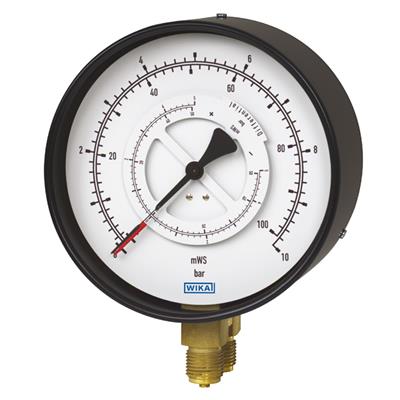

Model 716.11, 736.11 Differential Pressure Gauge

Brand: WIKA Instruments
Request Information
Favorite
For very low differential pressures from 2.5 mbar, copper alloy or stainless steel.
Features
  • Differential pressure measuring ranges from 0 … 2.5 mbar.
  • As a standard zero adjustment in front.
  • Ingress protection IP66.
  • Case from stainless steel.
show more
For very low differential pressures from 2.5 mbar, copper alloy or stainless steel.
Features
  • Differential pressure measuring ranges from 0 … 2.5 mbar.
  • As a standard zero adjustment in front.
  • Ingress protection IP66.
  • Case from stainless steel.
