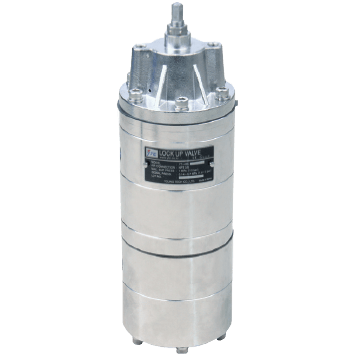

YT-435 Lock Up Valve

Brand: Young Tech Co., Ltd
The YT-435 Lock Up Valve senses the main supply pressure and shuts down the air flow when the pressure is lower than setting.

Features
  • Compact Size - NO Bracket is required
  • Detects small variation of the pressure - below 0.01MPa
  • 100 mesh screen filters small dust entering into the unit
show more
Images are representations only.
The YT-435 Lock Up Valve senses the main supply pressure and shuts down the air flow when the pressure is lower than setting.

Features
  • Compact Size - NO Bracket is required
  • Detects small variation of the pressure - below 0.01MPa
  • 100 mesh screen filters small dust entering into the unit

YT-435

Acting Type

Temperature Range

Specifications

Ambient Temperature Range

  • -20° to 70° C (-4° to 158° F)

Enclosure, Body Material

  • 316 Stainless Steel

Flow Capacity

  • 1.8 Cv

Lock-Up Pressure

  • psig: 101.5 (bar: 7, MPa: 0.7)

NPT Connection

  • 1/4" NPT Female Signal Connection
  • 3/8" NPT Female Air Connection

Pressure Range

  • bar: 1.4 to 7
  • kPa: 140 to 700
  • psig: 20 to 100

Supply Pressure - Maximum

  • bar: 10
  • MPa: 1
  • psi: 145
