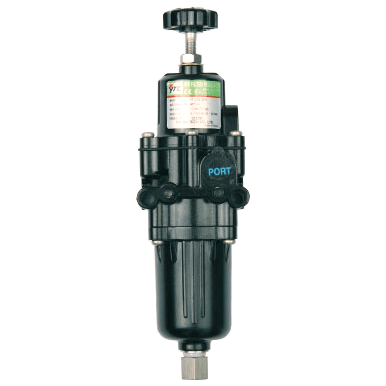

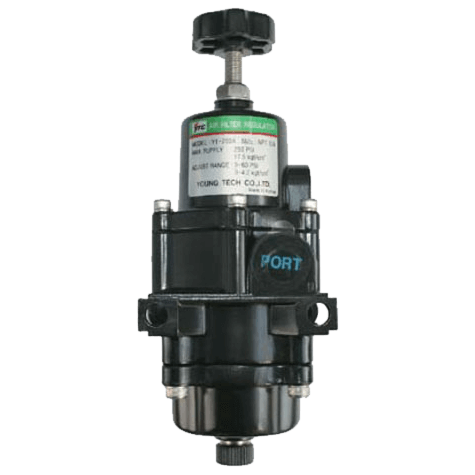

YT-200 1/4" Air Filter Regulator

Brand: Young Tech Co., Ltd
Air filter regulator suitable reduces plant's main air supply pressure and supplies to valve positioner(s) or control device(s).
Features
  • Maintain stable outlet pressure
  • Lightweight and compact size
  • 5 micron filter
  • Relief function
  • Discharge pressure if outer pressure is higher than set pressure
  • Adjustable Set Point Range: psig: 0 to 121.8 (bar: 0 to 8.4 bar, kPa: 0 to 840)
  • Maximum Supply Pressure: psig: 246 (bar: 17, kPa: 1,700)
  • Process Connection: 1/4" in NPT or PT Threads
  • Drain: Manual or Automatic
  • Filter: 5 Micron mimimum particle size
  • Material: Aluminum
  • Temperature Range:
    • -20° to 70°C (-4° to 158°F)
    • -20° to 120°C (-4° to 248°F)
    • -40° to 70°C (-40° to 158°F)
show more
Images are representations only.
Air filter regulator suitable reduces plant's main air supply pressure and supplies to valve positioner(s) or control device(s).
Features
  • Maintain stable outlet pressure
  • Lightweight and compact size
  • 5 micron filter
  • Relief function
  • Discharge pressure if outer pressure is higher than set pressure
  • Adjustable Set Point Range: psig: 0 to 121.8 (bar: 0 to 8.4 bar, kPa: 0 to 840)
  • Maximum Supply Pressure: psig: 246 (bar: 17, kPa: 1,700)
  • Process Connection: 1/4" in NPT or PT Threads
  • Drain: Manual or Automatic
  • Filter: 5 Micron mimimum particle size
  • Material: Aluminum
  • Temperature Range:
    • -20° to 70°C (-4° to 158°F)
    • -20° to 120°C (-4° to 248°F)
    • -40° to 70°C (-40° to 158°F)
11 models matching criteria
YT-200-A-P-2-1-0
YTC YOUNG TECH YT-200 Series 1/4" Air Filter Regulator
4 - 6 weeks
$100.38USD
$8.22 Shipping
YT-200-B-N-2-1-0
YTC YOUNG TECH YT-200 Series Air Filter Regulator, 1/4" NPT, Gauge, Manual Drain
5 - 7 weeks
$143.98USD
$8.22 Shipping
YT-200-B-P-2-1-0
YTC YOUNG TECH YT-200 Series Air Filter Regulator, 1/4" PT, Gauge, Manual Drain
6 - 8 weeks
$143.98USD
$8.22 Shipping
YT-200-A-P-0-1-0
YTC YOUNG TECH YT-200 Series 1/4" Air Filter Regulator
4 - 6 weeks
$152.21USD
$8.22 Shipping
YT-200-B-N-0-1-0
YTC YOUNG TECH YT-200 Series Air Filter Regulator, 1/4" NPT, Manual Drain
4 - 6 weeks
$152.21USD
$8.22 Shipping
YT-200-A-N-2-1-0
YTC YOUNG TECH YT-200 Series 1/4" NPT Air Filter Regulator, 0-1 MPa, Manual Drain
2 - 5 weeks
$159.62USD
$8.22 Shipping
YT-220-B-N-2-1-0
YTC YOUNG TECH YT-220 Series Air Filter Regulator, 1/4" NPT, Gauge, Manual Drain
4 - 6 weeks
$225.44USD
$8.22 Shipping
YT-200-B-N-0-1-1
YTC YOUNG TECH YT-200 Series Air Filter Regulator, 1/4" NPT, Auto Drain
4 - 6 weeks
$238.60USD
$8.22 Shipping
YT-220-B-N-0-3-0
YTC YOUNG TECH YT-220 Series Air Filter Regulator, 1/4" NPT, Gauge, Aluminum Diecasting, Manual Drain
6 - 8 weeks
$280.56USD
$8.22 Shipping
YT-205-A-N-0-1-0
YTC YOUNG TECH YT-200 Series Air Filter Regulator, 1/4" NPT, Manual Drain 0-0.42MPa
6 - 8 weeks
$654.10USD
$8.22 Shipping

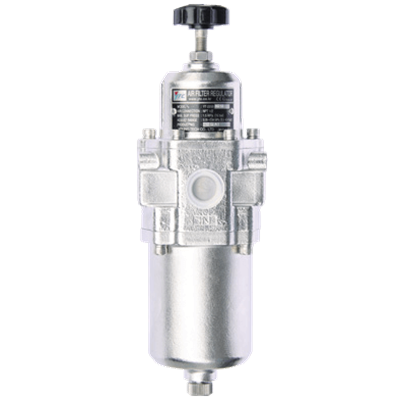

YT-225-A-N-0-1-0
YTC YOUNG TECH YT-200 Series Air Filter Regulator, 1/2" NPT, Manual Drain, 0-0.42MPa
6 - 8 weeks
$973.33USD
$8.22 Shipping

YT-200

Pressure Range

Thread Type

Gauge

Temperature Range

Drain

Specifications

Ambient Temperature Range

  • -20° to 120° C (-4° to 248° F)
  • -20° to 70° C (-4° to 158° F)
  • -40° to 70° C (-40° to 158° F)

Approvals & Certifications

  • CE

Enclosure, Body Material

  • Aluminum Die Cast

Filter

  • 5 microns

Gauge Connection

  • 1/4" NPT
  • 1/4" PT

Media

  • Air

NPT Connection

  • 1/4" NPT Female

Pressure Range

  • bar: 0 to 8.4
  • kPa: 0 to 840
  • MPa: 0 to 0.84
  • psig: 0 to 121

PT/PF/PS (JIS) Connection

  • 1/4" PT Female

Supply Pressure - Maximum

  • bar: 17
  • kPa: 1,700
  • MPa: 1.7
  • psi: 246
