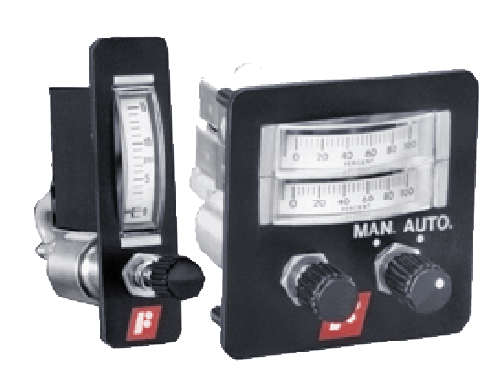

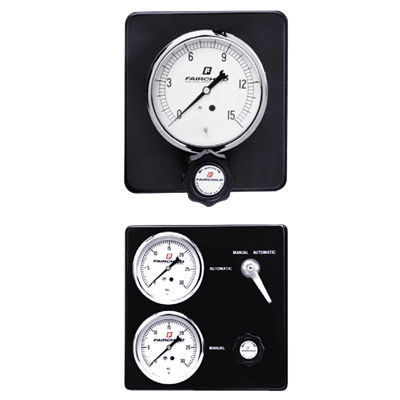

MPL-70 / MPLT-70 Mini Panel Loading Station

Brand: Fairchild Industrial Products
Request Information
Rotork Fairchild Models MPL-70 and MPLT-70 Mini-panel Loading Stations transmit and monitor a pressure signal for pneumatic instrumentation.

These loading stations are ideally suited for applications with limited space.

The Model MPL-70 includes a Model 70B Pneumatic Subminiature Regulator and a mini-strip gauge to set and read pressure at the panel.

The MPLT-70, with the Transfer Function, includes a Model 70B Pneumatic Subminiature Regulator, an automatic or manual switch, and an additional mini-strip gauge to monitor the process in automatic mode or change pressure settings in manual mode.

Turn the adjusting knob in the loading station panel in a clockwise direction to increase output pressure or in a counterclockwise direction to decrease output pressure.
Features
  • Low air consumption reduces air usage and cost
  • Horizontal or vertical gauge scales available to suite master panel layout
  • Mounting brackets attached for easy installation into master panel
show more
Rotork Fairchild Models MPL-70 and MPLT-70 Mini-panel Loading Stations transmit and monitor a pressure signal for pneumatic instrumentation.

These loading stations are ideally suited for applications with limited space.

The Model MPL-70 includes a Model 70B Pneumatic Subminiature Regulator and a mini-strip gauge to set and read pressure at the panel.

The MPLT-70, with the Transfer Function, includes a Model 70B Pneumatic Subminiature Regulator, an automatic or manual switch, and an additional mini-strip gauge to monitor the process in automatic mode or change pressure settings in manual mode.

Turn the adjusting knob in the loading station panel in a clockwise direction to increase output pressure or in a counterclockwise direction to decrease output pressure.
Features
  • Low air consumption reduces air usage and cost
  • Horizontal or vertical gauge scales available to suite master panel layout
  • Mounting brackets attached for easy installation into master panel
