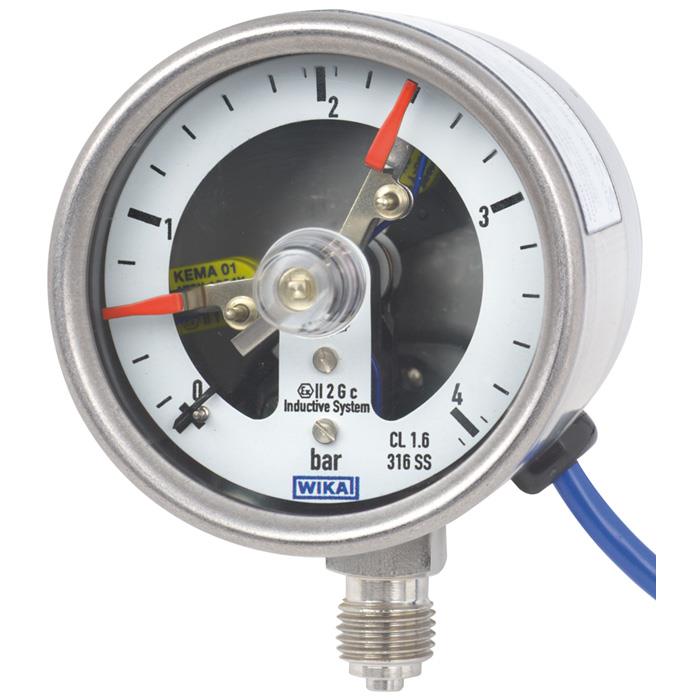

Bourdon Tube Pressure Gauge with Switch Contacts - PGS23.063

Brand: WIKA Instruments
Request Information
Favorite
Wherever the process pressure has to be indicated locally and, at the same time, circuits need to be switched, the model PGS23.063 switchGAUGE finds its use.
Features
  • High reliability and long service life.
  • Up to 2 switch contacts per instrument.
  • Gauges with inductive contacts for use in hazardous area with ATEX approval.
  • Gauges with electronic contacts for PLC applications.
  • Gauges in safety version S3.
show more
Wherever the process pressure has to be indicated locally and, at the same time, circuits need to be switched, the model PGS23.063 switchGAUGE finds its use.
Features
  • High reliability and long service life.
  • Up to 2 switch contacts per instrument.
  • Gauges with inductive contacts for use in hazardous area with ATEX approval.
  • Gauges with electronic contacts for PLC applications.
  • Gauges in safety version S3.
Close

Specifications

Brand

Nominal Size in mm

  • 63

Accuracy Class

  • 1.6

Scale Ranges

  • other units (e.g. psi, kPa) available or all other Equivalent vacuum or combined Pressure and vacuum Ranges
  • 0 to 4 bar [0 to 58 psi] to 0 to 400 bar [0 to 5,802 psi]

Scale

  • Option: Dual Scale
  • Single scale

Pressure Limitation

  • Short Time: Full Scale Value
  • Fluctuating: 2/3 x Full Scale Value
  • Steady: 3/4 x Full Scale Value

Connection Location

  • Lower Back Mount
  • Lower Mount (Radial)

Process Connection

  • 1/8” NPT
  • 1/4” NPT
  • G 1/8” B
  • G 1/4” B

Permissible Temperature

  • Ambient: -20° to +60° C [-4° to 140° F]
  • Medium: +100° C [+212° F] Max.

Temperature Effect

  • When the temperature of the measuring system deviates from the reference temperature (+20° C): Max. ± 0.4 %/10 K of Full Scale Value

Case

  • Safety version S3 per EN 837: with solid baffle wall (Solidfront) and blow-out back

Case Filling

  • Without

Wetted Materials

  • Process Connection, Pressure Element: 316L Stainless Steel, option: Monel (Model PGS26)

Non-Wetted Materials

  • Option: Laminated Safety Glass
  • Window Polycarbonate
  • Set Pointer: Aluminium, Red
  • Instrument Pointer: Aluminium, Black
  • Dial: Aluminium, White, Black Lettering
  • Case, movement, bayonet Ring: Stainless Steel

Ingress Protection Per IEC / EN 60529

  • IP54

Electrical Connection

  • Cable length 2 m, facing downwards and to the right
  • Material: PVC
  • others on Request
Close

Typical Applications

  • Control and regulation of processes
  • Monitoring of plants and switching of circuits
  • For gaseous and liquid aggressive media that are not highly viscous or crystallising, also in aggressive environments
  • Chemical industry, petrochemical industry, power plants, mining, on-/offshore, environmental technology, machine building and general plant construction
