Images are representations only.
Description
Features:
- 316L stainless steel
- Arctic service options to -50° C (-58° F)
- Subsea availability
Configure

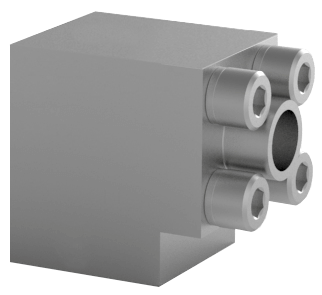

FP15/SV
Specifications
Specifications
Brand
Enclosure, Body Material
- 316L Stainless Steel
Flow Rate
- 0.5 scfm (15 LPM) at psi: 145 (kPa: 1,000, bar: 10)
Media
- Chemicals
- Mineral Oil
- Sea Water (Filtered)
- Water Glycol Mixtures
NACE & NIST
- NACE MR-01-75
NPT Connection
- 1/4" NPT Female
O-Ring Material
- Nitrile
- Viton
Pressure Range
- psi: 0 to 10,000 (kPa: 0 to 69,000, bar: 0 to 690)
Seat/Seal Material
- Alternative Elastomer
- Seal: PTFE
- Seals: Nitrile (Standard)
- Seat: 316L Stainless Steel
- Seat: PEEK
Supply Pressure - Maximum
- psi: 10,000 (kPa: 69,000, bar: 690) - Maximum
Temperature Range
- -20° to 180° C (-4° to 356° F) - Viton
- -30° to 130° C (-22° to 266° F) - Nitrile
- -46° to 130° C (-50.8° to 266° F) - Low Temperature Nitrile
Documentation
Documentation
Reviews (0)
Review this product and let us know your experiences
Write a ReviewQ & A (0)
Ask a Question
Write a QuestionSimilar Products

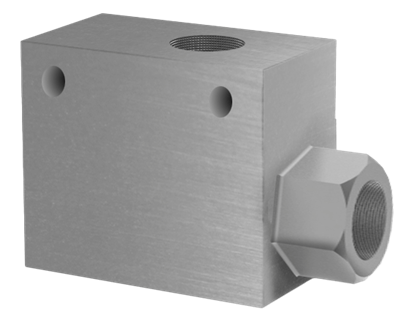

FP50/SV & FPS50/SV Hydraulic Shuttle Valve
Bifold Group

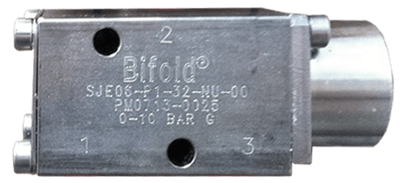

J06 Pilot & Mechanical Valve
Bifold Group

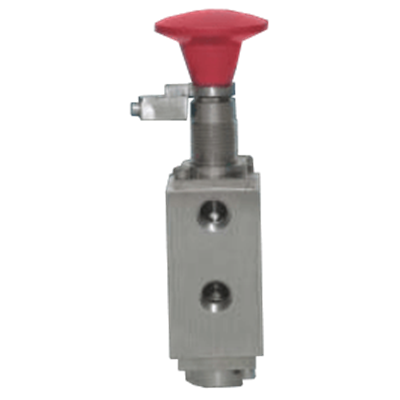

JJ06 Pilot & Mechanical Valve
Bifold Group

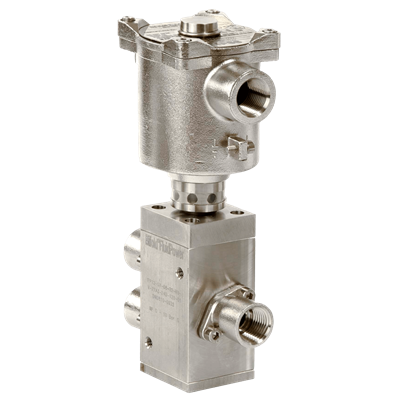

FP12P 3/2 Direct-Acting Solenoid Valve
Bifold Group

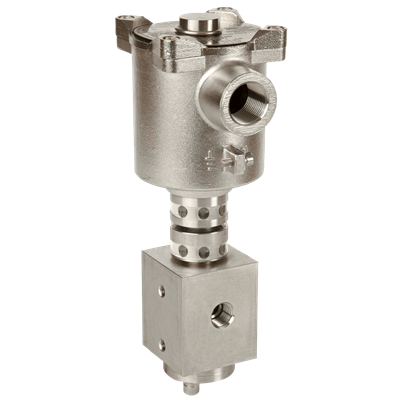

FP10P 3/2 Direct-Acting Solenoid Valve
Bifold Group
SPR-16 5/2 Pilot-Operated Direct-Acting Solenoid
Bifold Group

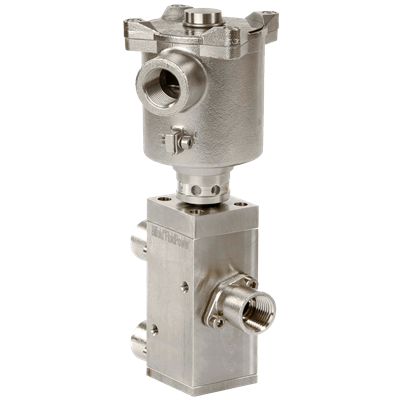

SPR-08 3/2 Pilot-Operated Direct-Acting Solenoid
Bifold Group

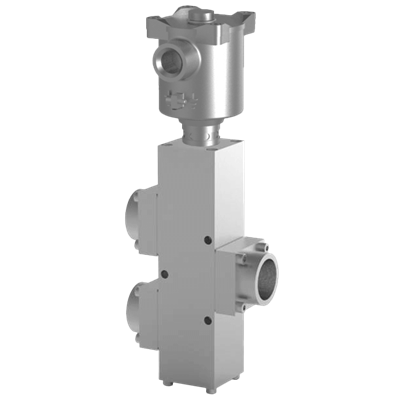

SPR-16 3/2 Pilot-Operated Direct-Acting Solenoid
