Description
Features
- Highly reliable devices utilizing the CCS Dual-Snap® Belleville disc spring principle pioneered by CCS’ engineers.
- Engineering based on aerospace technology.
- Rigid, compact and externally adjustable for factory setting or convenient field set point adjustment.
- Repeatable and stable set points.
- Vibration and shock resistant.
- High cycle life.
- High over-pressure capability. (System and Proof)
- Certified explosion proof hermetically sealed electrical assembly for environmental protection
- Various options for wetted materials and electrical ratings to meet a wide range of application requirements and media compatibility.
Inventory
Displaying prices & availability for Virginia, United States in USD. Change location or currency
14 models matching criteria

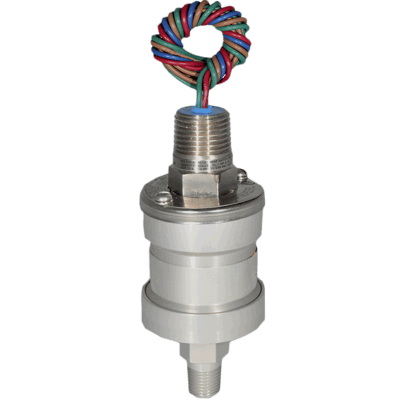

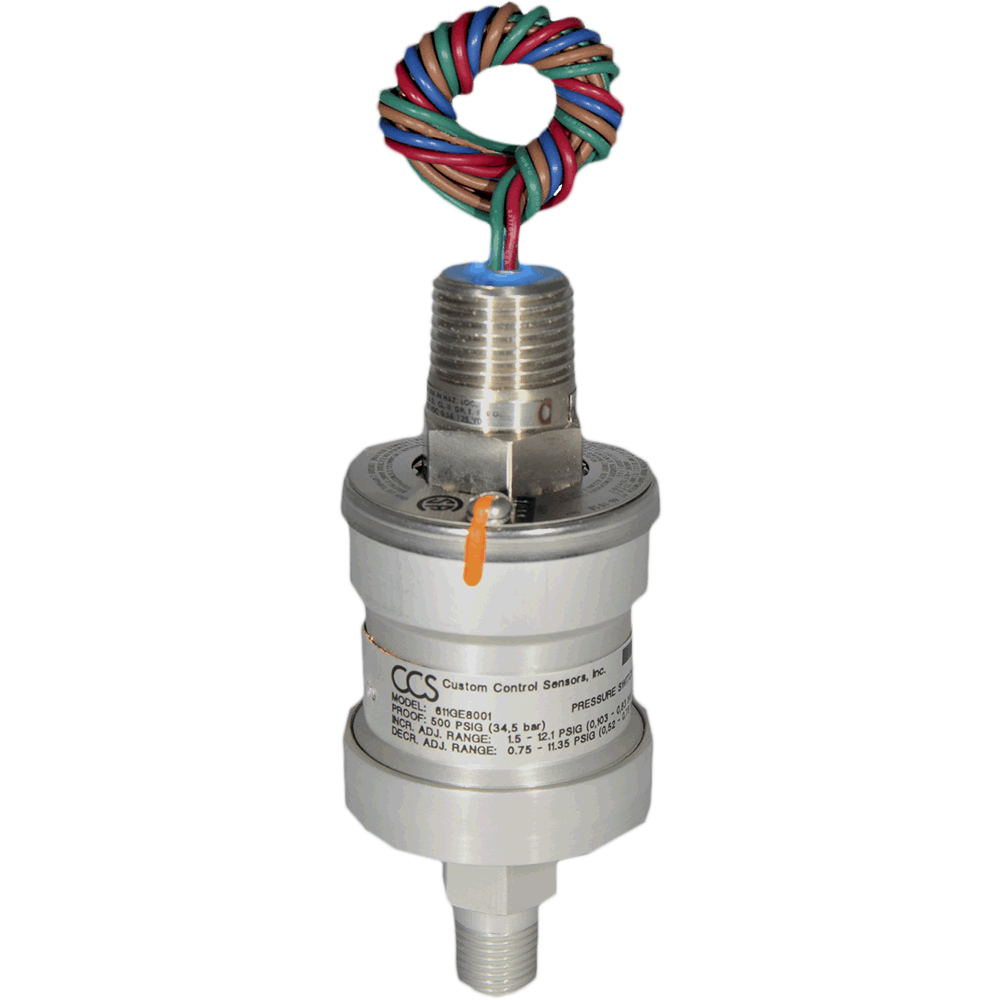

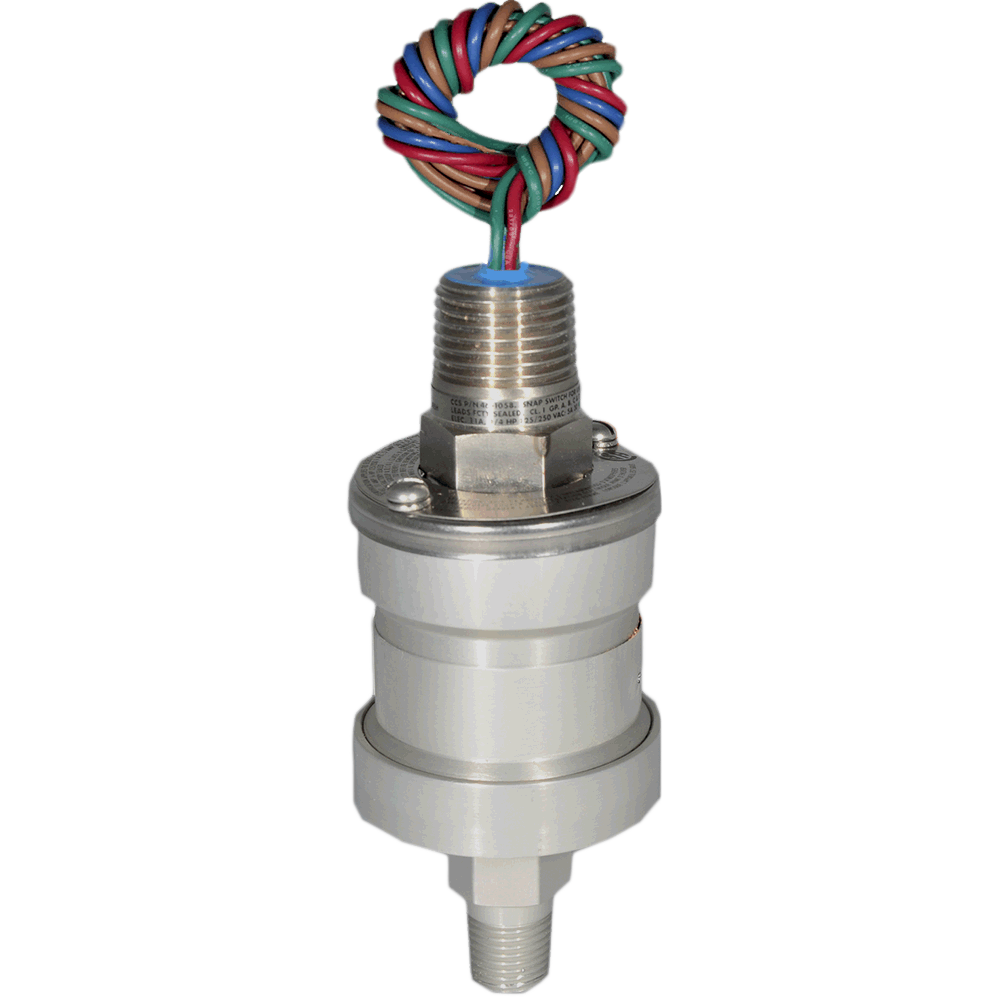

CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/4" NPT SST Welded Capsule
View More
- Fixed Set Point Range:
- Increasing: 1.5 to 25 psig, 10.34 to 172.37 kPa, 0.103 to 1.72 bar
- Decreasing: 1 to 23 psig, 6.89 to 158.6 kPa, 0.069 to 1.59 bar
- Deadband: Average:
- At Bottom of Range: 0.75 psig, 5.17 kPa, 0.052 bar
- At Top of Range: 2 psig, 13.79 kPa, 0.138 bar
- System Pressure (Maximum): 250 psig, 1723.69 kPa, 17.2 bar
- Proof Pressure: 500 psig, 3447.39 kPa, 34.5 bar
- Wetted Materials:
- Pressure Port: 1/4" MNPT Aluminum
- Diaphragm: Polyimide
- Welded Capsule
- Relay: SPDT
- UL, CSA
- Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
- CE Mark, Hermetically Sealed Electrical Assembly, CRN
Contact For Inventory
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/4" NPT SST Welded Capsule
View More
- Pressure Port: 1/4" MNPT Aluminum
- Diaphragm: 316 Stainless Steel, Welded, O-Ring: Buna N, Relay: SPDT
- Fixed Set Point Range:
- Increasing: 1.5 to 25 psig, 10.4 to 172.3 kPa, 0.103 to 1.72 bar
- Decreasing: 1 to 23 psig, 6.9 to 158.5 kPa, 0.069 to 1.59 bar
- Deadband: Average
- At Bottom of Range: 0.75 psi, 5.17 kPa, 0.052 bar
- At Top of Range: 2 psi, 13.79 kPa, 0.138 bar
- Maximum System Pressure: 250 psig, 1723.69 kPa, 17.2 bar
- Proof Pressure: 500 psig, 3447.38 kPa, 34.5 bar
- UL, CSA
- Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
- CE Mark, NACE, CRN
Contact For Inventory
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/4" NPT SST Welded Capsule
View More
- Pressure Port: 1/4" MNPT Aluminum
- Diaphragm: 316 Stainless Steel, Welded, O-Ring: Buna N, Relay: SPDT
- Fixed Set Point Range:
- Increasing: 1.5 to 25 psig, 10.4 to 172.3 kPa, 0.103 to 1.72 bar
- Decreasing: 1 to 23 psig, 6.9 to 158.5 kPa, 0.069 to 1.59 bar
- SET AT 3 PSI DECREASING
- Deadband: Average
- At Bottom of Range: 0.75 psi, 5.17 kPa, 0.052 bar
- At Top of Range: 2 psi, 13.79 kPa, 0.138 bar
- Maximum System Pressure: 250 psig, 1723.69 kPa, 17.2 bar
- Proof Pressure: 500 psig, 3447.38 kPa, 34.5 bar
- UL, CSA
- Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
- CE Mark, NACE, CRN
Contact For Inventory
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/4" NPT SST Welded Capsule
View More
- Pressure Port: 1/4" MNPT Aluminum
- Diaphragm: 316 Stainless Steel, Welded, O-Ring: Buna N, Relay: SPDT
- Fixed Set Point Range:
- Increasing: 1.5 to 25 psig, 10.4 to 172.3 kPa, 0.103 to 1.72 bar
- Decreasing: 1 to 23 psig, 6.9 to 158.5 kPa, 0.069 to 1.59 bar
- Deadband: Average
- At Bottom of Range: 0.75 psi, 5.17 kPa, 0.052 bar
- At Top of Range: 2 psi, 13.79 kPa, 0.138 bar
- Maximum System Pressure: 250 psig, 1723.69 kPa, 17.2 bar
- Proof Pressure: 500 psig, 3447.38 kPa, 34.5 bar
- UL, CSA
- Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
- CE Mark, NACE, CRN
Contact For Inventory
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/4" NPT SST Welded Capsule
View More
- Pressure Port: 1/4" MNPT Aluminum
- Diaphragm: 316 Stainless Steel, Welded, O-Ring: Buna N, Relay: SPDT
- Fixed Set Point Range:
- Increasing: 1.5 to 25 psig, 10.4 to 172.3 kPa, 0.103 to 1.72 bar
- Decreasing: 1 to 23 psig, 6.9 to 158.5 kPa, 0.069 to 1.59 bar
- Deadband: Average
- At Bottom of Range: 0.75 psi, 5.17 kPa, 0.052 bar
- At Top of Range: 2 psi, 13.79 kPa, 0.138 bar
- Maximum System Pressure: 250 psig, 1723.69 kPa, 17.2 bar
- Proof Pressure: 500 psig, 3447.38 kPa, 34.5 bar
- UL, CSA
- Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
- CE Mark, NACE, CRN
Contact For Inventory
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/4" NPT SST Welded Capsule
View More
- Pressure Port: 1/4" MNPT Aluminum
- Diaphragm: 316 Stainless Steel, Welded, O-Ring: Buna N, Relay: SPDT
- Fixed Set Point Range:
- Increasing: 26 to 80 psig, 179.3 to 551.5 kPa, 1.79 to 5.51 bar
- Decreasing: 23 to 73.5 psig, 158.6 to 506.7 kPa, 1.59 to 5.07 bar
- Deadband: Average
- At Bottom of Range: 3 psi, 20.68 kPa, 0.21 bar
- At Top of Range: 6.5 psi, 44.81 kPa, 0.448 bar
- Maximum System Pressure: 500 psig, 3447.38, 68.9 bar
- Proof Pressure: 1000 psig, 6894.76 kPa, 68.9 bar
- UL, CSA
- Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
- CE Mark, NACE, CRN
Contact For Inventory
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/4" NPT
Contact For Inventory
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N
View More
- Fixed Set Point Range:
- Increasing: 26 to 80 psi, 179.3 to 551.5 kPa, 1.79 to 5.51 bar
- Decreasing: 23 to 73.5 psi, 158.6 to 506.7 kPa, 1.59 to 5.07 bar
- Deadband at Bottom of Range: Approximately 3 psi, 20.68 kPa, 0.21 bar
- Deadband at Top of Range: Approximately 6.5 psi, 44.82 kPa, 0.448 bar
- System Pressure (Maximum): 500 psi, 3447.38 kPa, 34.5 bar
- Proof Pressure: 1000 psi, 6894.75 kPa, 68.9 bar
- Wetted Materials:
- Pressure Port: 1/4" MNPT Aluminum
- Diaphragm: 316 Stainless Steel, Welded
- O-Ring: Buna N
- Relay: SPDT
- UL, CSA
- Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
- CE Mark
Contact For Inventory
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/4" NPT Alum. Port, Polyimide, Buna-N, SST WeldedCapsule
Contact For Inventory
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/4" NPT Alum. Port, Polyimide, Buna-N
Contact For Inventory
Configure
Specifications
Specifications
Brand
Adjustment Type
- Factory Set (Pre-Set)
- Field Adjustable
Approvals & Certifications
- ATEX
- CE
- CRN
- CRN - Alberta
- CRN - British Columbia
- CRN - N.W. Territories
- CRN - Saskatchewan
- CSA
- EMC
- GOST-R
- IEC Ex
- RoHS
- RTN
- UL
Deadband, Approximate - Bottom of Range
- bar: 0.052 to 1.03
- kPa: 5.2 to 103.4
- psi: 0.75 to 15
Deadband, Approximate - Top of Range
- bar: 0.138 to 1.86
- kPa: 13.8 to 186.1
- psi: 2 to 27
Diaphragm Material
- Polyimide
Electrical - Free Leads
- 18” (45 cm) Free Leads
- 18” (45 cm) Teflon Leadwire
Electrical Assembly
- Hermetic Seal
Electrical Certification
- ATEX - SIRA Certified for Potentially Explosive Atmospheres. Models 6****Y, II 2 GD Ex d IIC, 08-ATEX-
- c-UL, UL/CSA Explosion-proof: Div. 1, 2 Hermetically Sealed Electrical Assembly P/N 46-1058 (46-1061 for M (DPDT) Model Option), Listed by Both Underwriter's Laboratories, Inc. (File No. E32961) & Canadian Standard Association (CSA) Testing Laboratories
- IECEx - SIRA Certified, SIR 10,0193X (Option Y)
Electrical Connectors
- 1/2” NPT Male
Electrical Contacts
- Gold
- Silver
Electrical Rating
- 1 A at 125 Vac, 50/60 Hz
- 11 A at 125/250 Vac
Enclosure, Body Material
- Aluminum
Environmental Protection
- IP65
- IP66
- NEMA 13
- NEMA 4
NACE & NIST
- NACE
Operating Temperature
- -40° to 86° C (-40° to 187° F)
O-Ring Material
- Buna-N
- Ethylene Propylene (EPR)
- Viton
Process Connection Material
- Aluminum
- Brass
Proof Pressure
- bar: 34.5 to 68.9
- kPa: 3,447 to 6,895
- psig: 500 to 1,000
Service
- Sweet (Oil & Gas)
Set Point - Decreasing
- bar: 0.07 to 10.55
- kPa: 6.9 to 1,055
- psig: 1 to 153
Set Point - Increasing
- bar: 0.103 to 12.41
- kPa: 10.4 to 1,241
- psig: 1.5 to 180
System Pressure
- bar: 17.2 to 34.5
- kPa: 1,724 to 3,447
- psig: 250 to 500
UNF/UNC Connection
- 7/16”-20 UNF Male
