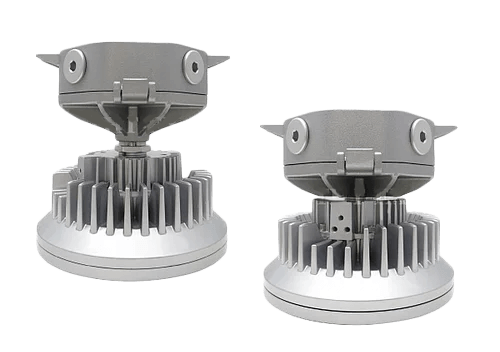

L1102J (COB/SMD) Hazardous Location LED Light

Brand: Top Hi-Tech Inc.
Request Information
Favorite
Standards & Protections:
  • CSA C22.2 (No. 147-18), (No. 250.0), (No. 250.13)
  • UL 844, UL 1598, UL 8750
  • IP rating IP67 (NEMA 6)
  • Class I, Division 2, Group A, B, C, D
Features
  • Model No.：L1102J (COB/SMD)
  • Suitable for various Hazardous Locations
  • Design with junction box for quick and easy installation.
  • Direct mount onto the ceiling, no extra bracket is required.
  • Hassle-free of lighting connection via multi-directional box entry.
  • Flexible box assembly as per worksite requirement.
  • Applicable to 100°C high temp. environment
  • Light Color: Cool White / Warm White
show more
Standards & Protections:
  • CSA C22.2 (No. 147-18), (No. 250.0), (No. 250.13)
  • UL 844, UL 1598, UL 8750
  • IP rating IP67 (NEMA 6)
  • Class I, Division 2, Group A, B, C, D
Features
  • Model No.：L1102J (COB/SMD)
  • Suitable for various Hazardous Locations
  • Design with junction box for quick and easy installation.
  • Direct mount onto the ceiling, no extra bracket is required.
  • Hassle-free of lighting connection via multi-directional box entry.
  • Flexible box assembly as per worksite requirement.
  • Applicable to 100°C high temp. environment
  • Light Color: Cool White / Warm White
Close

Specifications

Brand

Rated Voltage (±10%)

  • COB: 120V / 277V / 480V AC
  • SMD: 120V / 277V AC

Watts (±10%)

  • SMD: 65W / 75W / 95W
  • COB: 60W / 80W / 100W

Amps

  • 95W: 120V: 0.79A, 277V: 0.34A
  • 75W: 120V: 0.63A, 277V: 0.27A
  • 65W: 120V: 0.54A, 277V: 0.23A
  • 100W: 120V: 0.83A, 277V: 0.36A, 480V: 0.21A
  • 80W: 120V: 0.67A, 277V: 0.29A, 480V: 0.17A
  • 60W: 120V: 0.50A, 277V: 0.22A, 480V: 0.13A

Color of LED Light

  • 3000K (Warm White)
  • 5000K (Cool White)

Ambient Temperature

  • Class I Division 2: -40°C ~ 40°C

Power Factor

  • cos≧0.87(480V)
  • cos≧0.9

Lumen (+ 10%)

  • SMD 5000K: 65W 6500lm, 75W: 7500lm, 95W: 9500lm
  • SMD 3000K: 65W: 6175lm, 75W: 7215lm, 95W: 8550lm
  • COB 5000K: 60W: 6000lm, 80W: 8000lm, 100W: 10000lm
  • COB 3000K: 60W: 5700lm, 80W: 7600lm, 100W: 9000lm

Beam Angle

  • X-110° / Y-110°

Degree of Protection

  • IP67 / NEMA 6

Material

  • Glass: Tempered Glass
  • Enclosure: Aluminum Alloy

LED Service Life

  • 60,000 Hours

Entrance Thread

  • 1 x NPT 3/4
Close
