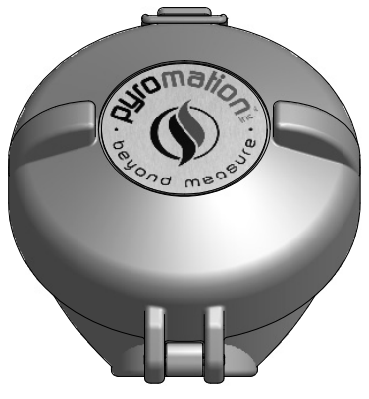

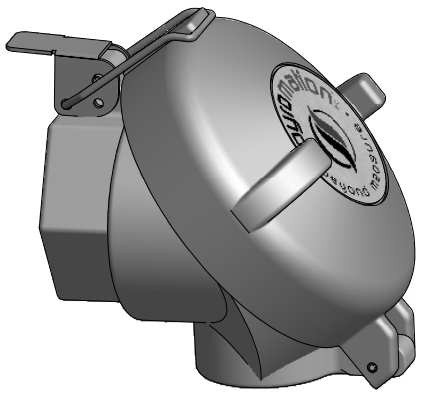

Series 49 Die-Cast Aluminum Flip-Top Connection Head

Brand: Pyromation
The 49 series flip-top aluminum connection heads meet NEMA 4 requirements for indoor or outdoor applications.

The 49 series flip-top aluminum head utilize an EPDM O-ring seal with a maximum temperature rating of 400° F. The flip cover provides easy access to the terminals for wiring or maintenance. These connection heads accept the Pyromation 340 series terminal blocks, 400 series transmitters, and DIN Form B blocks and transmitters.
show more
The 49 series flip-top aluminum connection heads meet NEMA 4 requirements for indoor or outdoor applications.

The 49 series flip-top aluminum head utilize an EPDM O-ring seal with a maximum temperature rating of 400° F. The flip cover provides easy access to the terminals for wiring or maintenance. These connection heads accept the Pyromation 340 series terminal blocks, 400 series transmitters, and DIN Form B blocks and transmitters.

Specifications

Brand

Environmental Protection

  • NEMA 4

Enclosure / Body Material

  • Aluminum

O-Ring

  • EPDM

Process Connection

  • 1/2" NPT
  • 3/4" NPT
