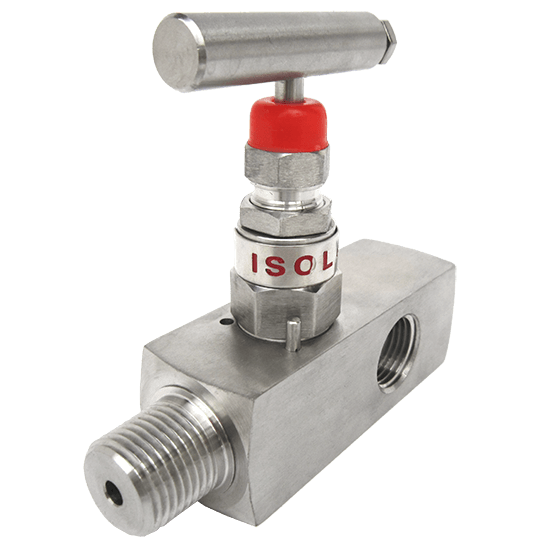

Gauge Valve

Brand: Mac-Weld Machining Ltd.
  • Inlet (Process) Connection: 1/2" Male NPT, 3/4" Male NPT
  • Outlet (Process) Connection: 1/2" Female NPT
  • Max Pressure: 6000 psig (414 bar) at 100°F (38°C)
  • Construction Material:
    • Stainless Steel Body
    • PTFE Packing
show more
Images are representations only.
  • Inlet (Process) Connection: 1/2" Male NPT, 3/4" Male NPT
  • Outlet (Process) Connection: 1/2" Female NPT
  • Max Pressure: 6000 psig (414 bar) at 100°F (38°C)
  • Construction Material:
    • Stainless Steel Body
    • PTFE Packing

Gauge Valve

Enclosure Material

Inlet (Process) Connection Size

Outlet (Instrument) Connection Size

Specifications

Enclosure, Body Material

  • 316L Stainless Steel

Handle Assembly Material

  • 304 Stainless Steel

NPT Inlet

  • 1/2" NPT Male
  • 3/4" NPT Male

NPT Outlet

  • 1/2" NPT Female

Pressure Rating

  • psig: 6,000 at 38° C (100° F)

Seat/Seal Material

  • PTFE

Stem Material

  • 316L Stainless Steel
