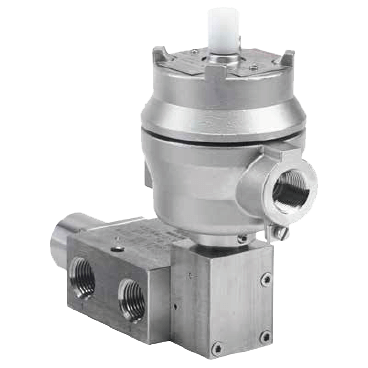

1600 Series Pilot-Operated Spring-Return

Brand: Midland-ACS
A Range of 3/2 and 5/2 Solenoid Operated Spool Valves in Stainless Steel for Use on Gases.
Features
  • Specifically Designed for Severe Environments
  • 3/2 and 5/2 Versions
  • Ambient Temperature range -20° to 180º C (-4° to 356º F)
  • 316L Stainless Steel Construction
  • Designed for Actuator Control
show more
Images are representations only.
A Range of 3/2 and 5/2 Solenoid Operated Spool Valves in Stainless Steel for Use on Gases.
Features
  • Specifically Designed for Severe Environments
  • 3/2 and 5/2 Versions
  • Ambient Temperature range -20° to 180º C (-4° to 356º F)
  • 316L Stainless Steel Construction
  • Designed for Actuator Control

1600 Series Pilot SR

Function

Mode

Valve Type

Temperature Options

Solenoid

Voltage

Specifications

Brand

Ambient Temperature Range

  • -20° to 180° C (-4 to 356° F)

Approvals & Certifications

  • ATEX
  • CE
  • CSA
  • EAC
  • IECEx
  • UL

Enclosure, Body Material

  • 316L Stainless Steel

Environmental Protection

  • IP55
  • IP65
  • IP66
  • IP67
  • NEMA 4
  • NEMA 7
  • NEMA 9

Flow Capacity

  • 3/2 & 5/2 Valves - 123 scfm (210 m³/hour) 3.5 Cv

Media

  • Air
  • Gases - Filtered Lubricated or Non-Lubricated
  • Inert Gas
  • Sweet Natural Gas

NACE & NIST

  • NACE

NPT Connection

  • 1/2” Female NPT Line Port
  • 1/8” Female NPT Pilot Ports

Seat/Seal Material

  • Fluoroelastomer

Spring Material

  • 316 Stainless Steel

Supply Pressure - Maximum

  • psi: 174 (bar: 12, kPa: 1,200)
