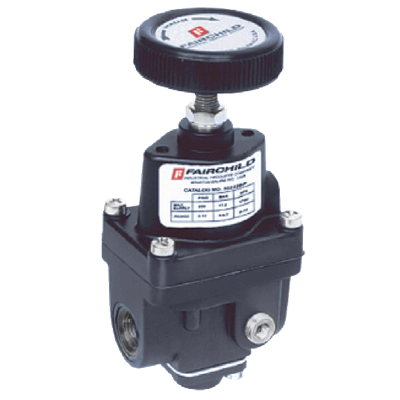

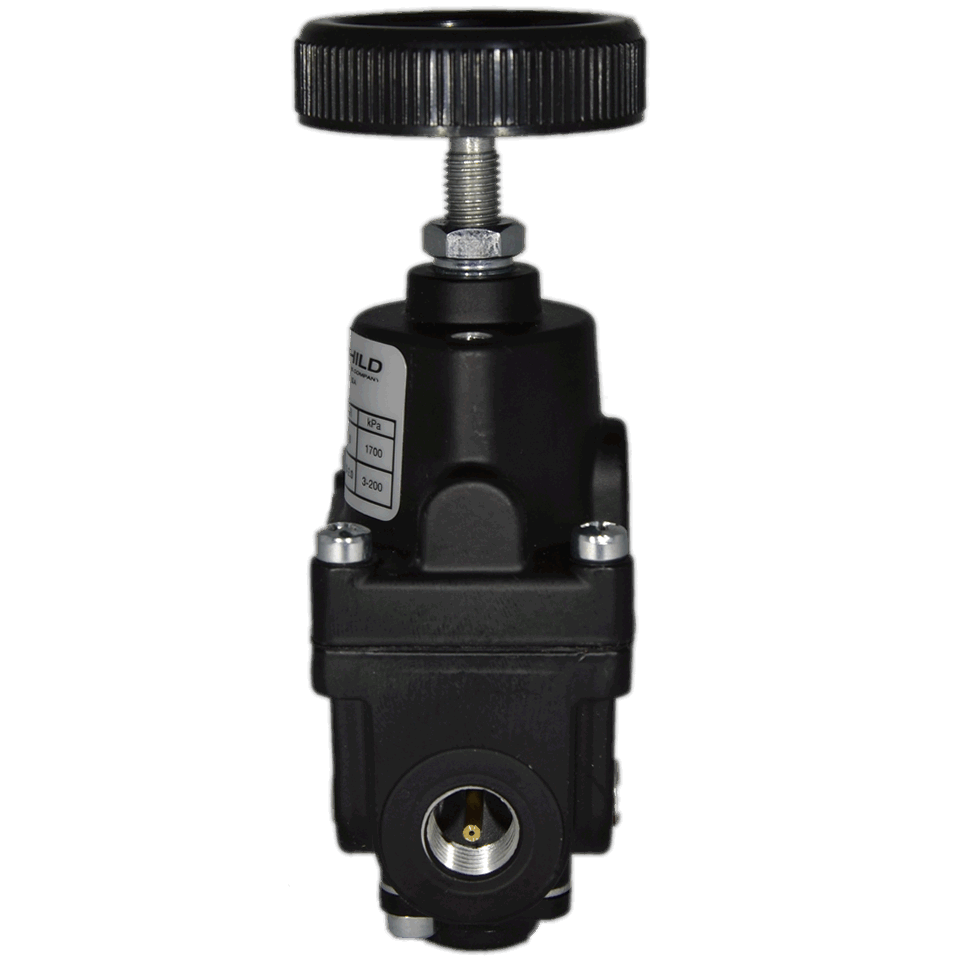

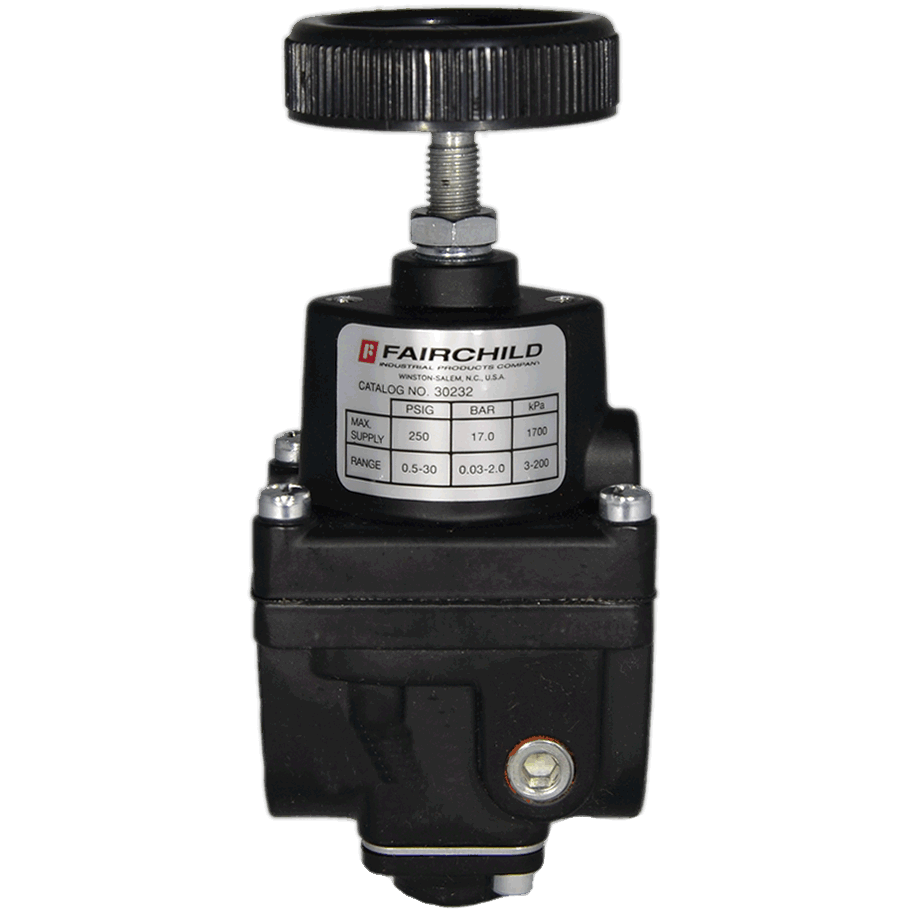

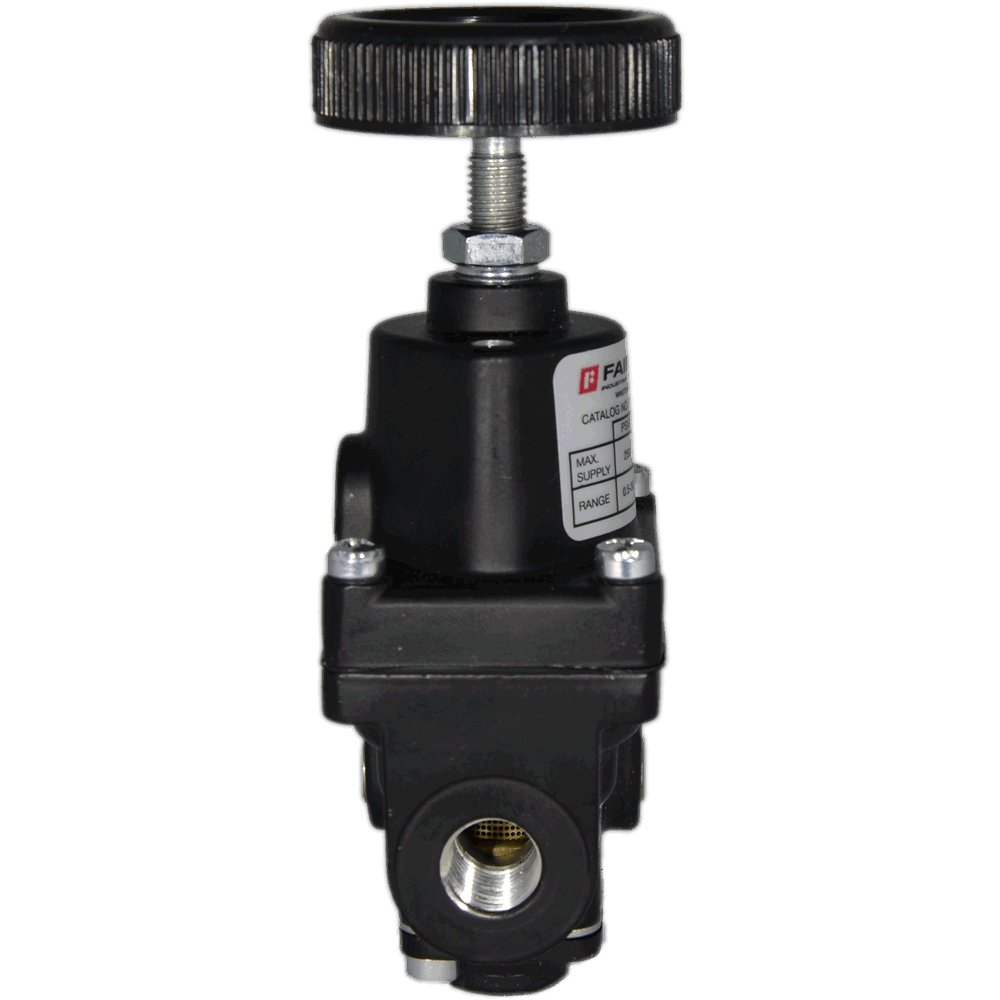

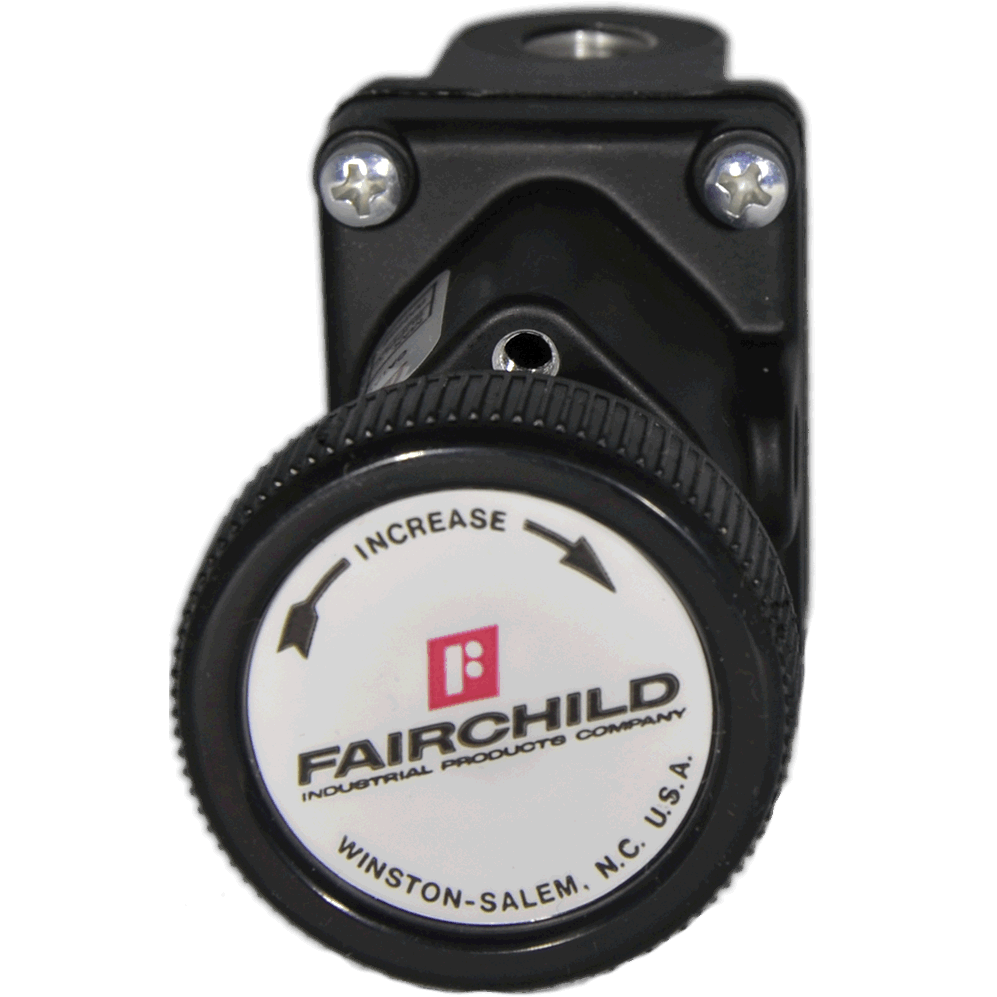

Model 30 Compact Precision Pressure Regulator

Brand: Fairchild Industrial Products
The Rotork Fairchild Model 30 is a compact precision pressure regulator designed for applications that require high performance and accurate process control where space may be limited or you wish to reduce the overall size of your panel or equipment.

Stability of regulated pressure is maintained under varying flow conditions through the use of an aspirator tube which adjusts the supply valve in accordance with the flow velocity.

The Model 30 pneumatic regulator features control sensitivity of 1/4" water column and a balanced supply valve to deliver consistent and reliable precision accuracy to maintain your desired set point regardless of supply pressure changes or conditions.

The Fairchild Model 30 precision regulator will handle a 250 psi, 17 BAR maximum supply pressure and offers five (5) output pressure ranges from 0-2 psi, 0-0.15 BAR, 0-15 kPa up to 2-100 psi, 0.1-7 BAR, 15-700 kPa.

Benefits
  • Excellent for applications where space is tight
  • High accuracy for use in precision applications.
  • Allows the regulator to remain unaffected by supply pressure changes.
  • For use in applications with high flow requirements.
  • Compensates downstream pressure droop under flow conditions.
  • Isolates the diaphragm from the main flow to eliminate hunting and buzzing.
  • Permits you service the Model 30 regulator without removing it from the line.
Features
  • Compact size
  • Control sensitivity of 1/4" water column
  • Pressure Balanced Supply Valve
  • Flow of up to 40 SCFM with 100 psig
  • Aspirator tube design
  • Separate Control Chamber
  • Unit construction
show more
The Rotork Fairchild Model 30 is a compact precision pressure regulator designed for applications that require high performance and accurate process control where space may be limited or you wish to reduce the overall size of your panel or equipment.

Stability of regulated pressure is maintained under varying flow conditions through the use of an aspirator tube which adjusts the supply valve in accordance with the flow velocity.

The Model 30 pneumatic regulator features control sensitivity of 1/4" water column and a balanced supply valve to deliver consistent and reliable precision accuracy to maintain your desired set point regardless of supply pressure changes or conditions.

The Fairchild Model 30 precision regulator will handle a 250 psi, 17 BAR maximum supply pressure and offers five (5) output pressure ranges from 0-2 psi, 0-0.15 BAR, 0-15 kPa up to 2-100 psi, 0.1-7 BAR, 15-700 kPa.

Benefits
  • Excellent for applications where space is tight
  • High accuracy for use in precision applications.
  • Allows the regulator to remain unaffected by supply pressure changes.
  • For use in applications with high flow requirements.
  • Compensates downstream pressure droop under flow conditions.
  • Isolates the diaphragm from the main flow to eliminate hunting and buzzing.
  • Permits you service the Model 30 regulator without removing it from the line.
Features
  • Compact size
  • Control sensitivity of 1/4" water column
  • Pressure Balanced Supply Valve
  • Flow of up to 40 SCFM with 100 psig
  • Aspirator tube design
  • Separate Control Chamber
  • Unit construction
37 models matching criteria
30222
FAIRCHILD Model 30 Midget Precision Regulator, 0-10 psig, 0-70 kPa, 1/4" NPT View More
  • Set Point Range: 0-10 psig, 0-0.7 bar, 0-70 kPa
  • Supply Pressure (Maximum): 250 psig, 17 bar, 1700 kPa
  • Ambient Temperature: -40°F to +200°F (-40°C to +93.3°C)
  • Port Size: 1/4" NPT
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Brass
    • Elastomer: Nitrile on Dacron

9 In Stock
$202.63USD
$14.78 Shipping
30232

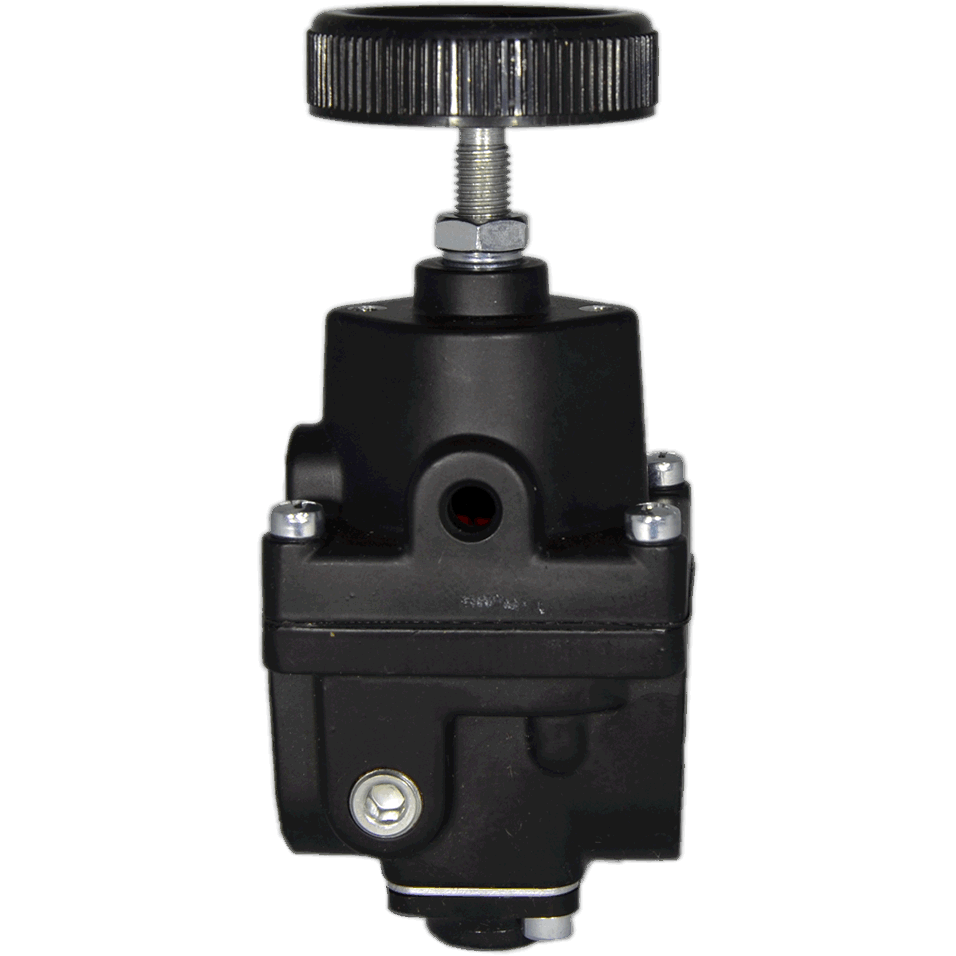

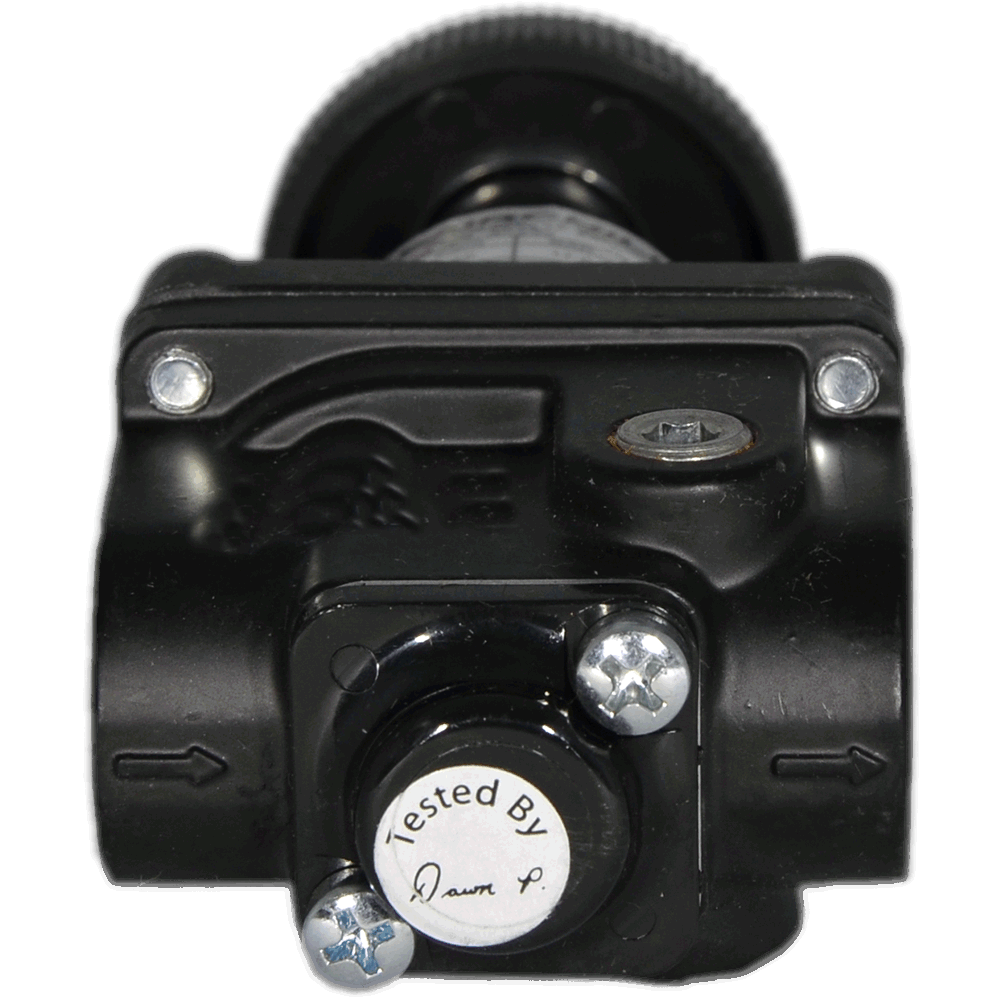

FAIRCHILD Model 30 Midget Precision Regulator, 0.5-30 psig, 3-200 kPa, 1/4" NPT View More
  • Set Point Range: 0.5-30 psig, 0.03-2 bar, 3-200 kPa
  • Supply Pressure (Maximum): 250 psig, 17 bar, 1700 kPa
  • Ambient Temperature: -40°F to +200°F (-40°C to +93.3°C)
  • Port Size: 1/4" NPT
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Brass
    • Elastomer: Nitrile on Dacron

6 In Stock
$198.93USD
$14.78 Shipping
30252
FAIRCHILD Model 30 Midget Precision Regulator, 2-100 psig, 15-700 kPa, 1/4" NPT View More
  • Set Point Range: 2-100 psig, 0.1-7 bar, 15-700 kPa
  • Supply Pressure (Maximum): 250 psig, 17 bar, 1700 kPa
  • Ambient Temperature: -40°F to +200°F (-40°C to +93.3°C)
  • Port Size: 1/4" NPT
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Brass
    • Elastomer: Nitrile on Dacron

5 In Stock
$198.93USD
$14.78 Shipping
30232R
FAIRCHILD Model 30 Midget Precision Regulator, 0.5-30 psig, 3-200 kPa, 1/4" NPT, Plunger Operated View More
  • Set Point Range: 0.5-30 psig, 0.03-2 bar, 3-200 kPa
  • Supply Pressure (Maximum): 250 psig, 17 bar, 1700 kPa
  • Ambient Temperature: -40°F to +200°F (-40°C to +93.3°C)
  • Port Size: 1/4" NPT
  • Options:
    • Plunger Operated
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Brass
    • Elastomer: Nitrile on Dacron
4 In Stock
$406.73USD
$14.78 Shipping
30252N
FAIRCHILD Model 30 Midget Precision Regulator, 2-100 psig, 15-700 kPa, 1/4" NPT, Non-Relieving View More
  • Set Point Range: 2-100 psig, 0.1-7 bar, 15-700 kPa
  • Supply Pressure (Maximum): 250 psig, 17 bar, 1700 kPa
  • Ambient Temperature: -40°F to +200°F (-40°C to +93.3°C)
  • Port Size: 1/4" NPT
  • Options: Non-Relieving
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Brass
    • Elastomer: Nitrile on Dacron

2 In Stock
$232.95USD
$14.78 Shipping
30253
FAIRCHILD Model 30 Midget Precision Regulator, 2-100 psig, 15-700 kPa, 3/8" NPT View More
  • Set Point Range: 2-100 psig, 0.1-7 bar, 15-700 kPa
  • Supply Pressure (Maximum): 250 psig, 17 bar, 1700 kPa
  • Ambient Temperature: -40°F to +200°F (-40°C to +93.3°C)
  • Port Size: 3/8" NPT
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Brass
    • Elastomer: Nitrile on Dacron
1 In Stock
$198.93USD
$14.78 Shipping
30222S
FAIRCHILD Model 30 Midget Precision Regulator, 0-10 psig, 0-70 kPa, 1/4" NPT, Screw Adjust View More
  • Set Point Range: 0-10 psig, 0-0.7 bar, 0-70 kPa
  • Supply Pressure (Maximum): 250 psig, 17 bar, 1700 kPa
  • Ambient Temperature: -40°F to +200°F (-40°C to +93.3°C)
  • Port Size: 1/4" NPT
  • Options:
    • Screwdriver Adjust

  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Brass
    • Elastomer: Nitrile on Dacron

1 In Stock
$202.63USD
$14.78 Shipping
30242S
FAIRCHILD Model 30 Midget Precision Regulator, 1-60 psig, 1/4" NPT, Screw Adjust View More
  • 302: Model 30 Midget Precision Regulator
  • 4: 1-60 psig, 0.1-4 bar, 10-400 kPa, Pressure Range
  • 2: 1/4" NPT Pipe Size
  • S: Screwdriver Adjust
  • Supply Pressure (Maximum): 250 psig, 17 bar, 1700 kPa
  • Ambient Temperature: -40°F to +200°F (-40°C to +93.3°C)
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Brass
    • Elastomer: Nitrile on Dacron

8 - 12 days
$173.05USD / Each
$14.78 Shipping
30242
FAIRCHILD Model 30 Midget Precision Regulator, 1-60 psig, 10-400 kPa, 1/4" NPT View More
  • Set Point Range: 1-60 psig, 0.1-4 bar, 10-400 kPa
  • Supply Pressure (Maximum): 250 psig, 17 bar, 1700 kPa
  • Ambient Temperature: -40°F to +200°F (-40°C to +93.3°C)
  • Port Size: 1/4" NPT
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Brass
    • Elastomer: Nitrile on Dacron
6 - 8 weeks
$198.93USD
$14.78 Shipping
30253N
FAIRCHILD Model 30 Midget Precision Regulator, 2-100 psig, 15-700 kPa, 3/8" NPT, Non-Relieving View More
  • Set Point Range: 2-100 psig, 0.1-7 bar, 15-700 kPa
  • Supply Pressure (Maximum): 250 psig, 17 bar, 1700 kPa
  • Ambient Temperature: -40°F to +200°F (-40°C to +93.3°C)
  • Port Size: 3/8" NPT
  • Options: Non-Relieving
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Brass
    • Elastomer: Nitrile on Dacron

8 - 12 days
$199.67USD / Each
$14.78 Shipping

Specifications

Actuator Type

  • Knob Adjust
  • Plunger Operated
  • Screwdriver Adjust
  • Tamper-Proof

Ambient Temperature Range

  • -40° to 93° C (-40° to 200° F)

BSP Connection

  • 1/4" BSPP Female
  • 1/4" BSPT Female
  • 3/8" BSPP Female
  • 3/8" BSPT Female

Elastomers

  • Fluorocarbon (Viton)
  • Nitrile on Dacron
  • Silicone

Enclosure, Body Material

  • Aluminum

Environmental Protection

  • Acceptable for use in Zones 1 & 2 for Gas Atmosphere, Groups IIA & IIB & Zones 21 & 22 for Dust Atmospheres

Exhaust Capacity - Relieving Units Only

  • 2 scfm
  • 2.0 scfm (3.4 m³/hour)
  • 3.4 m³/hour

Flow Capacity

  • 40 scfm
  • 40 scfm (68 m³/hour) at psig: 100 (bar: 7, kPa: 700) Supply & psig: 20 (bar: 1.5, kPa: 150) Set Point
  • 68 m³/hour

Media

  • Compressed Air
  • Gas

Mounting

  • None

NPT Connection

  • 1/4" NPT Female
  • 3/8" NPT Female

Output Options

  • None

Pressure Range

  • bar: 0 to 1.36
  • bar: 0 to 7
  • bar: 0.034 to 2.04
  • bar: 0.068 to 4.08
  • bar: 0.136 to 10.20
  • kPa: 0 to 137
  • kPa: 0 to 700
  • kPa: 13.6 to 1,020
  • kPa: 3.4 to 204
  • kPa: 6.8 to 408
  • psi: 0.5 to 30
  • psig: 0 to 100
  • psig: 0 to 20
  • psig: 1 to 60
  • psig: 2 to 150

Relief

  • Low Bleed
  • Low Flow
  • Non-Relieving
  • Relieving

Sensitivity

  • 1/4" WC (0.64 cm)

Supply Pressure - Maximum

  • bar: 17
  • kPa: 1,700
  • psig: 250

Supply Pressure Effect

  • Less than 0.014 bar
  • Less than psi: 0.002 (bar: 0.00014, kPa: 0.14)
  • Less than psig: 0.2 (bar: 0.014, kPa: 1.4)
  • Less than psig: 0.2 (bar: 0.014, kPa: 1.4) for psig: 100 (bar: 7, kPa: 700) Change in Supply Pressure

Trim Material

  • Brass

Vent

  • Straight
