Images are representations only.

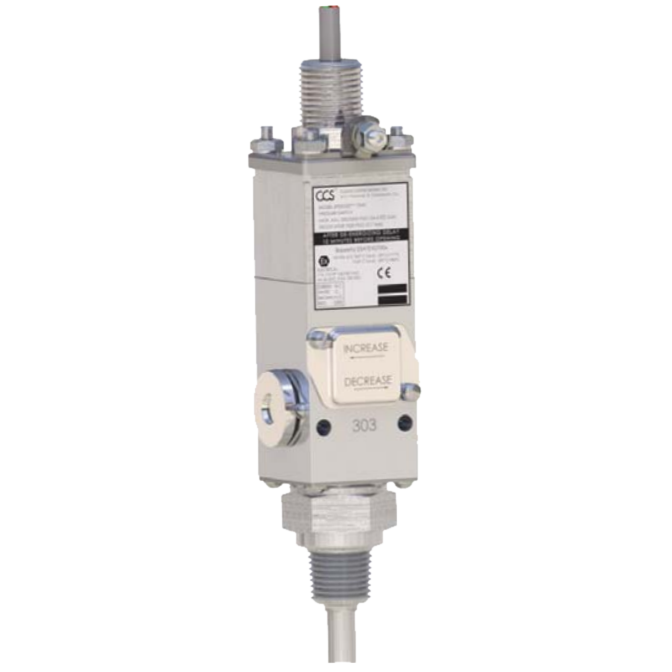

6905TE-7042 Series Temperature Switch

Brand: Custom Control Sensors
Features
  • Adjustable Set Point Range:
    • Increasing: 20° to 405° F, -7° to 207° C
    • Decreasing: 0° to 398° F, -18° to 203° C
  • Deadband: Approximately
    • At Bottom of Range: 20° F, 11° C
    • At Top of Range: 5° F, 4° C
  • Probe Temperature (Maximum): 200° to 500° F, 93° to 260° C
  • Wetted Materials:
    • Temperature Probe: 300 Stainless Steel
  • Relay: SPDT or DPDT
  • ATEX
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • CE Mark, NACE
show more
Features
  • Adjustable Set Point Range:
    • Increasing: 20° to 405° F, -7° to 207° C
    • Decreasing: 0° to 398° F, -18° to 203° C
  • Deadband: Approximately
    • At Bottom of Range: 20° F, 11° C
    • At Top of Range: 5° F, 4° C
  • Probe Temperature (Maximum): 200° to 500° F, 93° to 260° C
  • Wetted Materials:
    • Temperature Probe: 300 Stainless Steel
  • Relay: SPDT or DPDT
  • ATEX
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • CE Mark, NACE
5 models matching criteria
6905TE12-7042
CCS DUAL-SNAP Temperature Switch, Haz. Area, 1/2" NPT 300 SST Direct Mt., SST Body View More
  • Adjustable Set Point Range:
    • Increasing: +20°F to + 120°F, -7°C to +49°C
    • Decreasing: 0°F to +113°F, -18°C to +92°C
    • Deadband: Approximately
      • At Bottom of Range: 20°F, 11°C
      • At Top of Range: 5°F, 4°C
    • Probe Temperature (Maximum): +200°F, +93°C
    • Wetted Materials:
      • Temperature Probe: 300 Stainless Steel
    • Relay: SPDT
    • ATEX
      • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
    • CE Mark, NACE
    Contact For Inventory
    6905TE14-7042
    CCS DUAL-SNAP Temperature Switch, Haz. Area, 1/2" NPT 300 SST Direct Mt., SST Body View More
    • Adjustable Set Point Range:
      • Increasing: +80°F to +205°F, +27°C to +96°C
      • Decreasing: +60°F to +198°F, +16°C to +92°C
      • Deadband: Approximately
        • At Bottom of Range: 20°F, 11°C
        • At Top of Range: 5°F, 4°C
      • Probe Temperature (Maximum): +300°F, +149°C
      • Wetted Materials:
        • Temperature Probe: 300 Stainless Steel
      • Relay: DPDT
      • ATEX
        • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
      • CE Mark, NACE
      Contact For Inventory
      6905TE16-7042
      CCS DUAL-SNAP Temperature Switch, Haz. Area, 1/2" NPT 300 SST Direct Mt., SST Body View More
      • Adjustable Set Point Range:
        • Increasing: +185°F to +315°F, +85°C to +157°C
        • Decreasing: +165°F to +308°F, +75°C to +153°C
        • Deadband: Approximately
          • At Bottom of Range: 20°F, 11°C
          • At Top of Range: 5°F, 4°C
        • Probe Temperature (Maximum): +400°F, +204°C
        • Wetted Materials:
          • Temperature Probe: 300 Stainless Steel
        • Relay: SPDT
        • ATEX
          • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
        • CE Mark, NACE
        Contact For Inventory
        6905TE18-7042
        CCS DUAL-SNAP Temperature Switch, Haz. Area, 1/2" NPT 300 SST Direct Mt., SST Body View More
        • Adjustable Set Point Range:
          • Increasing: +185°F to +315°F, +85°C to +157°C
          • Decreasing: +165°F to +308°F, +75°C to +153°C
          • Deadband: Approximately
            • At Bottom of Range: 20°F, 11°C
            • At Top of Range: 5°F, 4°C
          • Probe Temperature (Maximum): +400°F, +204°C
          • Wetted Materials:
            • Temperature Probe: 300 Stainless Steel
          • Relay: SPDT
          • ATEX
            • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
          • CE Mark, NACE
          Contact For Inventory
          6905TEM14-7042
          CCS DUAL-SNAP Temperature Switch, Haz. Area, 1/2" NPT 300 SST Direct Mt., SST Body, DPDT View More
          • Adjustable Set Point Range:
            • Increasing: +80°F to +205°F, +27°C to +96°C
            • Decreasing: +60°F to +198°F, +16°C to +92°C
            • Deadband: Approximately
              • At Bottom of Range: 20°F, 11°C
              • At Top of Range: 5°F, 4°C
            • Probe Temperature (Maximum): +300°F, +149°C
            • Wetted Materials:
              • Temperature Probe: 300 Stainless Steel
            • Relay: DPDT
            • ATEX
              • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
            • CE Mark, NACE
            Contact For Inventory

            Specifications

            Adjustment Type

            • Field Adjustable

            Approvals & Certifications

            • ATEX
            • CE
            • EMC
            • GOST-R
            • GOST-U
            • LVD
            • RoHS
            • RTN

            Connectors

            • M20 Explosion-proof Electrical Conduit

            Deadband, Approximate - Bottom of Range

            • 11° C (52° F)
            • -7° C (20° F)

            Deadband, Approximate - Top of Range

            • -15° C (5° F)
            • 4° C (39° F)

            Electrical - Free Leads

            • 18" (45 cm) Free Leads

            Electrical Assembly

            • 316 Stainless Steel
            • Hermetic Seal

            Electrical Connectors

            • 1/2" NPT Male

            Electrical Contacts

            • Gold
            • Silver

            Electrical Enclosure Certification

            • ATEX - Certificate No. Baseefa03-ATEX-0700X. Baseefa Certified for Potentially Explosive Atmospheres Electrical Assembly Series. in Compliance with EN 60079-0: 2006, EN 60079-1: 2007, EN 61241-0: 2006, & EN 61241-1: 2004.

            Enclosure, Body Material

            • Stainless Steel

            Environmental Protection

            • IP54
            • IP66
            • IP67
            • NEMA 13
            • NEMA 4
            • NEMA 7
            • NEMA 9

            Maximum Sensor, Probe Temperature

            • 93° to 260° C (200° to 500° F)

            NACE & NIST

            • NACE MR-0175:2003

            NPT Connection

            • 1/2" NPT Male

            Operating Temperature

            • -40° to 86° C (-40° to 187° F)

            O-Ring Material

            • None

            Proof Pressure

            • bar: 103.4
            • kPa: 10,342
            • psig: 1,500

            Sensor, Probe Material

            • 300 Stainless Steel

            Set Point - Decreasing

            • 1° to 100° C (34° to 212° F)
            • 101° to 250° C (214° to 482° F)
            • -18° to 203° C (0° to 397° F)
            • -50° to 0° C (-58° to 32° F)

            Set Point - Increasing

            • 1° to 100° C (34° to 212° F)
            • 101° to 250° C (214° to 482° F)
            • -50° to 0° C (-58° to 32° F)
            • -7° to 207° C (20° to 405° F)

            System Pressure

            • bar: 86
            • kPa: 8,618
            • psig: 1,250
