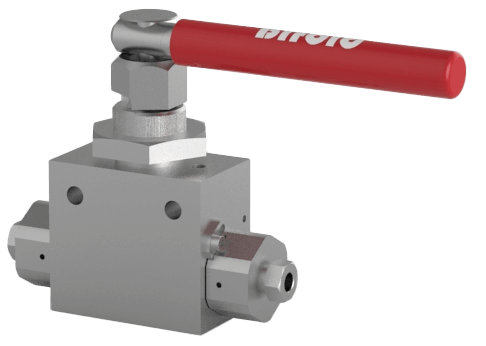

MPBF 2-Way Floating Style Ball Valves

Brand: Bifold Group
The Bifold range of medium pressure floating ball valves are an economical, 2-way solution for most on/off liquid and gas service applications up to 10,000 psi / 690 bar. They are available in a wide range of seal arrangements and can be manufactured from exotic materials for extreme environments.
Features
  • Low operating torque
  • Optional handle locking device that does not jeopardise through panel mounting
  • Bi-Directional straight through flow path minimising pressure drop
  • High Tensile 316L CW stainless steel bodies as standard
  • PEEK seats as standard
  • NACE MR-01-75 / ISO 15156 compliant materials of construction are available up on request
show more
The Bifold range of medium pressure floating ball valves are an economical, 2-way solution for most on/off liquid and gas service applications up to 10,000 psi / 690 bar. They are available in a wide range of seal arrangements and can be manufactured from exotic materials for extreme environments.
Features
  • Low operating torque
  • Optional handle locking device that does not jeopardise through panel mounting
  • Bi-Directional straight through flow path minimising pressure drop
  • High Tensile 316L CW stainless steel bodies as standard
  • PEEK seats as standard
  • NACE MR-01-75 / ISO 15156 compliant materials of construction are available up on request

Specifications

Brand

Applications

  • Chemical Injection
  • Gas & Liquid Services
  • General Industrial Applications
  • Hydraulic Control Panels
  • Hydrostatic Testing Equipment

Approvals & Certifications

  • ISO 15156

Bore Size

  • 0.19" (5 mm)
  • 0.39" (10 mm)

Enclosure, Body Material

  • High Tensile 316L CW Stainless Steel

Materials of Construction

  • 6MO / 254MO Stainless Steel
  • Duplex UNS S31803
  • Hastelloy® C-276
  • Inconel® 625 UNS N06625
  • Inconel® 825 UNS N08825
  • Monel® 400 UNS N04400
  • Nickel 200 UNS N02200
  • Super Duplex UNS S32750 / 32760
  • Titanium Grade 2 UNS R50400

Media

  • Liquids & Gases

Mounting

  • Panel

NACE & NIST

  • Nace MR-0175

Orifice Size

  • 0.11 to 0.31" (2.80 to 7.90 mm)

O-Ring Material

  • Endura V91A
  • HNBR
  • Nitrile
  • Viton (80 Shore)

Seat / Seal Material

  • Seat: PEEK

Supply Pressure - Maximum

  • psi: 10,000 (kPa: 68,950, bar: 689)

Temperature Range

  • -20° to 180° C (-4° to 356° F) - Viton (80 Shore)
  • -25° to 160° C (-13° to 320° F) - HNBR
  • -30° to 120° C (-22° to 248° F) - Nitrile
  • -45° to 225° C (-49° to 437° F) - Endura V91A

Tube Inlet

  • 1" Tube
  • 1/4" Tube
  • 3/4" Tube
  • 3/8" Tube
  • 9/16" Tube

Tube Outlet

  • 1" Tube
  • 1/4" Tube
  • 3/4" Tube
  • 3/8" Tube
  • 9/16" Tube

Valve Type

  • Manual
